Sound Insulation Wood Acostic Board Sound Dampening Panels

Sound Insulation Wood Acostic Board Sound Dampening Panels thumbnail-1
Sound Insulation Wood Acostic Board Sound Dampening Panels thumbnail-2
Sound Insulation Wood Acostic Board Sound Dampening Panels thumbnail-3

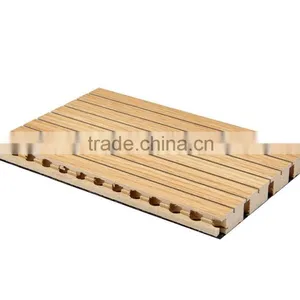

Sound Insulation Wood Acostic Board Sound Dampening Panels thumbnail-4
Sound Insulation Wood Acostic Board Sound Dampening Panels thumbnail-5
Sound Insulation Wood Acostic Board Sound Dampening Panels thumbnail-6
Sound Insulation Wood Acostic Board Sound Dampening Panels photo-1
Sound Insulation Wood Acostic Board Sound Dampening Panels photo-2
Sound Insulation Wood Acostic Board Sound Dampening Panels photo-3

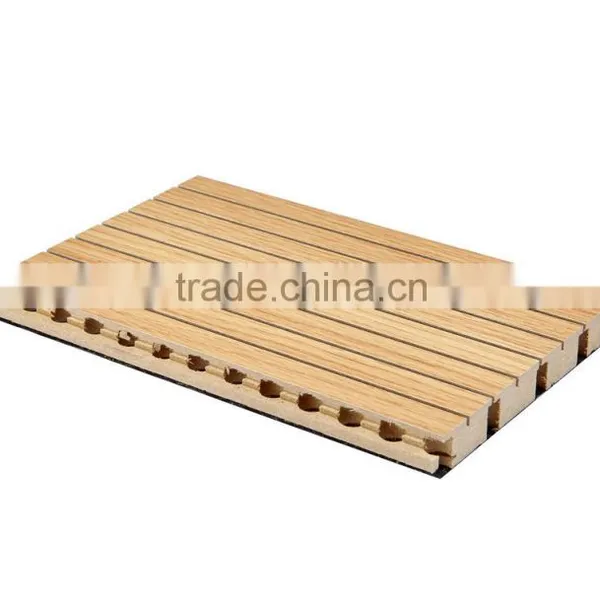

Sound Insulation Wood Acostic Board Sound Dampening Panels photo-4
Sound Insulation Wood Acostic Board Sound Dampening Panels photo-5
Sound Insulation Wood Acostic Board Sound Dampening Panels photo-6
US$ 8 - 40 MOQ: 100 Square Meters
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Guangzhou Leeyin
Model Number:
13-3,14-2,28-4,59-5
Contact Supplier Request Quote Chat Now
Guangzhou Liyin Building Material Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Huangpu/Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name Guangzhou Leeyin
Model Number 13-3,14-2,28-4,59-5
Acoustic Panel Type Wooden Acoustic Panels

Production Description

Leeyin wooden grooved acoustic panel is a one of the most advanced and efficient absorption products available today for reducing reverberant sound levels in many place ,such as gymnasiuns,hotels ,schools and studios .they are developed based on acoustical theories ,and manufactured by unique equipments and technologies .thanks to the ingenious designs and all kinds of decorative surfaces ,these acoustic panels are not only easy to install ,but also visually attractive .

Wooden Grooved Acoustic Panel
1.Structure Basic Material ,Finish&Back Finish
2.Basic Material E1 MDF,FR MDF ,MgO Combination Board etc.
2. Front Finish Melamine ,Natural Wood Veneer,Paint,etc.
3. Back Finish Black Acoustic Felt
4.Standard  Size 2440*128,2440*192mm,etc.
5.StandardThickness 12/15/18mm
6. Standard Pattern 13-3,14-2,28-4,59-5,etc.
7. Installation 1.Lightweight steel keel system2.Wooden battern systern
8. Fire rate can meet China Standard Class B1 and BS476 Part 7 Class 1
9. Eco level can meet China and EU Standard Class E1
10.Applications gymnasium,hotels,exhibition centers,schools,studio etc.
11.Is customized can be Customized



Sound Absorption Coefficient

sound insulation wood acostic board sound dampening panels

Installtion Methods

A)Preparation
1.The place of installation must be dry,with the lowest temperature no less than 10 degrees celsius.
2.the acoustic panels to be installed must be placed in the place of installation for at least 48h in order to adapt the indoor environment.
3.After installation ,the largest humidity changing rate of the place of installation should be between 40%-60%.
4.The distance between each wood keel must be less than 500mm and that between each light steel keel should no more than 600mm.
B)Installation
1.Confirm the place of installation ,determine the horizontal and vertical lines and the reserved measurements for the electric wire socket ,pipes.etc.
2.Calculate the actual construction measurements and cut the part of acoustic panels if needed.
3.Start to install and follow the rules:from left to right,from bottom too top.for horizontally installation.make the grooves up;for the vertical installation,make the tougues on the right.for real wood veneer acoustic panels that have requirements on the direction of the stripes,the panels should be installed according to the pre-marked sequence numbers.
C)Installation system
1.Lightweight steel keel system
2.Wooden batten systemsound insulation wood acostic board sound dampening panels






Packing &Shipping



  1.Packaging: Carton (9pcs packed into one carton and crapped around pearl wool) .



  2.Delievery time: Within 2 weeks.



  3.All of our exporting products are packed in cartons or customized package.



  4.Our trade term is FOB ,and products shipped by sea transportation.sound insulation wood acostic board sound dampening panels



Company Information

Guangzhou Leeyin Material Building Material Co.,Ltd., together with its subcompany Foshan Blue Ocen Archetectural Acoustic MaterialCo.,Ltd.,was established in March 2006.The head office locates in the central area of Guangzhou Pearl River Delta and the factory is in Foshan .Now Leeyin Group ,with its factory more than10,000 square meters,has more than 200 employees and has a strong production capacity of one million square meters acoustic materials annually .Since 2010,our company started expending the products from acoustic materials to other building materials.

sound insulation wood acostic board sound dampening panels
