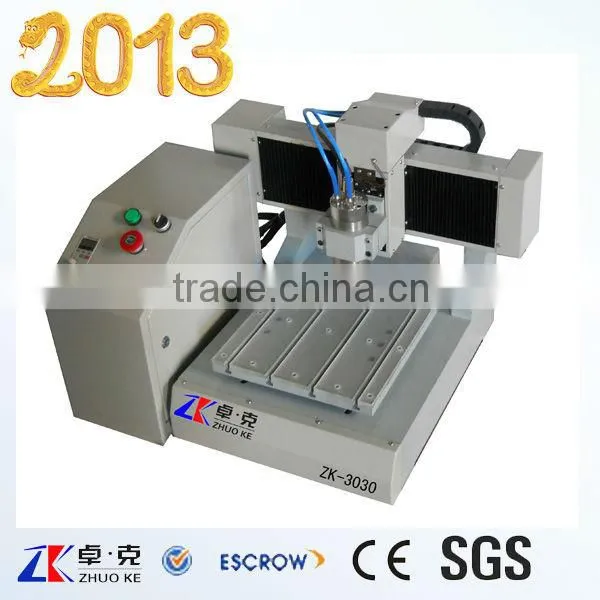

China PCB Pcb Drilling Machine 300*300mm

Name: China PCB Pcb Drilling Machine 300*300mm
Brand: Zhuoke
SKU: 123089531

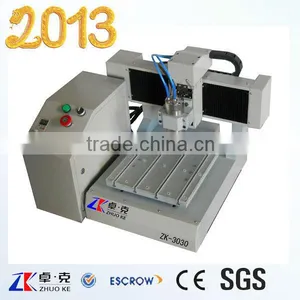

China PCB Pcb Drilling Machine 300*300mm thumbnail-1

China PCB Pcb Drilling Machine 300*300mm photo-1

US$ 1,700 - 2,000 MOQ: 1 Set

Key Specifications

Get Latest Price

Condition:

New

Place of Origin:

Shandong, China

Brand Name:

Zhuoke

Contact Supplier Request Quote Chat Now

Jinan Zhuoke CNC Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao Port Or according to your need

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Place of Origin Shandong, China

Brand Name Zhuoke

Model Number ZK-3030

Type Other, Desktop

CNC or Not CNC

Voltage AC 220V /AC 110V, AC 220V/110V

Power(W) 1.5kw

Dimension(L*W*H) 850*800*800mm

Weight 96kg

Certification CE

Warranty 1 year

China CNC PCB Milling Drilling Machine

(300*300mm)(ZK-3030) OEM Available

PCB CNC Router machine introduction:

PCB cnc machines can quickly manufacture Printed circuit board samples, shorten the development time, and save the development cost, during the experiment, it has great security finishing the PCB samples .Our pcb cnc machine is portable , with small size , has all the function of PCB drilling, PCB milling ,the line sculpture, appearance cutting, the line width isolation set, engraving and cutting , breakpoint continuingly, edge milling and different hole drilling , and other functions. It is your best chose to make PCB samples. During the engraving process, the processing depth and speed is controlled by computer, no need by the manual adjustment and try again and again. Our PCB cnc machine is widely used in the colleges and universities electronic related, electronic development companies, military industry, office, government, and other fields

Technical Parameters :

Model	ZK-3030PCB Machine
Drive mode	High precision ballscrew lead
XY-Axis working area	300*300mm
Minimum processing line diameter	6-8mil
Minimum processing line distance	8mil
Drive mode	3-axis Step motor
Milling speed	5000mm/min
Spindle power	800w water cooled spindle motor
Line isolation	Yes
Processing board	Single/double board
Drive motor	Step motor
Compatible software	Protel99 ,PowerPCB
Operation system	WindowsXP
Command format	G code,U00(Type3),.nc, mmg(ArtCAM), plt
Power supply	AC220V 50/60HZ Or AC110V 50/60HZ
Control system	NcStudio control system

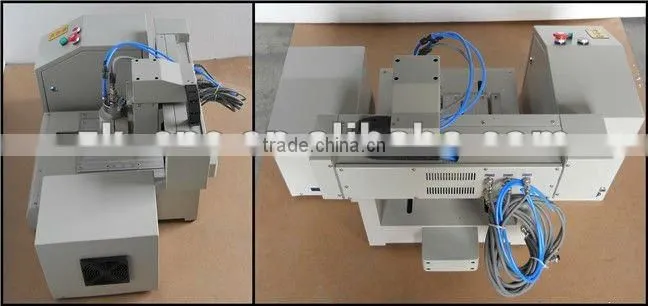

Reference Machine Photos :

Machine advantage:

1. The PCB machine can drill and mill double pcb panel, and drilling process is quite simple.

2. Drilling and milling speed can be adjustable, can engrave a relatively thin lines, and carving process can temporarily stop.

3. Has the breakpoint renewal carving and regional sculpture features.

4. During the carving process ,you can adjust the Z axis altitude, which can avoid not carving the circuit board because of substrate gravamen.

5. Has the function of milling plane, substrates in after many drilling and milling plane after carving can through to adjust the level of the substrate, and still can put the substrate to get rid of the holes, facilitate double panel orientation.

6. Spindle motor for a 800 W high power water-cooled PCB special frequency conversion motor, 1.5 KW frequency converter, long service life, work and more relaxed

7. Application software, machine adopted international general G code processing file so that many such as PowerPCB, such as Protel software, all can be used in the circuit design, more strong adaptability.

8. Our pcb machine can estimate the processing time, to avoid a long time of meaningless waiting

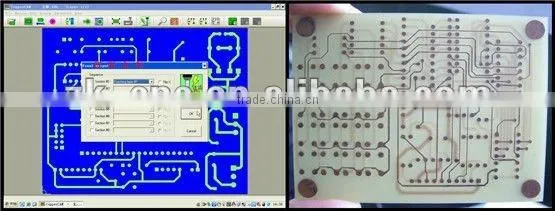

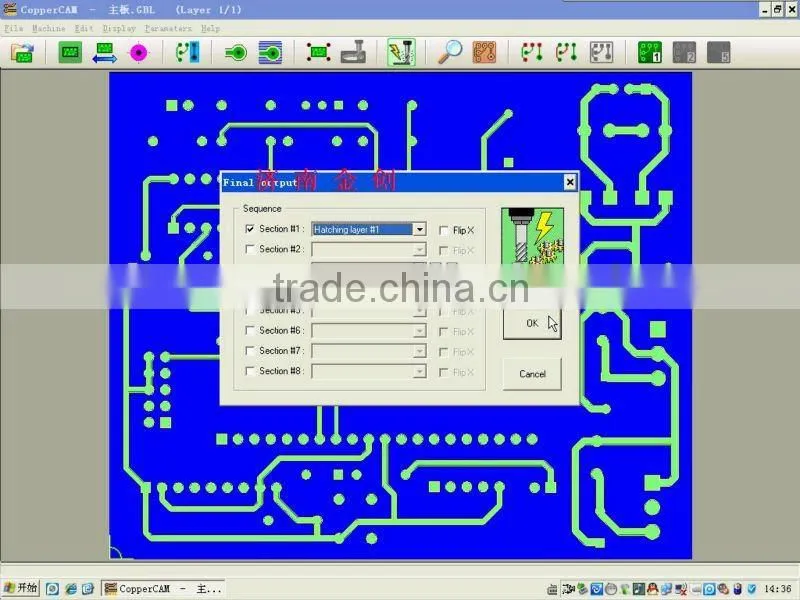

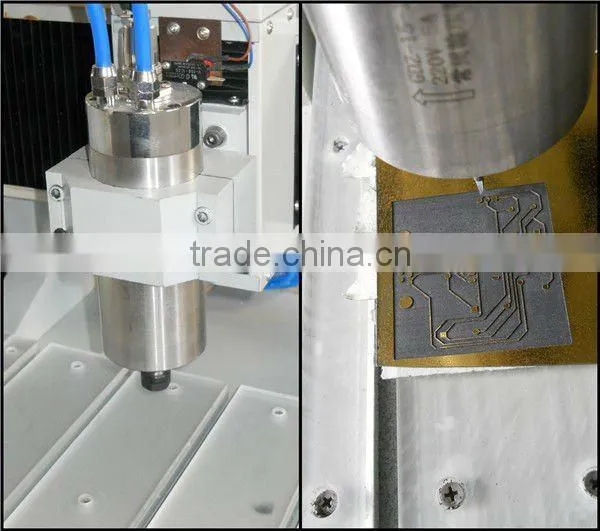

Working Samples :

ANY QUESTIONS, JUST FEEL FREE TO CONTACT US!
