Specifications
desktop pcb cnc router 60601,1.5KW water cooling spindle
2, PCI Nc-studio controller
3, PCB cutter

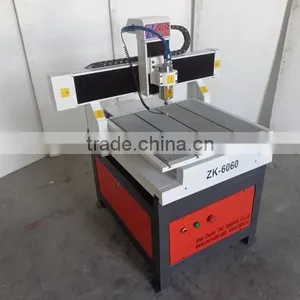

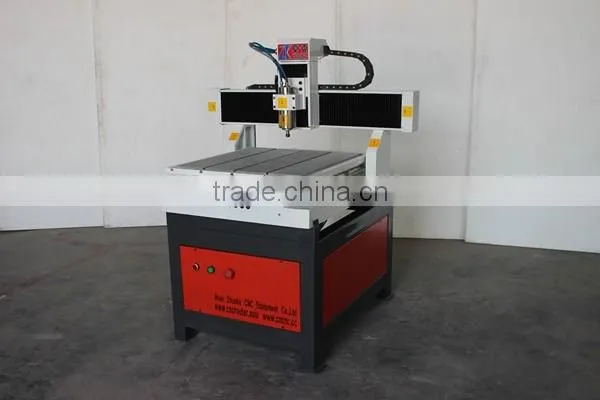

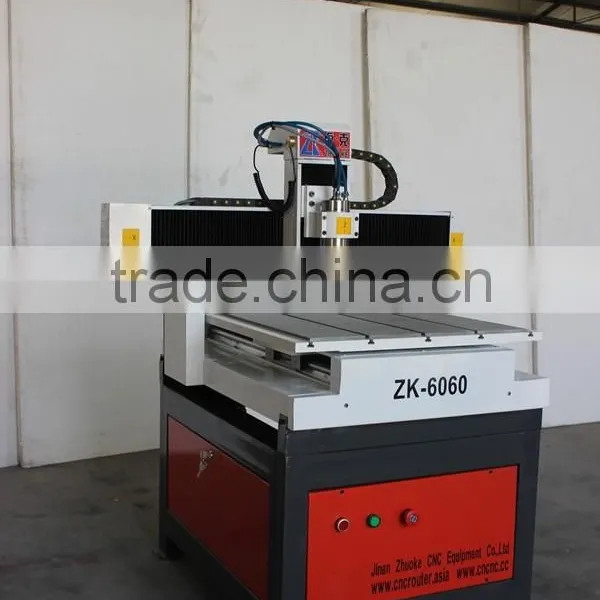

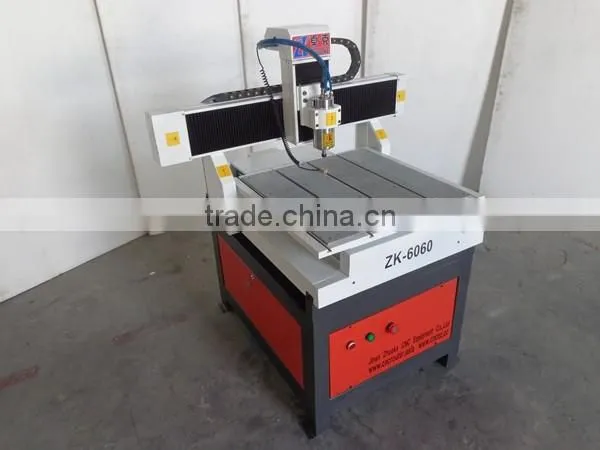

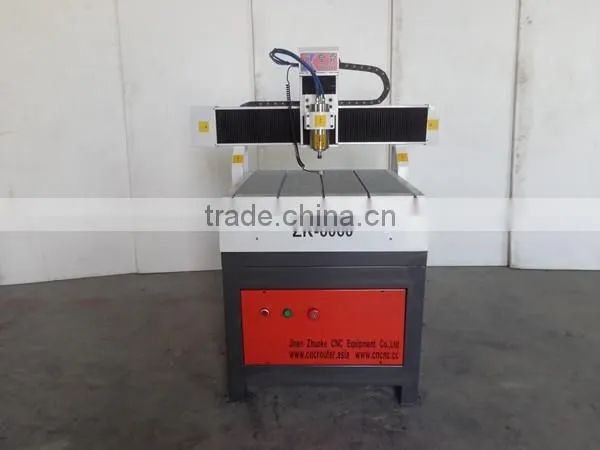

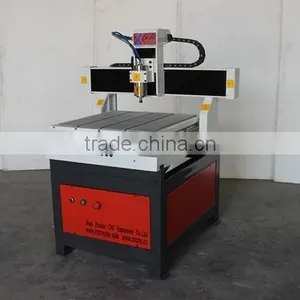

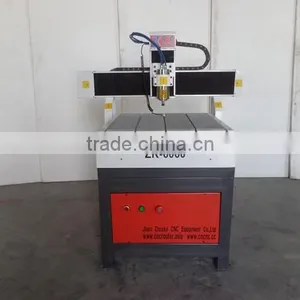

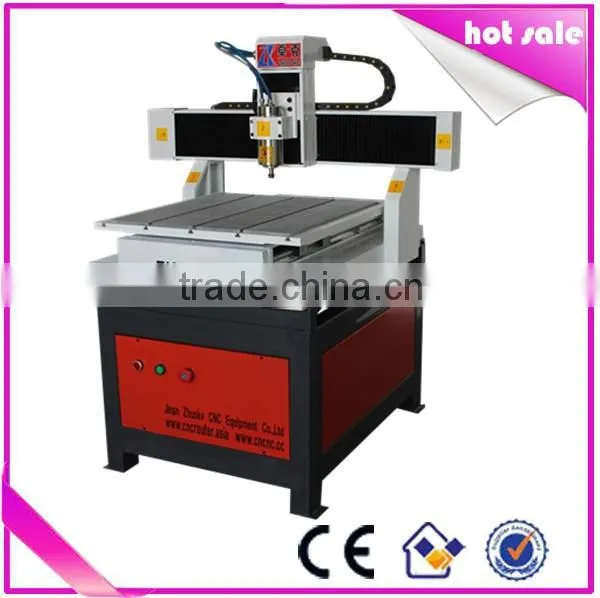

Good price desktop pcb cnc router 6060 600*600*120mm
Application of desktop pcb cnc router 6060 :
# In order to shorten the research and design time and see results as soon as possible,
# The time of product design developed is very long if sent to the printed version of plant production, small trial is high cost and temporary modification of the printed version is also very troublesome.
# The printed version of the production of other methods are very cumbersome and the printed version is not standardized.
# This machine with drilling, carving, line isolation, width setting, the whole map and designated areas engraving, milling and shaped holes and other functions,
# Use12 minutes to make a simple circuit board ,20 minutes to produce a very complex circuit board.
# With environmental performance, using physical engraving, free corrosion, avoid environment pollution, it is the most powerful, cost-effective CNC engraving machine in the PCB industry.

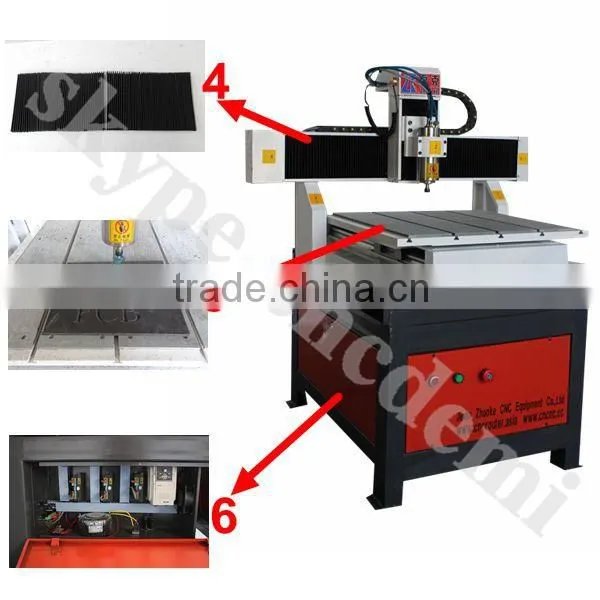

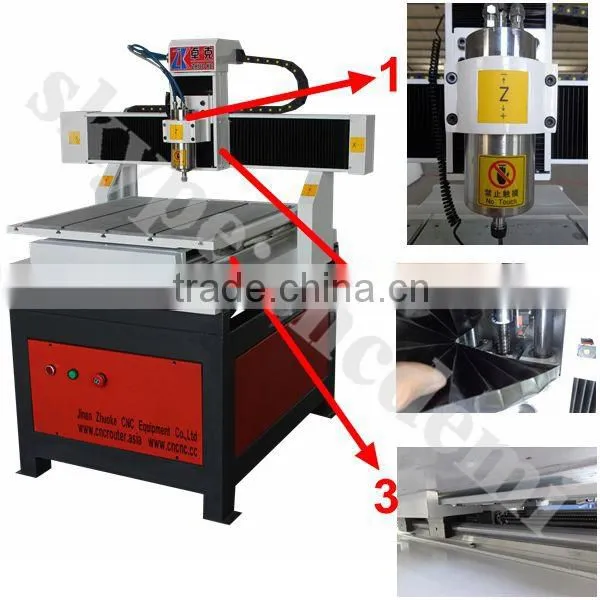

Machine's feature of desktop pcb cnc router 6060 :
1, 1.5KW China water cooling spindle, more powerful and not easy to break tools.
2, X,Y,axies Taiwan TBI ball screw model #1605,Z axies Taiwan TBI ball screw model #2510.
3, BSR liner round rail ,bear heavy weight ,economical price.
4, Dust proof , prevent dust.
5, T-slot working table ,equipted with 6 clamps ,can fix the materials very tight.

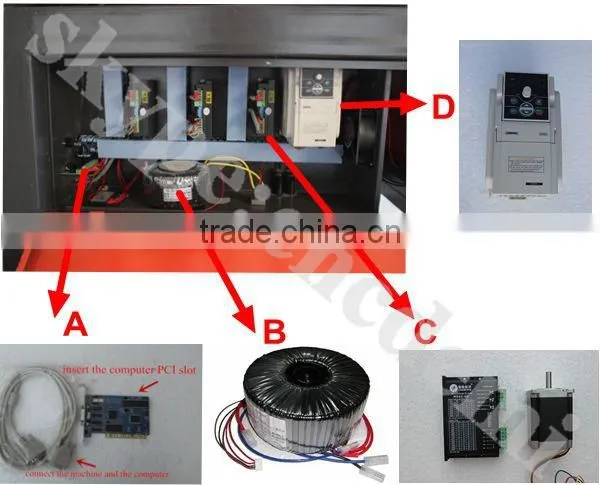

6, Inner control carbinet , save the space ,and easy check.
# Full accessories offer to you .
# PCB milling ,engraving,drilling cutters offer to you.
Parameter of desktop pcb cnc router 6060 :
Items |
Parameter |
Spindle power |
1.5 KW water cooling spindle ER 11 3.175mm, 4mm, 6mm |
X,Y,Z axies working size |
600*600*120mm |
Spindle speed |
0-24000rpm/min |
Empty travelling speed |
0-25000mm/min |
Cutting speed |
0-8000mm/min |
Engraving speed |
0-10000mm/min |
Machine accuracy |
0.03mm |
Resetting accuracy |
0.05mm |
Diagonal error |
0.5mm |
Resolution ratio |
0.005mm |
Moving method |
Tale moving |
Machine’s structure |
Whole cast Aluminum |
Working table |
Aircraft aluminium T slot with PVC layer |
Guide rail |
BSR liner round rail |
X,Y,Z axies Transmission |
X,Y, Z axies Taiwan TBI ball screw |
| |
Driving system |
Stepper motor and leadshine driver |
Control system |
PCI Nc-Studio |
(Options: Mach3 ,DSP offline) | |
Designing software |
Artcam 2008 |
Carving Instructions |
G code *Uoo *mmg *plt *HPGL |
Voltage |
220V ,50/60Hz,single phase |
Certificate |
CE |

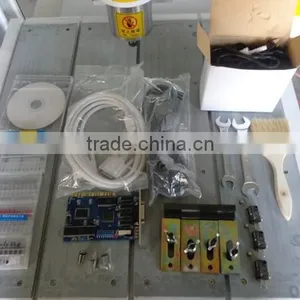

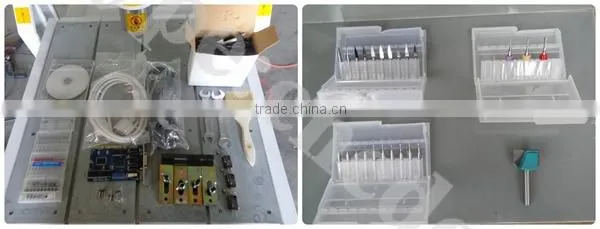

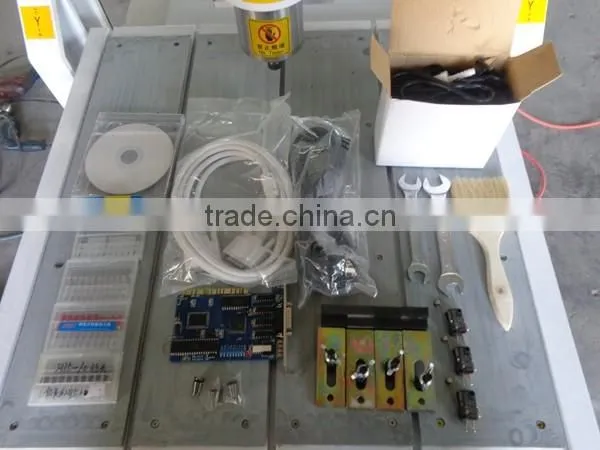

Accessories |
Water pump(1), tools (15), power line, USB line, fixtures(6), user manual, |
software CDs, | |
spanners(2), brush,collets(3), double faced adhesive tapes (2),etc. |

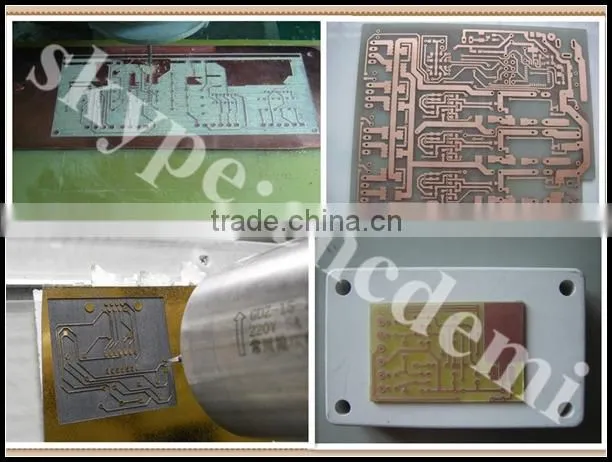

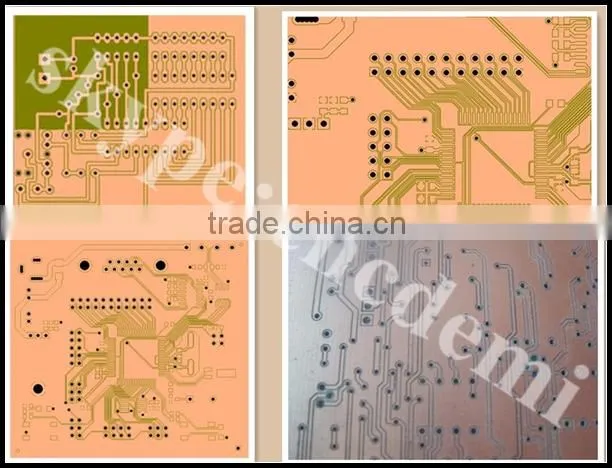

Samples of desktop pcb cnc router 6060 :
Options of desktop pcb cnc router 6060 :

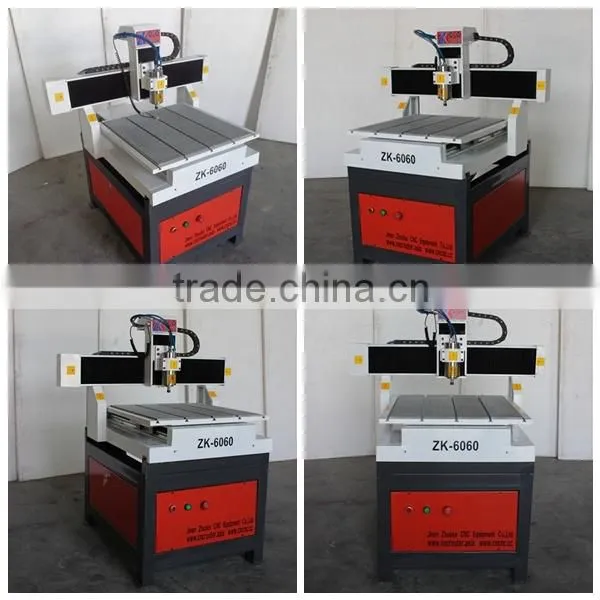

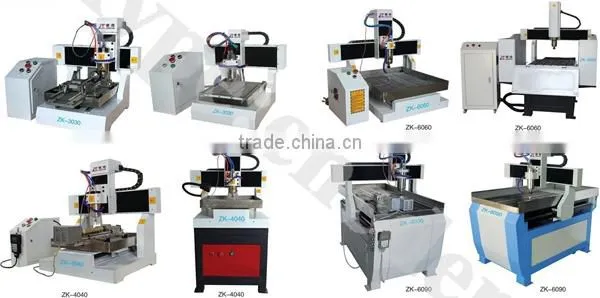

Other model of desktop pcb cnc router 6060 :
Contact me:
We also have other model can choose .We are factory can design the machine as your requirments ,
Welcome for your enquiry!~
