Specifications
T-960 SMD LED soldering machine- factory price
- good quality
- 5 zone for SMT,SMD,LED,PCB soldering
- CE
T960 reflow oven, SMD LED soldering machine,desktop reflow oven,infrared soldering station,taian,puhui

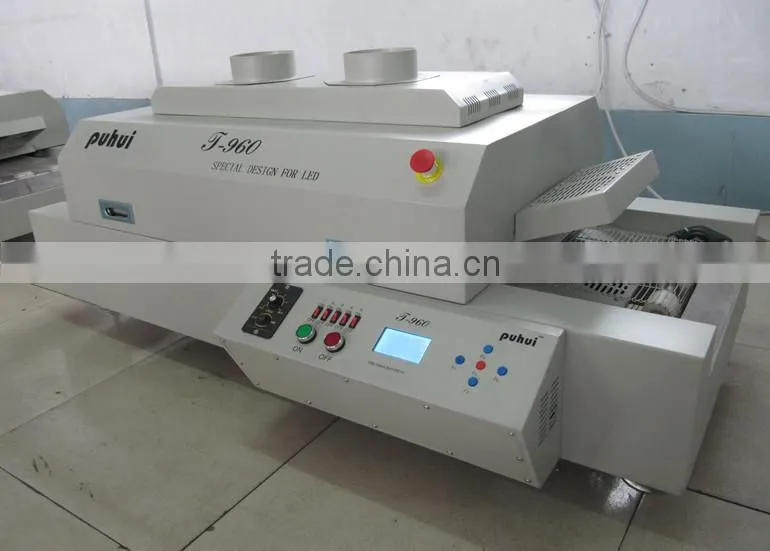

Actual Oven Pictures

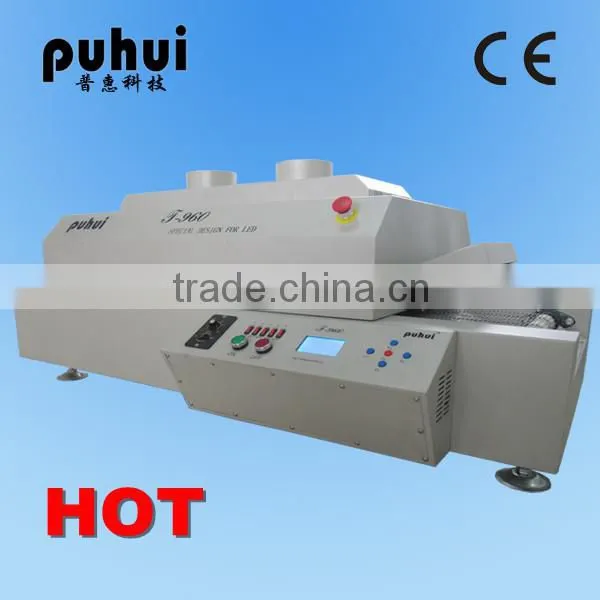

reflow oven T-960
Infrared and hot air heating technology
uninterrupted soldering the LED and BGA components.
Crawler-type and five temperature zones heating systems
each zone uses independent PID controlling and up-down heating type
Eight temperature waves
Programmable technology
Thermocouple temperature measurement, compensation circuit
PID intelligent temperature control technology
Imported frequency conversion motor
1:150 imported turbine speed reducer
speed adjustable range 0-1600mm/min.
Independent wheel structure and special stainless steel strut
speed precision can reach ±10mm/min.
Easy operate, LCD display, no need connect with the PC
Good build quality, easy transportation or storage.
Technical parameters
The heating zone quantity - upper3/down2
The length of the heating zone - 960mm
The heating type - Infrared and hot air
The cooling zone quantity - 1
Maximum width of PCB board - 300mm
The operation direction - From left to right
Transmission type - Net transmission+chain transmission
The speed of conveyer belt - 0-1600mm/min
The voltage - 380V/220V
Power - 4500w
Heating up time - Around 15mins
Temperature control range - Room temperature~300
Temperature control mode - PID
Temperature control accuracy - ±1
PCB temperature distribution balance - ±2
Overall dimensions - 1450×630×470
Machine weight - 90KGS
Easy Operation
Connect with 220v/380v
Turn on the machine
Press F2 to select suitable wave according to your solder paste
(or set wave by hand, we will support you)
Turn on 5 zone switches, start to heat up
Turn on the transmission belt speed switch and adjust speed

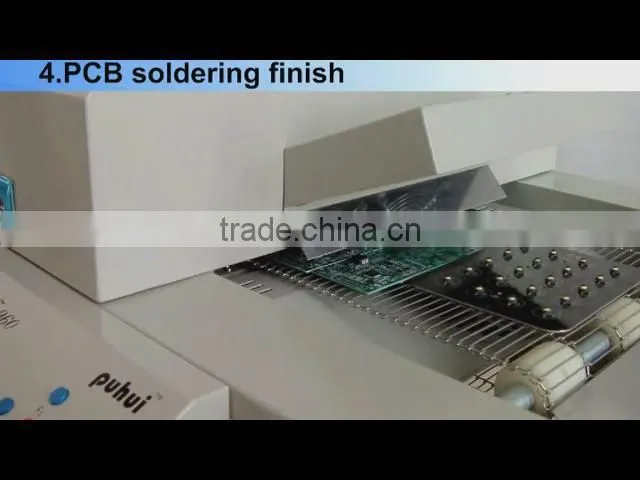

Put the PCB on the belt from left when the 5 zones temperatures meet the wave temperatures
12 months warranty & Factory price supply
For more details, pls feel free to contact us, thank you
