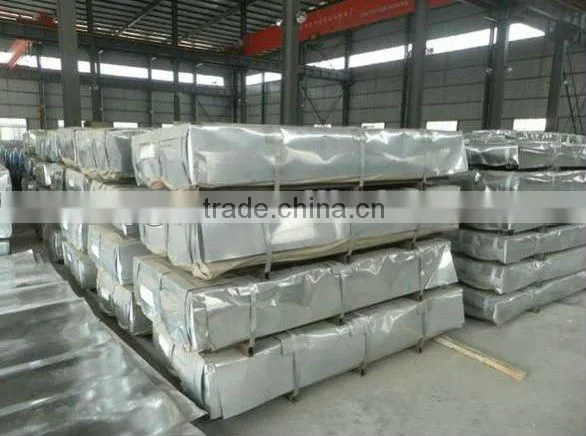

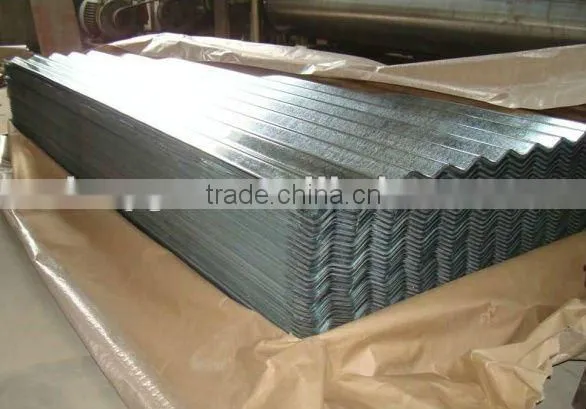

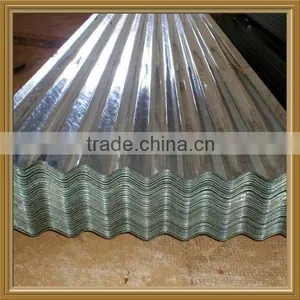

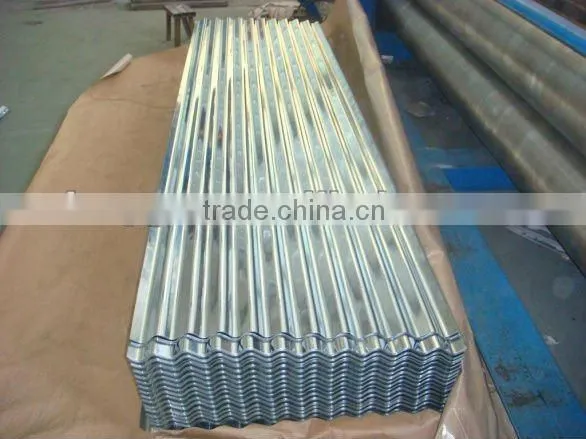

Galvanized Corrugated Sheet (Roofing Sheet)

US$ 750 - 950 MOQ: 25 Tons

Key Specifications

Standard:

ASTM, GB, JIS

Grade:

SGCH

Thickness:

0.13-0.8mm

Liaocheng Zhengyang International Trade Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao Port China

Delivery Detail:

Delivery time depends on order quantity.

Standard ASTM, GB, JIS

Grade SGCH

Thickness 0.13-0.8mm

Place of Origin Shandong, China

Brand Name ZY

Model Number Galvanized Corrugated Sheet For Roof

Type Steel Plate

Technique Cold Rolled

Surface Treatment Galvanized

Application Other, Building

Special Use High-strength Steel Plate

Width 650-1150mm

Length 1600-4000mm

Specifications

1.Galvanized Corrugated Sheet For Roof
2.Material:SGCH
3.Thickness:0.13-0.8mm
4.Width:650-1150mm

Galvanized Corrugated Sheet For Roof

1	Product	Galvanized corrugated sheets
2	Material	JIS G3302 SGCH(full hard);Zinc coating:60-150g/m2
3	Physical properties	Tensile strength:220-550Mpa;Yield strength:350Mpa; Elongation: 10%-20%;Hardness>50
4	Thickness	0.13mm-0.8mm
5	Width after corrugated	650mm-1150mm;Regular width:800mm, 840mm, 900mm
6	Length	1600mm-4000mm or according to customers' requests
7	Wave	Wave height:18mm(+/-2)mm. Wave distance:76.2mm (+/-3)mm.
8	Application	1.Exterior decoration of buildings: Roof and wallboards of industrial, commercial,residential and public facilities.
		2.Interior decoration of buildings: Wallboards, ceiling boards,partition boards, fireproof doors
		3.Building accessories: Window panels, signboards.
		4.Home appliances: Oil/gas boilers, rice buckets, portable gas burners.
9	Advantages	according to customers'requirements.
		2.manufacture under complete quality control system--ISO9001.
		3.it is light,easy to be installed.
		4.many colors available,with elegant and noble looking.it is widely used in factories,hotels,exhibitions.
		5.eco-friendly material:can be uesd several times and can be recycled.
		6.shorter construction period,longer using times.
10	Main markets	Africa, southeast Asia and South America
