Specifications
Gigabit Managed Industrial Switch 48Gbps24 ports with 4 SFP,1console port
QoS, SNP, VLAN
110~240VAC (auto-adaptable)
CE,FCC
UTT S3224G Gigabit Managed Industrial Switch 48Gbps
Overview:
Specification :
Specification |
Description |
Backplane bandwidth: |
48Gps |
Switching |
Store Forwarding |
MAC table : |
8K |
Forwarding |
Full wire-speed filtering and forwarding |
Dimensions (H × W × D): |
442mm×208mm×44mm |
Ports: |
24 GE RJ45 ports, 4 GE Combo SFP ports, 1 console port |
| VLAN table : | 4K VLANs |
Status LEDs: |
Link/Act, 1000M |
Other LEDs: |
Power |
Working temperature: |
0°C~50°C |
| Management: | CLI, Telnet, SNMP and RMON |
Storage temperature: |
-40°C~70°C |
Storage humidity: |
0%~90%, non condensation |
Power Source: |
110~240VAC (auto-adaptable), 47-63Hz, 1A/230V Or -36~-72V DC
|
Voltage: |
AC 100 – 240 V, 50/60Hz |
Indicator |
Power indicator, system indicator, connection/data forwarding indicator, 10/100M indicator |
User interface: |
Web, CLI |

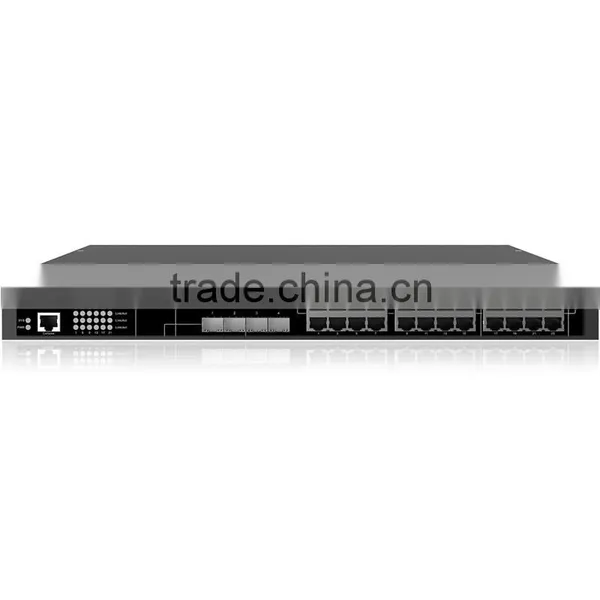

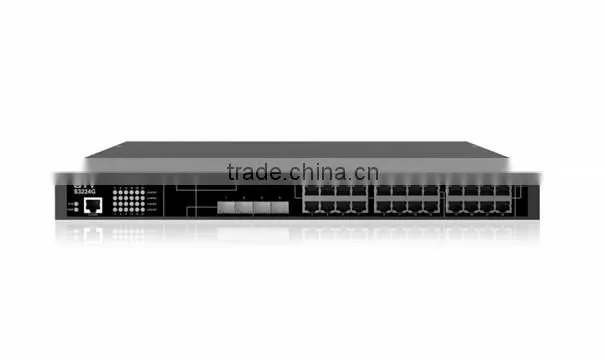

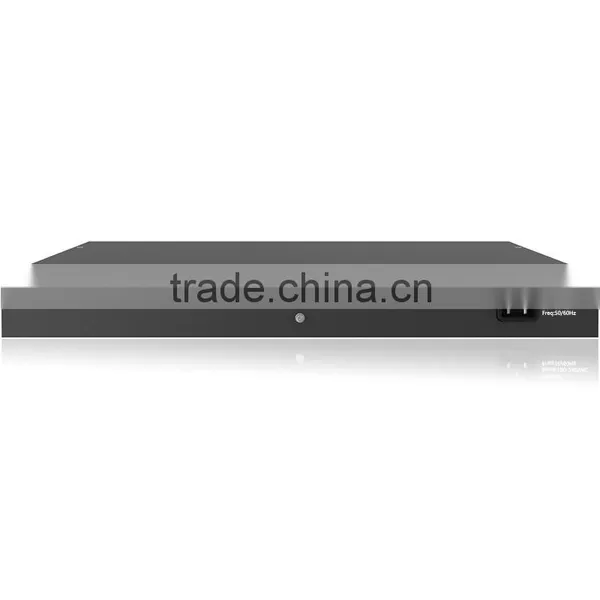

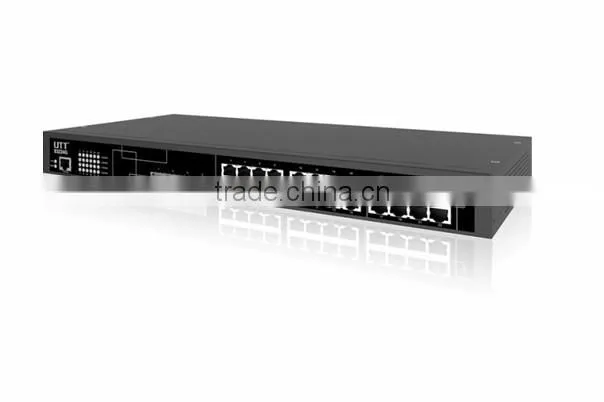

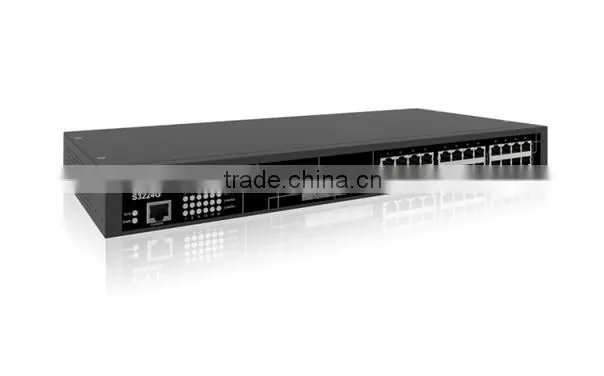

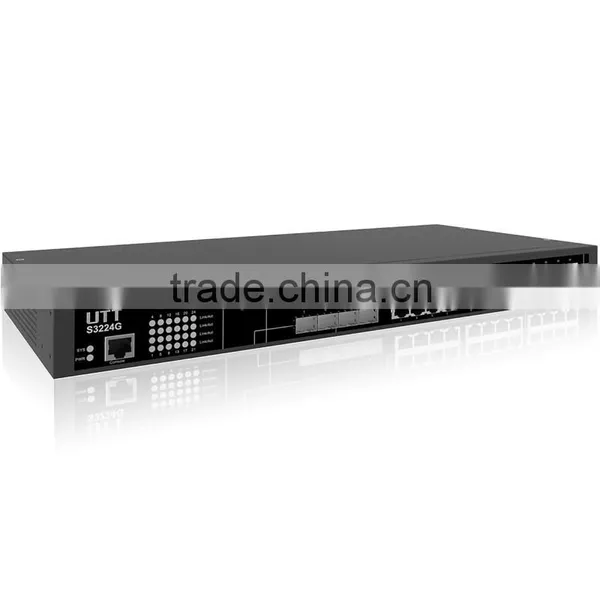

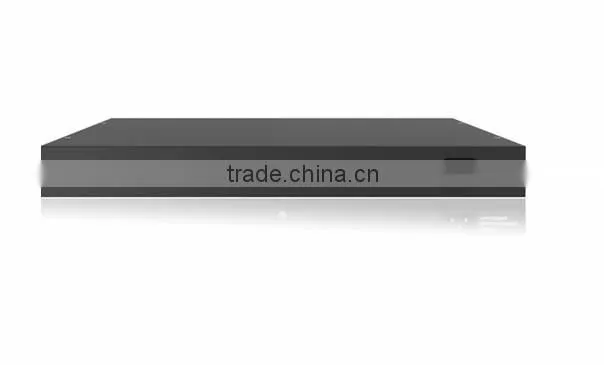

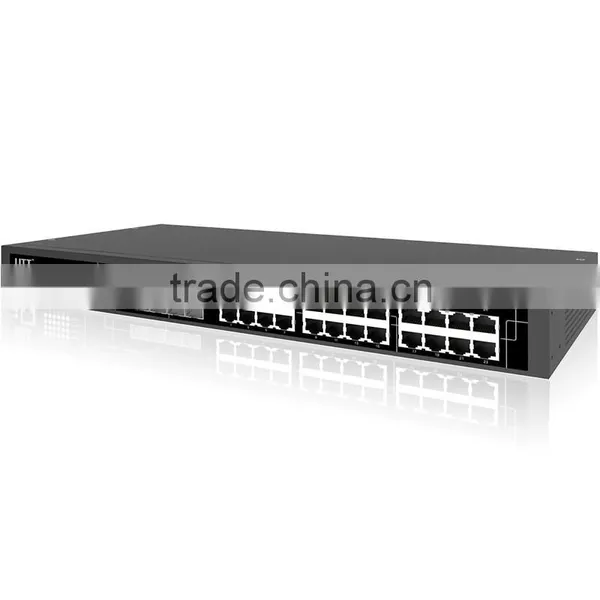

The Photos Of S3224G:
Features:
Excellent performance
48Gbps backboard bandwidth, uncongested design and full wire-speed forwarding
Gigabit optical-fiber transmission with up to 80Km distance and directly connecting the MAN backbone network
High security and reliability
Providing multiple user authentication modes such as 802.1x authentication
Powerful ACL and hardware supporting L2 to L7 data filtration
Port-MAC-IP bind
Special ARP invasion detection to effectively stop ARP cheat
Automatically identifying the straight-through cable and the intercrossed cable
Adopting the cluster technology; supporting device stacking; managing uniquely through a unique IP address; saving address resources
Supporting multiple management modes such as Console port, Telnet, Web and SNMP
Supporting multiple general network management protocols like Broad Director, HP Open View and Cisco Works 2000
Automatically detecting and controlling broadcast storms, monitoring IGMP packets and effectively preventing broadcast packet's flooding
Supporting flow control in full-duplex mode or half-duplex mode
The rate limitation in a minimum step of 64K is supported on the Ethernet interface.
Supporting IP multicast and QoS
