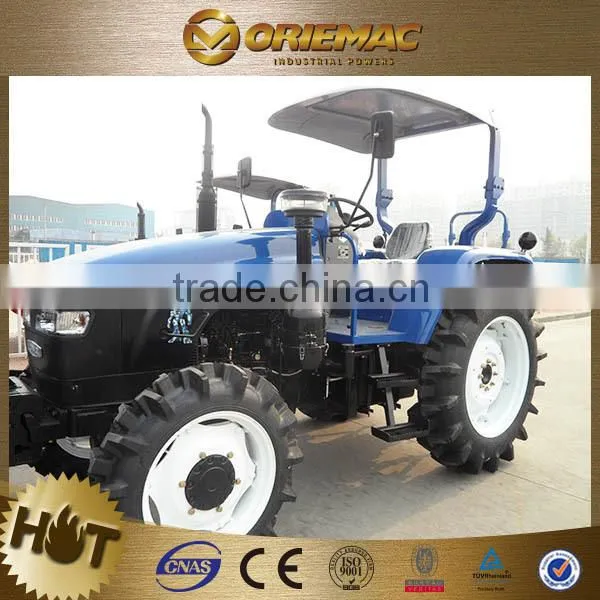

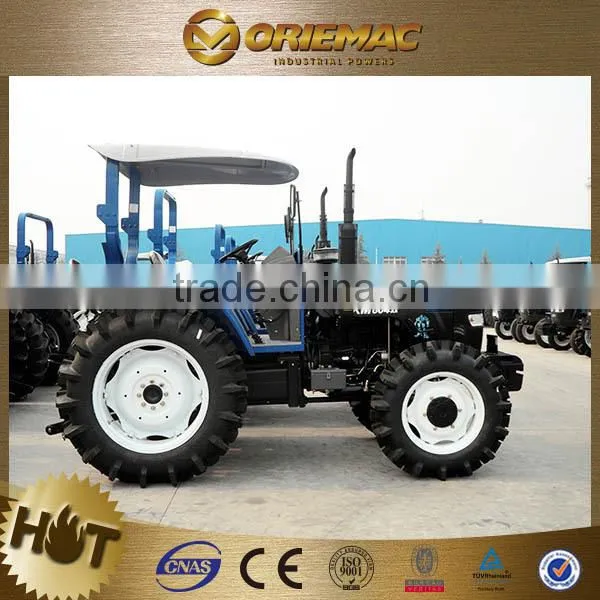

Farm Tractor LT404

Farm Tractor LT404 thumbnail-1
Farm Tractor LT404 photo-1
US$ 10,000 - 50,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Wheel Tractor
By wheel:
4WD
Contact Supplier Request Quote Chat Now
Shanghai Oriemac Machinery & Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Wheel Tractor
By wheel 4WD
Usage Farm Tractor
Drive Type Gear Drive
Power(W) 29.4KW
Certificate CE
Brand Name foton
Model Number LT404
Place of Origin Shandong, China
After-sales Service Provided Engineers available to service machinery overseas

        Farm Tractor LT404

  1. Popular sale FOTON LOVOL 40HP Farm Tractor wheel tractor 404 tractor TB404
    foton 454 tractor
    foton europard tractor

  2.

    Main Features

    1. The fan and heater cab are optional;
    2. 955mm narrow tread model can better meet the operational requirements;
    3. U.S. ACTUANT combination instruments are optional;
    4. The transmission with gear combinations of 8+8, 16+8, and 12+12 has a variety of gear selections, and a reasonable velocity distribution;
    5. Chassis uses the four-planetary gear differential, and the power is upgraded to 60 hp;
    6. EC, EPA and GOST certification models are available

    Technical parameters

    Drive type 4*4
    Overall dimension(L * W * H) 3980*1650*(2130/2520)
    Wheelbase (mm) 1990
    Track(front/rear) 1250/1200-1500
    Track(front/rear) regulating method non-adjustable /stepless
    Min.Ground clearance(mm) 310
    Min.operating weight (with cab)(kg) 2335
    Min.operating weight (without cab)(kg) 2135
    Counterweight (max)(front/rear) 108.144/300.360
    Gears(forward/reverse/creeper) 8+4/8+8/16+8/12+12
    Theoretical speed of each gear(forward/reverse) 2.65-34.78/3.94-12.1;2.65-34.78/2.33-30.49;0.43-34.78/0.65-12.10;2.46-32.73/2.15-28.69
    Engine
    Brand Lijia, Xinchai, Quanchai
    Engine type 4-cylinder
    Intake mode Natural intake
    Number of cylinders 4
    Bore 90
    Stroke 110
    Displacement(L) 2.54
    Engine rated power kW@rpm 29.4
    Rated speed 2400
    Type of air cleaner Dry or wet type
    Type of cooling system Forced water-cooled
    Max. Torque@ revolving speed (rpm) 146@1600~1800
    Specific fuel consumption rate at rated conditions (g/kW.h) ≤248
    Fuel tank capacity (L) 38
    Steering brake system
    Type of steering system Hydraulic/mechanical
    Type of steering gear Cycloid orbitrol steering gear
    Type of braking system Disc type
Product Description

Farm Tractor LT404Farm Tractor LT404

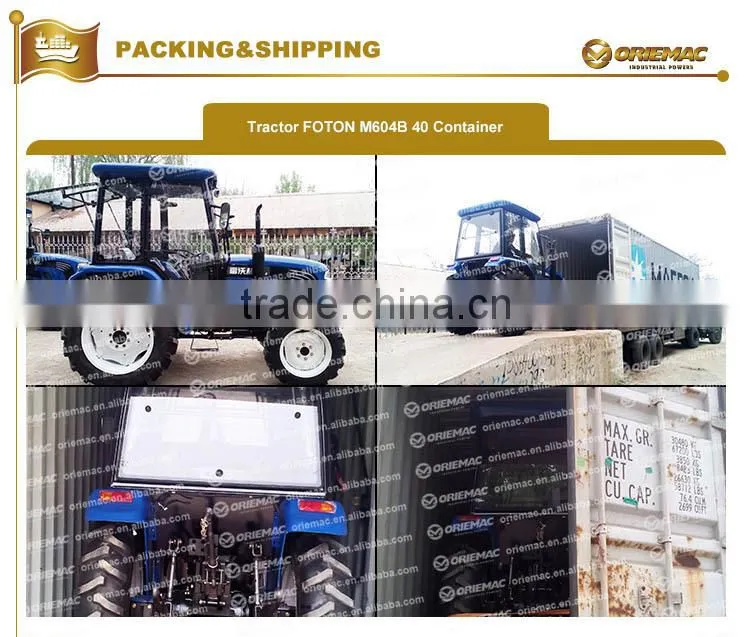

Packaging & Shipping

 Farm Tractor LT404
