Specifications
1.High thermal conductivity,high load carrying capacity.2.Excellent chemical resistance.
3.ROSH and ISO9001:2000 .
FB090 Wrapped Bronze Bearings, CuSn8P, Diamond oil pocket
♦ Specifications
1.Name:HPB Oiles bushing
2.Material:CuZN25Al6FeMn3
3.HB:180-220
4.Size:240(OD)*220(ID)*110(L)
5.Certification:ISO9000
1.Name:HPB Oiles bushing
2.Material:CuZN25Al6FeMn3
3.HB:180-220
4.Size:240(OD)*220(ID)*110(L)
5.Certification:ISO9000
♦ Features
- Exhibits incomparable performance under high load, low speed operation. Usable without lubrication.
- Excellent wear resistance in such places where an oil film is difficult to be formed due to reciprocating, oscillating motions and frequently intermittent operations.
- Remarkable resistance to corrosion and resistance to chemical attack.
- Available in various dimensions as standard or customized product.
♦Descriptions
1. Material |
Chemical Composition (%) |
Type |
|
CuSn8P |
Cu = 91.3% Sn = 8.5% P =0.2% |
Lead Free |
|
CuPb10Sn10 |
Cu = Balance. Sn = 9~11%, Pb=9~11% |
With Lead |
|
2. With diamond oil pocket
3. Lead-free & Low-maintenance
♦Features
1. FB090 bushing is based on high density bronze alloy, and rolled with diamond pocket or round pocket as it's inner surface.
2. It has high capacity, high temperature, anti-corrosion and good wear.
♦ Applications
Industrial: Widely used in construction machinery, agricultural machinery and so on.
♦ Product Advantages
1. Lead-free and fully recyclable. Less expensive than machined bushing.
2. Minimal space required.
3. Lighter in weight than machined bushing or roller bearing.
4. High stability under load, therefore particularly suitable for oscillating bearing.
5. Lubrication grooves are coined into the metal, and any shape desired is possible.
6. Grease depots for long-term lubrication.
♦Physical and Mechanical Properties
Maximum Operating Temperature Tmax |
280 |
°C |
Minimum Operating Temperature Tmin |
-200 |
°C |
Maximum Static Load Psta,max |
140 |
N/mm2 |
Maximum Dynamic Load Pdyn,max |
140 |
N/mm2 |
Maximum Dry Sliding Speed V |
2.5 |
m/s |
♦ Advantages
1.ExperienceWith over 10 years of manufacturing history, mature technique and professional. with competitive price and quick delivery.
2.High Quality:Our produts must strictly control the high quality and low price.
3.Cost-Saving: Help customers to save costs by making reasonable machining processes and refining products designs as requried if allows.
4.Honesty: We will let our customers know in advance if we have any problem that we can't meet the given requirements.
5.Communication:We will communicate with our customers to get full ideas of you and provide a high quality & guaranteed service.

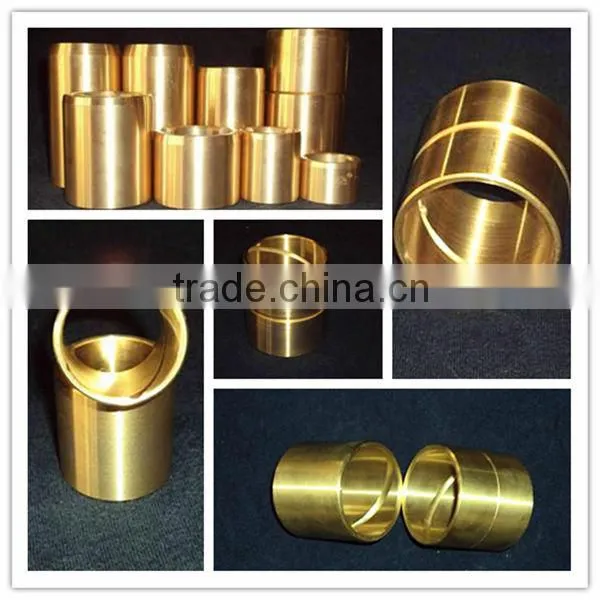

♦ Pictures
We have supplied all kinds of bushings for over 10 years.
Should any of these items be of interest to you, please let us know.
We will be happy to give you a quotation upon receipt of your detailed requirements.
