Specifications
DB370A Electric Water Pump Applied to pumping liquid. such as domestic water supply,irrigation,pressure boossting.

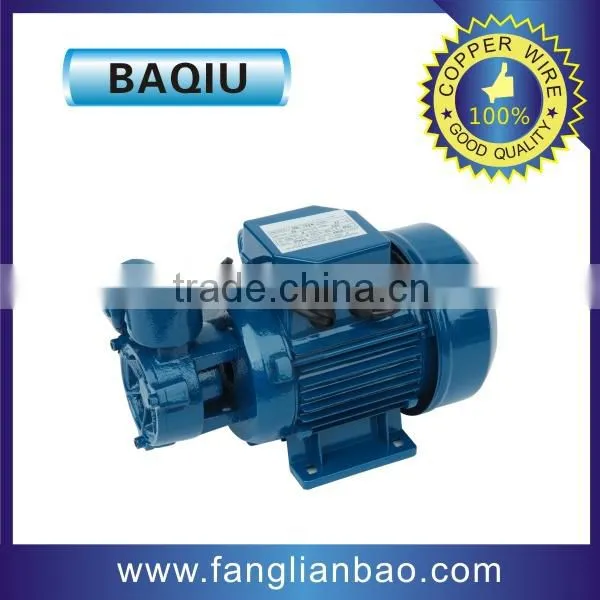

DB370A ELCTRICAL VORTEX WATER PUMP
Construction
- Pump Body: Cast Iron/Stainless Steel/Brass
- Front Cover: Cast Iron/Cast Iron with brass insert / Aluminum
- Impeller: Brass/Aluminum/PPO
- Mechanical Seal: Carbon/Ceramic/Stainless Steel
- Motor Housing: Alloy Aluminum
- Shaft: Carbon Steel/Stainless Steel/High Frequency Wedding Shaft
- Insulation: Class B / Class F
- Protection: IP44 / IP54
- Cooling: External Ventilation
- With thermal overload protector in single phase motor
Operation Conditions
Suction head up to 9M
- Liquid temperature up to 60C
- Ambient temperature up to 40C
- Max.Pressure:10Bar
Technical Data
| Model | Power | R.P.M | Q.Max | H.Max | S.Head | Pipe Dia | L X W X H | N.W | |
| HP | KW | (l/min) | (m) | (m) | (mm) | (kg) | |||
| DB-125A | 0.33 | 0.25 | 2850 | 35 | 24 | 9 | 1"*1" | 265*130*155 | 5.5 |
| DB-370A | 0.5 | 0.37 | 2850 | 40 | 30 | 9 | 1"*1" | 260*135*160 | 6.0 |
| DB-550A | 0.75 | 0.55 | 2850 | 45 | 50 | 9 | 1"*1" | 280*145*160 | 9.5 |
| DB-750A | 1 | 0.75 | 2850 | 50 | 55 | 9 | 1"*1" | 282*145*175 | 10 |
PACKAGING: one pump one carton, six/four cartons in one big outside carton.
SHIPPING: 30 days after receiving the deposites or original L/C
“Quality always stands the first” and “Honest” is our concept. we provide reasonable price, punctuality delivery and satisfying service.
1)Q: Are you a factory or a trading company?
A: Pump manufacturer.
2) Q: What is your MOQ of this item?
A: 100PCS.
3)Q: How many times for one container production?
A: 30days after receiving the depoistes,40 days in very busy season.
4)Q: How about your quality?
A: We arrang the prodcution quality according to customers' request.
5)Q: What are your payment terms?
A: 30% t/t deposit and the balance t/t against copy of BL.
6)Q: What is your company's available production capacity?
A: 15000 pcs every month.
7)Q: How about the packing of this model?
A: Standard export strong colour carton.
