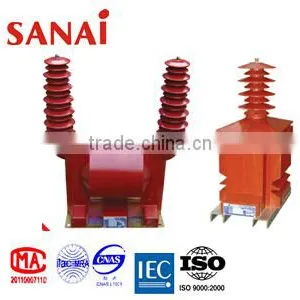

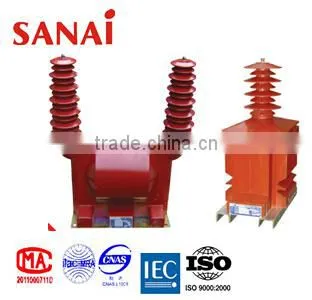

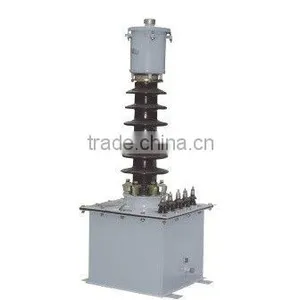

33kV 35kV 36kV Voltage/Potential Transformer
this type is single phase and oil-immersed product.
It is used for electria energy metering ,voltage control and reply protection in the electria system of frequency 50Hz or 60Hz
and rated 36kv and or blelow .
Reted voltage ratio :
35000/√3/100/√3/100/3 or 33000/√3/110/√3/110/3
or
35000/√3/100/√3/100/√/100/3 or 33000/√3/110/√3/110/√/110/3
Accracy class: 0.2, 0.5, 1, 6P
Rated output(VA):75kv ,150kv, 250kv ,100kv
30kv 60kv 60kv
Ultimate output(VA):1000VA ,2x500VA

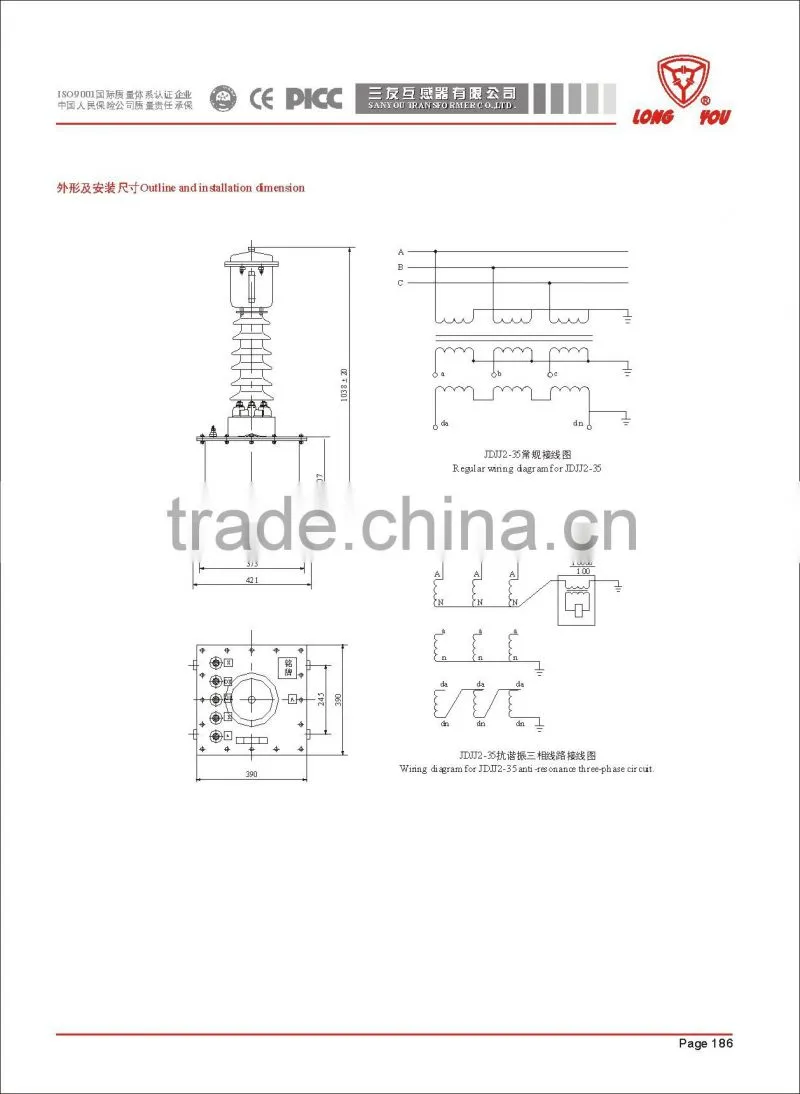

Picture & Outline and Insulation dimension as following :
Package : cartons and wooden case with pallent.
Shipping : 3days ~30days after receiving L/C or T/T advance payment .
We can also package the goods according your requirements
24 hours online services . to solve your any questions,
Offer OEM Service , After-Sales Service, Technical data Service
MOQ & delivery
1. MOQ: 1 pc
2. delivery time: within 15-20 days after the advance payment
payment term:
1. accept L/C, T/T, western union,money gram
Test report .
1.ISO Certificate
2.Type test report and factory test report .
quality & price:
1. we sell items with top quality because we want to keep every customer as our long-term business partner.
2. we set competitive price because we need to attact buyers to this new store.
3. we ship your items on time after you place orders.
