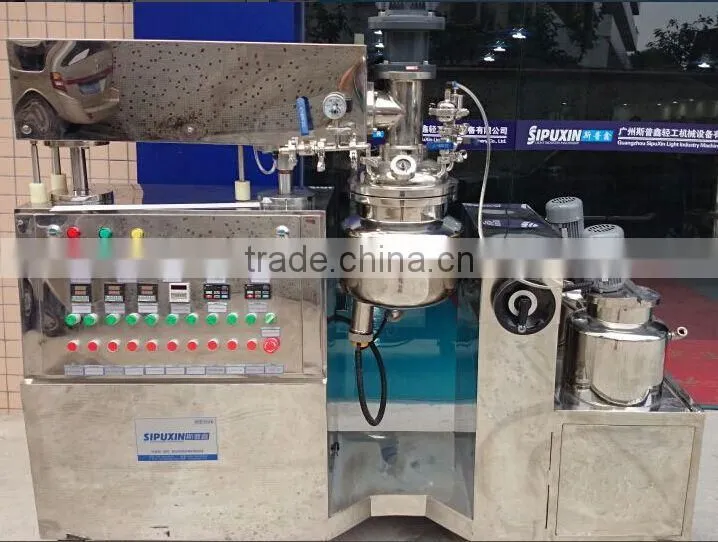

juice homogenizer /mixing tank with agitator /paste agitator tank
juice homogenizer Working theory:
The high shear emulsifier distribute one or several phases to another condinuous phase rapidly and evenly.
The materials will be processed in the narrow space between stator and rotor by strong energy of motion produced by the mechanical effect.
By the operation of hydraulic shearing, centrifugal extruding, impacting, breaking and turbulence for over 100 thousand times per minute, the materials will be dispersed and emulsified instantly and evenly.
After reciprocation circulation at high frequency, the fine finished products of stable and high quality without bubbles will be achieved.
The juice homogenizer composition:
The juice homogenizer is mainly composed of main tank, water tank, oil tank, vacuum system, lifting system and operation platform, etc..
Vacuum homogenizer usage and Application:
Our juice homogenizer is mainly applied in such industries as daily chemical care products, biopharmaceutical industry, food industry, paint and ink, nanometer materials, petrochemical industry, printing and rubber, electrics and electronics and fine chemical industry etc., the emulsifying effect is more prominent for materials of high base viscosity and high solid content.
More details about our juice homogenizer , please or contact us by: 0086-13926465074
juice homogenizer performance and feature:
1. Triple mixing adopts the the imported frequency converter for speed adjustment, which can meet different technological demands.
2. Structure is with German technology, sealing performance adopts imported double-end mechanical, the mixing speed can reach 3500Rpm., high shear fineness can reach 0.2-0.5um.
3. The Vacuum defoaming function ensure product to meet aspecit request, and avoid pollution come into the mixing tank.
4. Lifting system to ensure easy cleaning and high-efficiency cleaning, product discharge can be bottom discharge or tilting discharge.
5. 3 layers welding stainless steel, which is above 300 mesh polishing and up to GMP standard.
6. International brand main parts to ensure smooth and durable production.
| Capacity | Emulsify | Stirrer |
| 20L | 2.2kw, 0-3500r/min | 1.1kw ,10-70r/min |
| 30L | 2.2kw, 0-3500r/min | 1.1kw ,10-70r/min |
| 50L | 3kw, 0-3500r/min | 1.5kw ,10-70r/min |
| 100L | 3kw, 0-3500r/min | 1.5kw ,10-70r/min |
| 150L | 4kw, 0-3500r/min | 1.5kw ,10-70r/min |
| 200L | 5.5kw, 0-3500r/min | 1.5kw ,10-70r/min |
| 350L | 7.5kw, 0-3500r/min | 2.2kw ,10-70r/min |
| 500L | 7.5kw, 0-3500r/min | 2.2kw ,10-70r/min |
| 750L | 11kw, 0-3500r/min | 4kw ,10-70r/min |
| 1000L | 11kw, 0-3500r/min | 4kw ,10-70r/min |
| 2000L | 15kw, 0-3500r/min | 7.5kw ,10-70r/min |
More details about our juice homogenizer , please Click Here or contact us by: 0086-13926465074( whatsapp)
Sipuxin strictly pay attention to machine quality and every detail on machines, every process even welding are supervised seriously:
More details about our juice homogenizer , please Click Here or contact us by: 0086-13926465074( whatsapp)
Sipuxin Export many juice homogenizer every month, all of the machines are packing into seaworthy wooden case.
More details about our juice homogenizer , please Click Here or contact us by: 0086-13926465074( whatsapp)
I like your machine,but but what about the quality?
Been machine manufacturer, we forcus on designing and making high end machines, our machines are with CE approved and ISO standard etc.
1. Are you manufacturer or distributor or agent?
Sipuxin: We are manufacturer , headquarter in Jiangsu province, which is original place of cosmetic machines.
2. Are your machines standard or customized?
Sipuxin: Been manufacturer, we are professional customized machines, however, if you do not have special request, standard machine can fit.
3. I am running a new production line, I am not sure which machine I need, can you help me?
Sipuxin: Sure, my friend, we are professional in designing and manufacturing cosmetic/ shampoo/ liquid detergent etc. production line machines , we can design for you as long as you tell us your capacity per day ( on basic of 8 hours), packing information etc. .
4. What about instalation?
Sipuxin; We can instalate machnes in your factory, but the accomodation cost, air ticket, technician fee will be on your account, however, for small machine, we can install here and lead you by video, when you get machines, you operate on basic of operation instruction and video.
More questions, More details about our juice homogenizer , please Click Here or contact us by: 0086-13926465074( whatsapp)
Our projects
Recognition from customers
Sipuxin Group
I like your machines, how to order?
More questions, please Click Here or contact us by: 0086-13926465074( whatsapp)
