Home > Manufacturing & Processing Machinery > Machine Tools > Lathe > High Quality Q1322 Pipe Threading Lathe Machine For Sale

High Quality Q1322 Pipe Threading Lathe Machine For Sale

Name: High Quality Q1322 Pipe Threading Lathe Machine For Sale
Brand: Datong
SKU: 123445269

High Quality Q1322 Pipe Threading Lathe Machine For Sale thumbnail-1

High Quality Q1322 Pipe Threading Lathe Machine For Sale thumbnail-2

High Quality Q1322 Pipe Threading Lathe Machine For Sale thumbnail-3

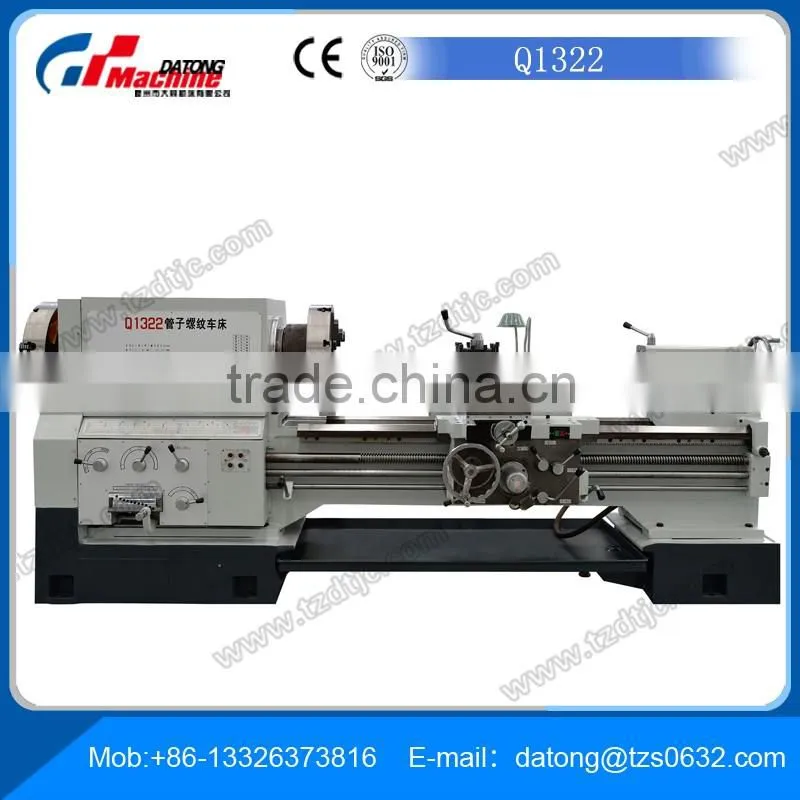

High Quality Q1322 Pipe Threading Lathe Machine For Sale photo-1

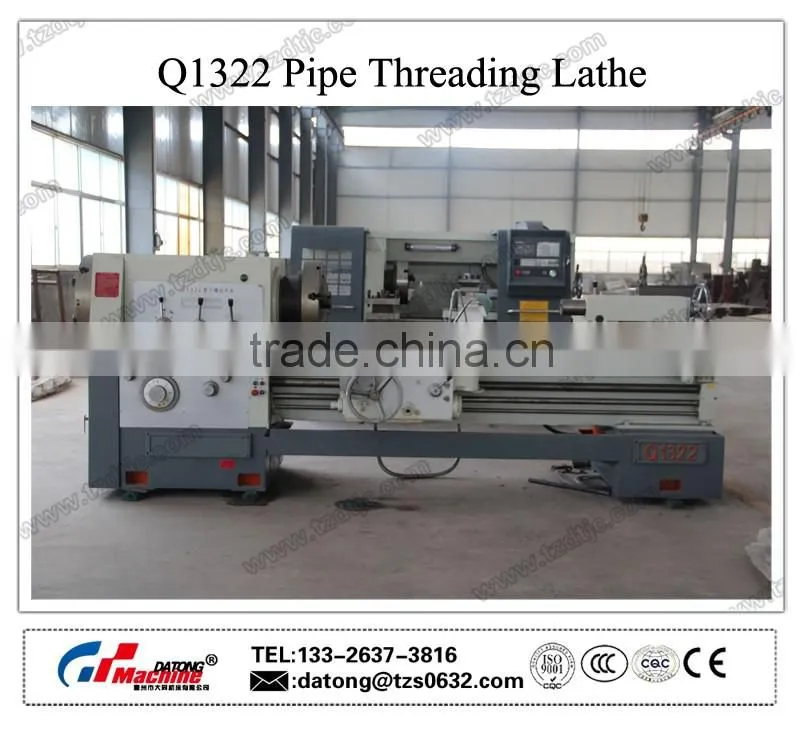

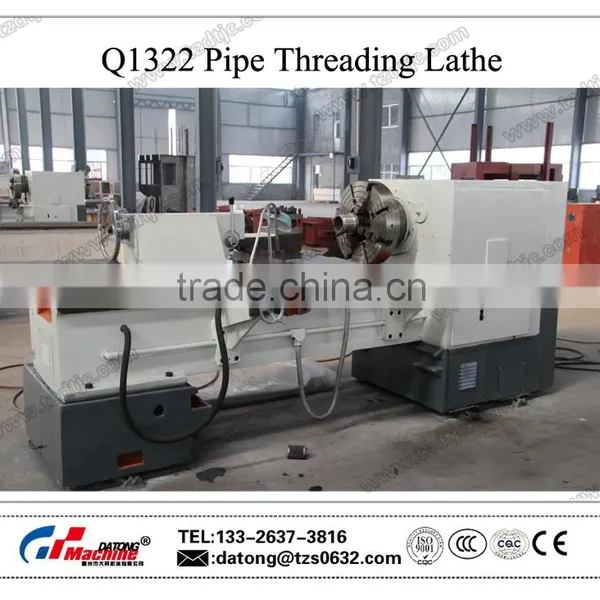

High Quality Q1322 Pipe Threading Lathe Machine For Sale photo-2

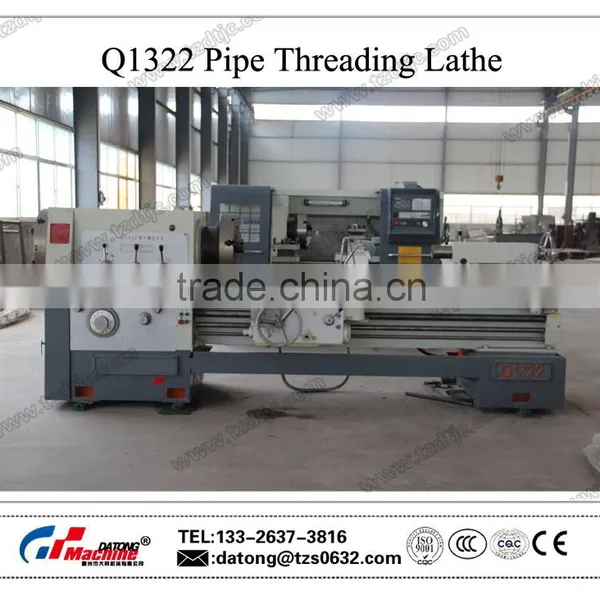

High Quality Q1322 Pipe Threading Lathe Machine For Sale photo-3

US$ 22,000 - 30,000 MOQ: 1 Set

Key Specifications

Get Latest Price

Condition:

New

Type:

Horizontal

CNC or Not:

Normal

Contact Supplier Request Quote Chat Now

Tengzhou Datong Machine Tool Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

qingdao Tianjin Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Type Horizontal

CNC or Not Normal

Automatic Grade Manual

Max. Swing Diameter 630mm

Place of Origin Shandong, China

Brand Name Datong

Model Number Q1322

Voltage 380V

Power(W) 11KW

Dimension(L*W*H) 3657/5157*1449*1393mm

Weight 5200/6300kg

Certification ISO9001,CE

After-sales Service Provided Engineers available to service machinery overseas

Product Description

Q1322 Oil Country Lathe, Oil Pipe Lathe, Pipe Thread Lathe

Pipe threading lathe series are mainly used for processing all kinds of pipe threads including inner, outer, taper, metric and inch thread etc., and also undertake various turning works such as inner and outer cylindrical surface, conical surface and end surfaces

Main Characters:

Hollow spindle bore design allows processing extra-long work-piece
Double chuck equipment realizing better clamping of work-piece
Taper guide bar installed ensures taper thread processing ability

Detailed Specifications:

ITEMS		UNIT	Q1322 Pipe Lathe
Basic	Max. Dia. swing over bed	mm	630
	Max. Dia. swing over cross slide	mm	340
	Distance between centers	mm	1500/3000
	Range of threading capacity	mm	50-220
	Width of bed way	mm	550
	Main motor	kw	11
	Coolant pump motor	kw	0.125
Spindle	Spindle bore	mm	230
Spindle	Spindle speed	r/min	12 steps: 24-300
Taper bar	Max. taper processing	--	1:4
Taper bar	Max. travel of taper guide bar	mm	750
Tool post	Tool post travel	mm	200
	Distance between spindle center and tool post	mm	32.5
	Size of tool section	mm	30*30
	Max. rotation angle of tool post		60
Leadscrew	Leadscrew pitch(mm)	inch	1/2
Feed	Z axis feed	mm	26 grade/0.07-1.33
Feed	X axis feed	mm	22 grade/0.02-0.45
Carriage	Cross slide travel	mm	490
Carriage	Carriage rapid traverse speed	mm/min	4000
Threading	Metric thread	mm	24 grade/1-14
Threading	Inch thread	t.p.i.	40 grade/2-28
Tailstock	Tailstock quill diameter	mm	100
	Tailstock quill taper	mores	m5#
	Tailstock quill travel	mm	250
	Tailstock cross travel	mm	15
Others	Dimension(L/W/H)	mm	3657/515714491393
	Net weight (kg)	kg	4440/5290
	Gross weight	kg	5200/6300
Accessories	Tool post	1 set	4 position manual turret
	Chuck	2 set	520 three-jaw manual chuck
	Taper device	1 set	taper guide bar
	Center rest	1 set	300
	Rear support bracket	1 set	300
Package	Standard export package	1 set	Steel pallet and plastic overclothes

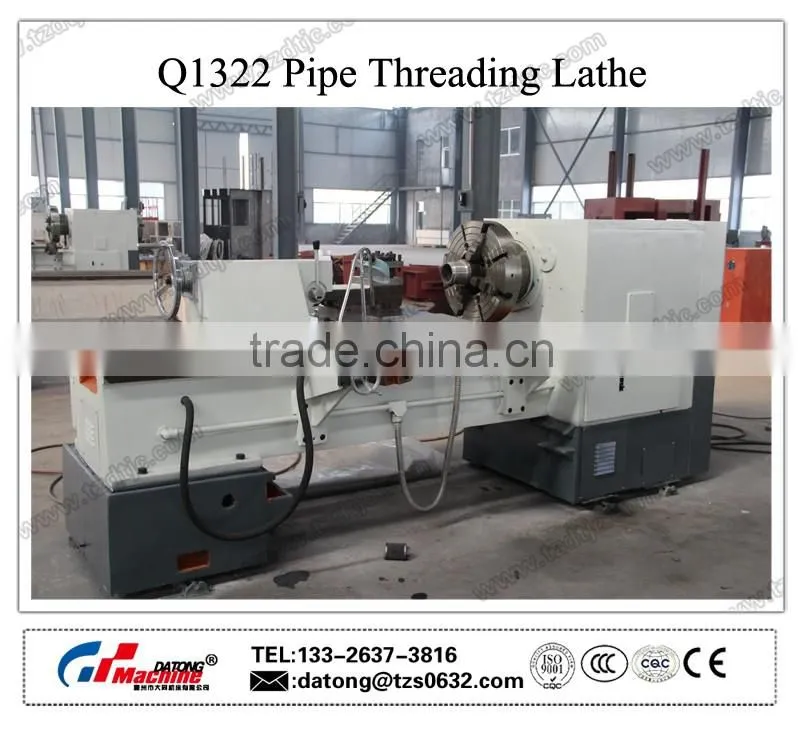

Detailed Images

Packaging & Shipping

Company Information

The Tengzhou Datong Machine Tool Co.,Ltd. is one of the leading manufacturers and exporters of machine tools in Shandong Province in China. We are specialized in the manufacturing of the XW series Universal Lifting Platform Milling Machine,the XQ series Universal Swivel Head Milling Machine,the ZX series Universal Drilling and Milling Machine,the ZQ serie Universal Radial Drilling Machine.Varies models of Hydraulic Machine,Automatic Boring Drum Machine,HD2006-A laser beam level truck locator and hydraulic auto-maintain equipment.

Datong has the right to import and export,and gained CE and ISO9001 System Certification.It has all the integration of R&D,manufacturing & processing,management & marketing,technical service,import & export and into one.At present,we have more than 300 employees,among them,160 have college education which more than 50 persons hold junior,middle and senior professional post .More than 200 sets of main production equipment and testing equipment.The products are widely exported to Europe,South-America and Southeast Asia and other countries and regions.
