Product Application

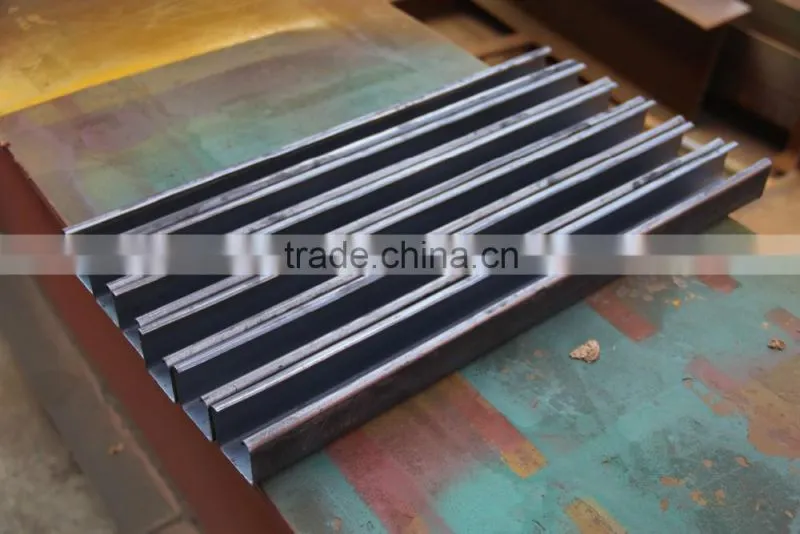

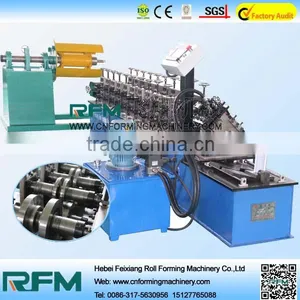

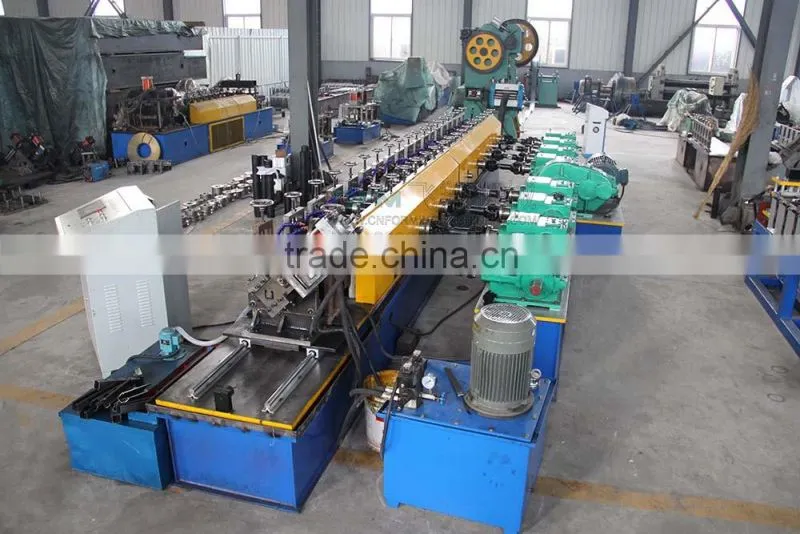

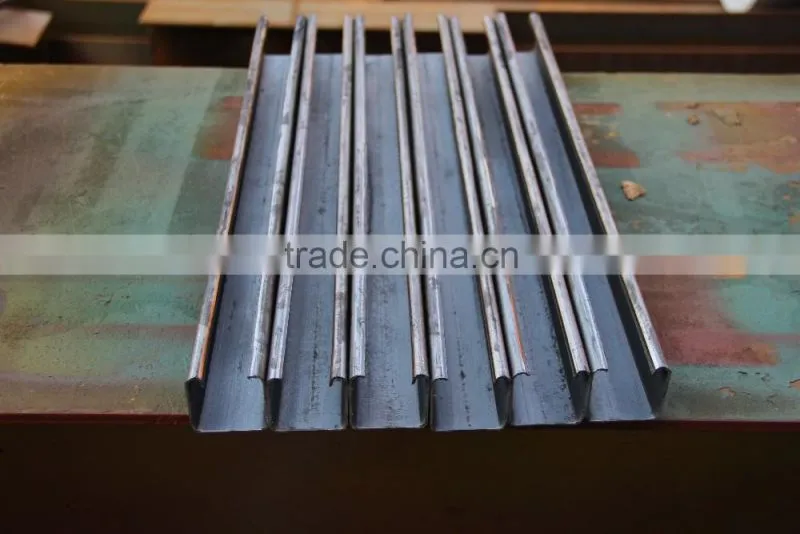

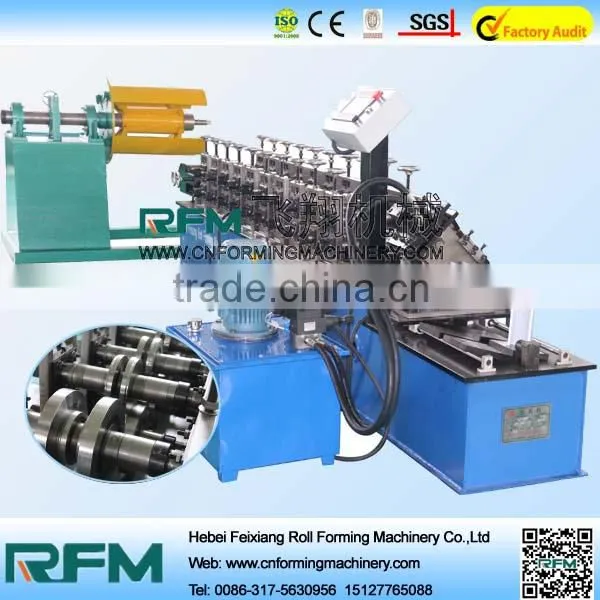

FX slotted channel roll forming machine with punching is suitable for producing slotted channel in all shapes. It is widely used to produce the steel keel,channel and tracks.
Main Features
1) Simple structure in linear type ,easy in installation and maintation.
2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
3) High pressure double crank to control the die opening and closing.
4) Running in a high automatization and intellectualization,no pollution
5) Apply a linker to connect with the air conveyor ,which can directly inline with filling machine .

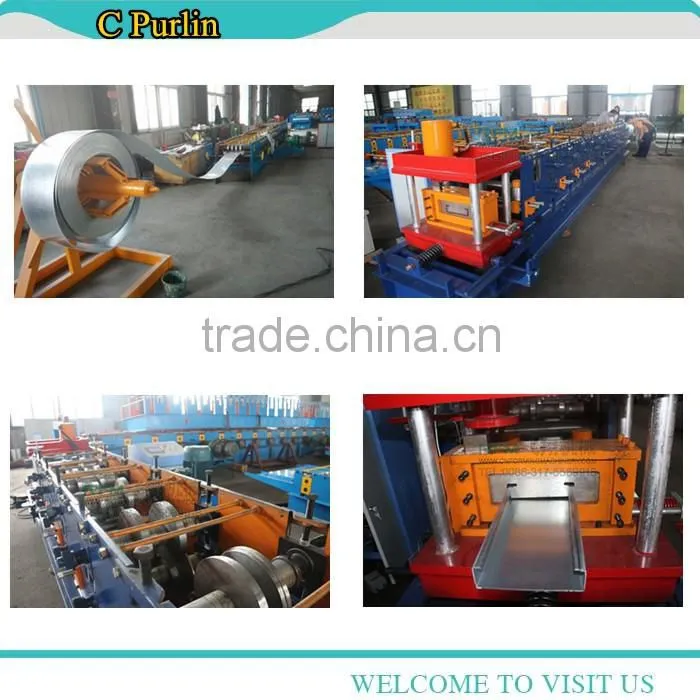

Machine Parts

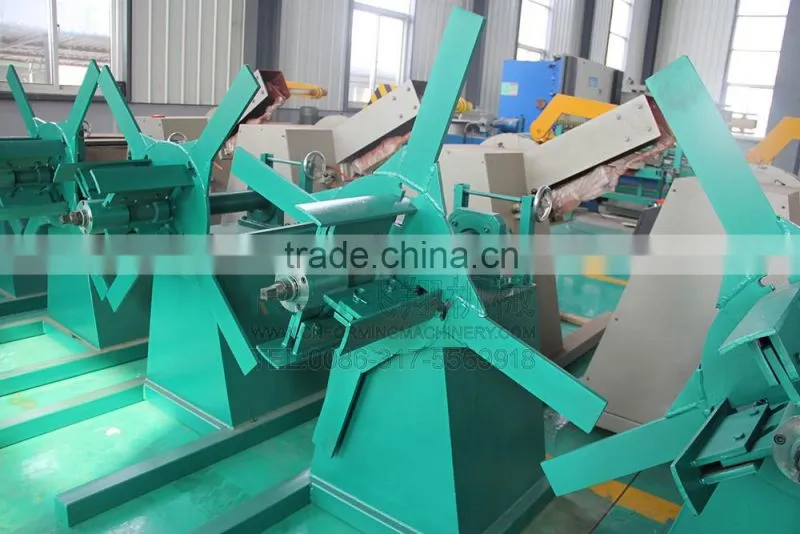

Name: Decoiler
Brand: Feixiang
Original: china
(1)Load capacity :1.5T
(2)Single side decoiler
(3)Max diameter:550mm
(4)Used for decoiling and make the material feeding easily.
Main Features

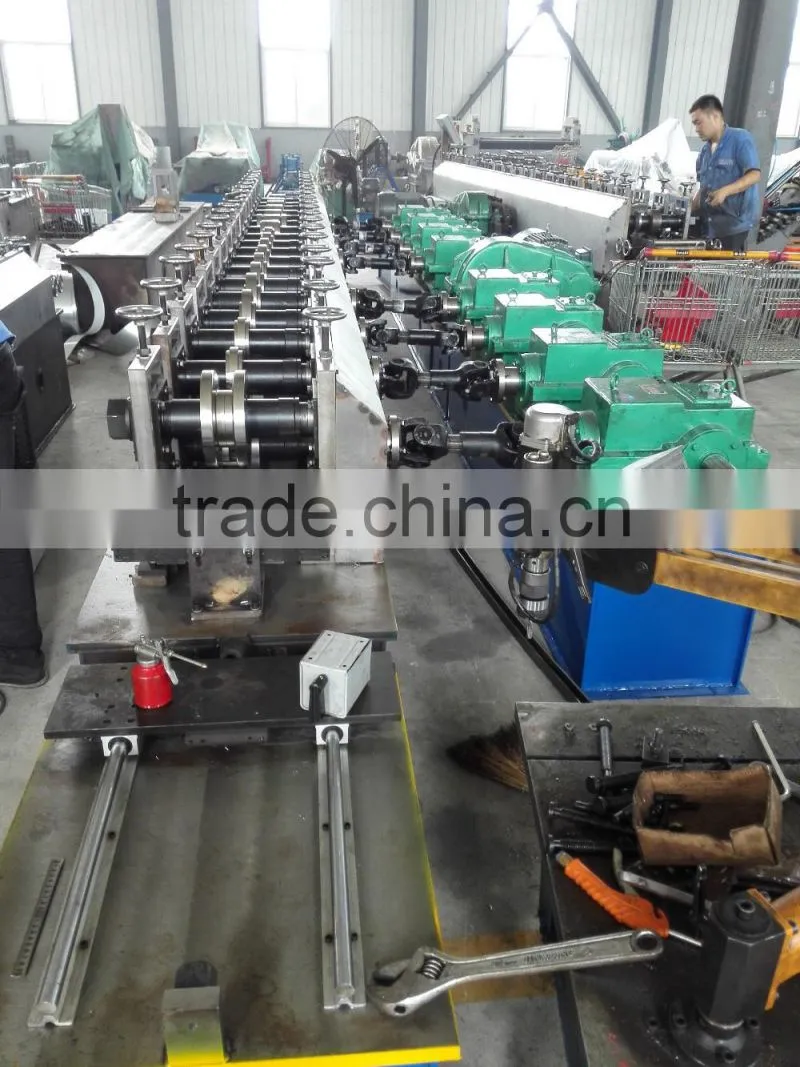

Name: Main forming machine
Brand: Feixiang
Original: china
(1)Main frame material:400# steel. Column style
(2)Number of forming steps:16 steps，
(3)Roller material:Cr15 steel with quenching, The rollers are plated with hard chrome with thickness of 0.05mm on the surface after being machined by the exact machine tool. So that ensure long life of forming rollers
(4)Shaft material:45#steel ,Diameter:80mm, Shafts of rollers are tooled by grinding machine for two times to ensure time forever
(5)Transmission style:gear move the line, motor drives. All working actions are controlled by PLC electric cabinet automatically
(6)Main motor power:15.5kw,you can choose the brand of siemens.
Machine Parts

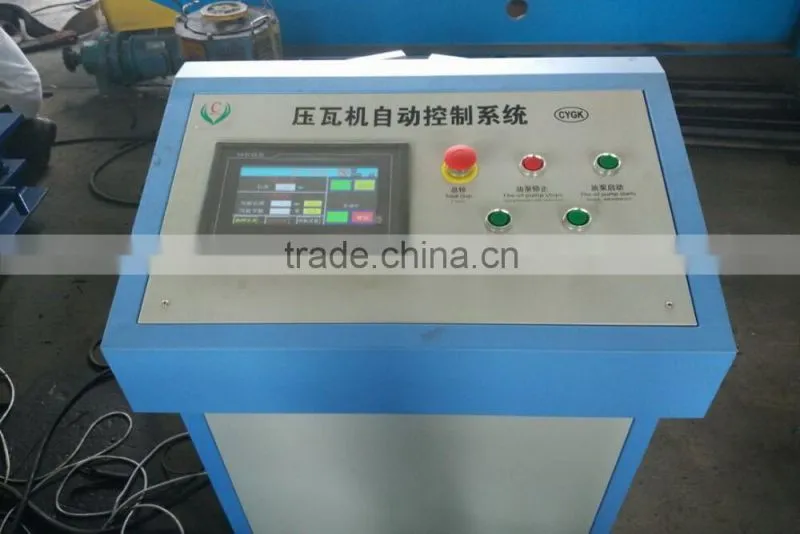

Name: PLC Control system
Brand: Delta
Original: China Taiwan
(1)PLC control system make the machine can work smoothly
(2)Franquency transformer: Delta(3)Reducer: Delta
(4) Operate screen（you can also choose the touch screen)
(5)The electric parts and its brand can make according to your request
Main Features

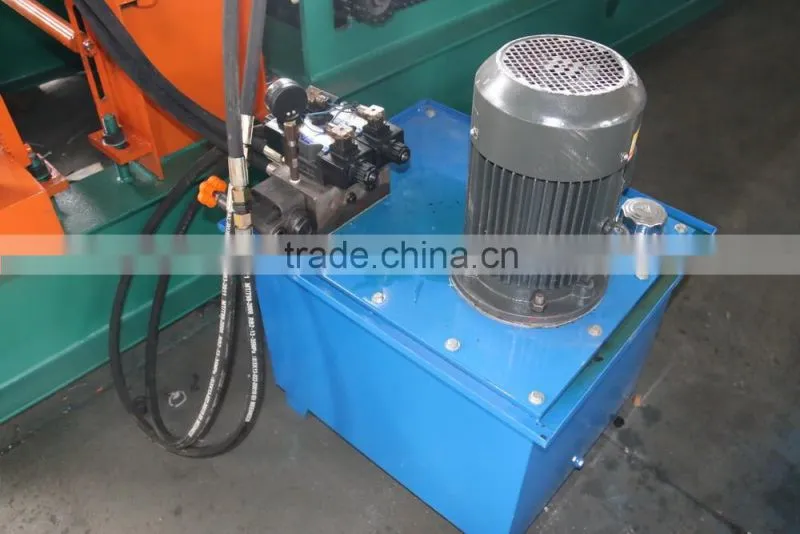

Name: Hydraulic pump
Brand: YUKEN
Original: Japan
(1)1 set ,with power 5.5kw
(2)Include a set of hydraulic tank , a set of hydraulic oil pump, two hydraulic pipes(It supplies the power for the hydraulic cutter). And two sets of electromagnetism valves
Payment
* We provide different types of payment terms for your choice.
* Convenience and fast
* You can also choose alibaba one touch.
Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
