Help Center12 Micro Key Switch Lock Safe
Negotiable
MOQ: 1000 Sets (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Taiwan, China
Brand Name:
Jintay Lock
Model Number:
S126 146
Payment & Shipping
Payment Methods:
Port of Shipment:
Keelung Taiwan
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Taiwan, China
Brand Name
Jintay Lock
Model Number
S126 146
Specifications
>12 Micro Key Switch Lock>Zinc alloy die cast housing and cylinder
>4 pin tumbler mechanism
>Steel made tubular keys

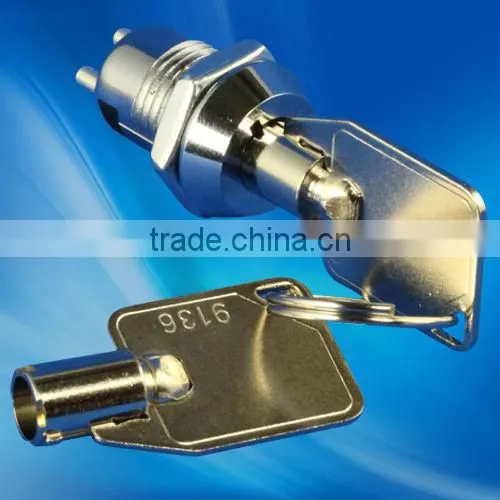

Product Name: Micro Key Switch Lock Safe
Description:
- Zinc alloy die cast housing and cylinder.
- Bright chrome plated standard.
- 4 pin tumbler mechanism.
- Steel made tubular keys, nickel plated.
- Key may be withdrawn in one or both positions.
- Silver plated contacts and terminals.
- S126 2 position (off-on) 2 terminals.
- S146 2 position (on-on) 4 terminals.
- Hex nut mounted.
- All keyed alike or one combination per 100pcs standard.
-150 combinations available.
KEY-PULL FIGURES :
-Off Position - Indicates Key-Pull - Indicates No Key-Pul
| Fig. No. | Lock Number | Pole | Positions | Terminals | Key Pulls | Turn | |
|
Type |
| 1 | S126-1 | 1 | 2 | 2 | 1 | 90 ° | Off | On | SPST |
| 2 | S126-2 | 1 | 2 | 2 | 2 | 90 ° | Off | On | SPST |
| 3 | S146-1 | 1 | 2 | 4 | 1 | 90 ° | On | On | SPDT |
| 4 | S146-2 | 1 | 2 | 4 | 2 | 90 ° | On | On | SPDT |
