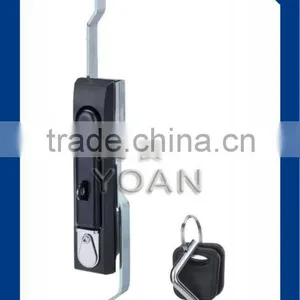

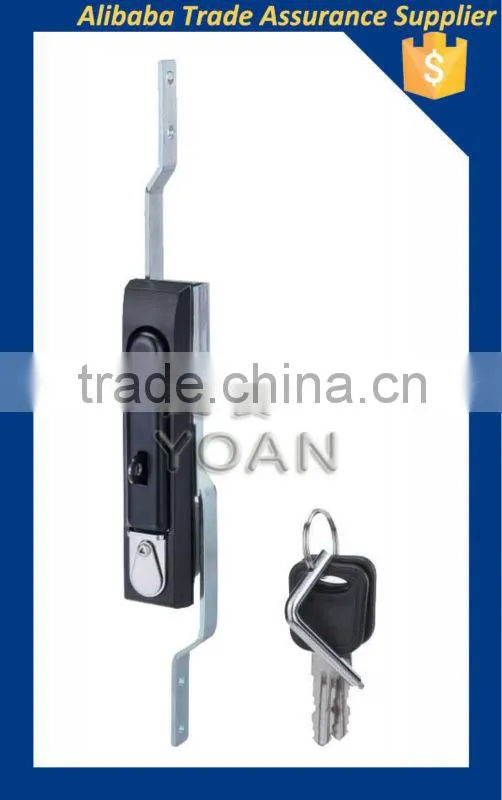

the swing door lock of Rod control lock
934-3
1.1 Material: ZDC lock body, handle and gear box. Cam, driving rod, gear and shaft is made by Q235. Stainless steel nut and hanging ring.
1.2 Surface treatment: black paint coated bottom and swing handle, stainless steel anchor for pad lock,M.S. zinc plated cam.
1.3 Structure: Rectangular multi-functional lock. The handle will bounced up when rotating the key 45o in clock-wise. The driving rod will retract 15 mm when you rotating the handle 90o in anti-clock-wise. The cam will rotating 90o in anti-clock-wise at the time and the lock will into unlock status. The key have self-return function. The hanging ring could be used with a pad lock. This lock could be used both in left handle and right handle door by changing the locating plate.
1.4 Thickness of panel : 1-4mm.
1.5 Applicability: Power distribution cabinet, Communication Cabinet, Instrument Box, Control Box and etc.
1.6 Protection grade:IP65
1. Product's Brief
| Item | Black zinc die-casting cabinet rod control lock 1302 |
| Material | ZDC lock body, handle and gear box |
| Surface treatment | Black oil sprayed , environment color zinc plated |
| Key | 2 pcs key for each lock |
| Packing |
QTY: 1 pcs per box and 50 boxes per master carton. MEAS: 328*208*270 mm G.W.: 21.5 KG N.W.: 20.5 KG |
| Applicability | Metal or nonmetal cabinet,public telephones,metro auto-gate,Intelligent Terminal Device,Financial Terminals,Game Consoles,Vending Machine,Strongbox,Advertising Box and etc. |
| Website |
2. Shipment & Payment
| MOQ | 100 PCS |
| Sample | Free sample,Freight amount should be paid by customer. |
| Lead time | 10-25 days upon the order quantity. |
| Port of Loading | Shenzhen or other port as you request. |
| Payment terms | T/T, L/C, Paypal, West Union and etc. |

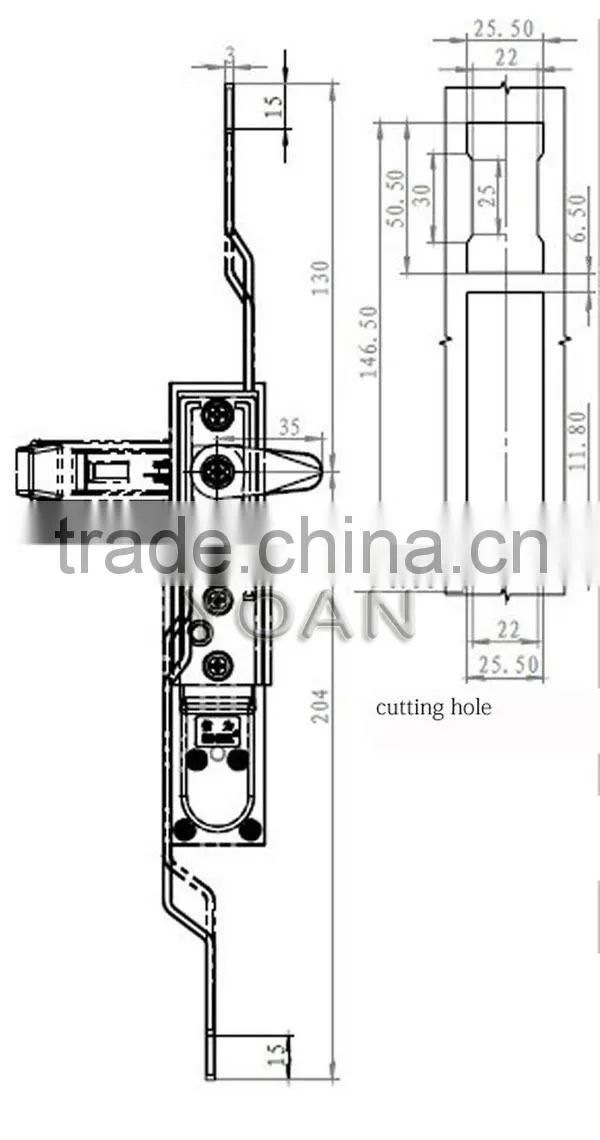

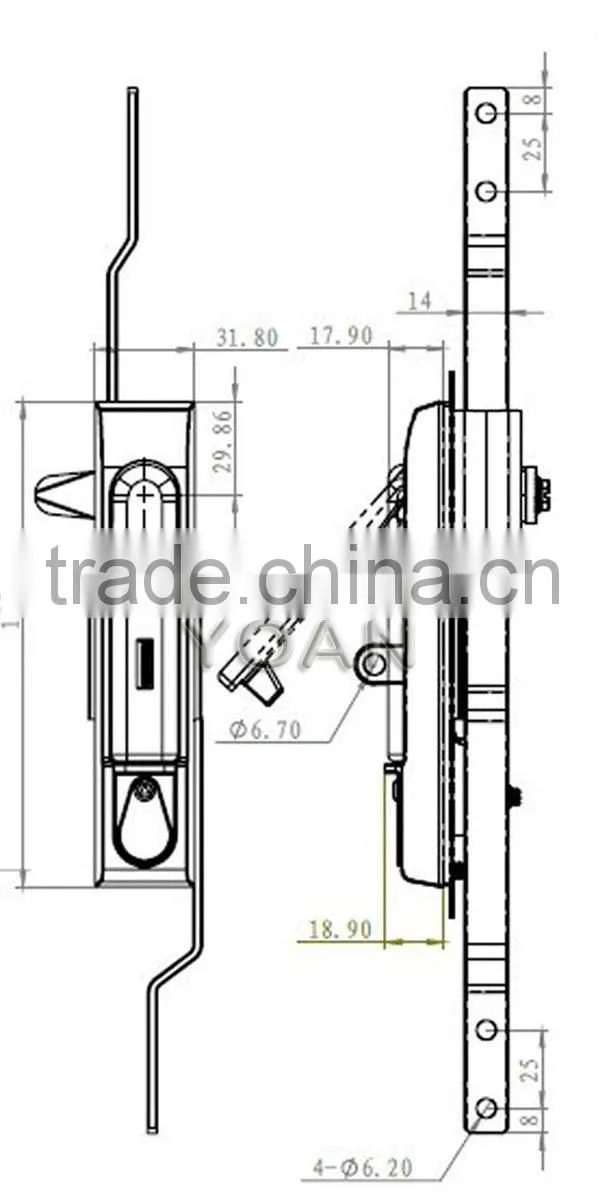

3.Technical Drawing:
4.Plant View
