With the knowing of many kinds of materials, people have a great demand of the polyurethane molding equipment of which the amount of material can be regulated according to the material requirements.

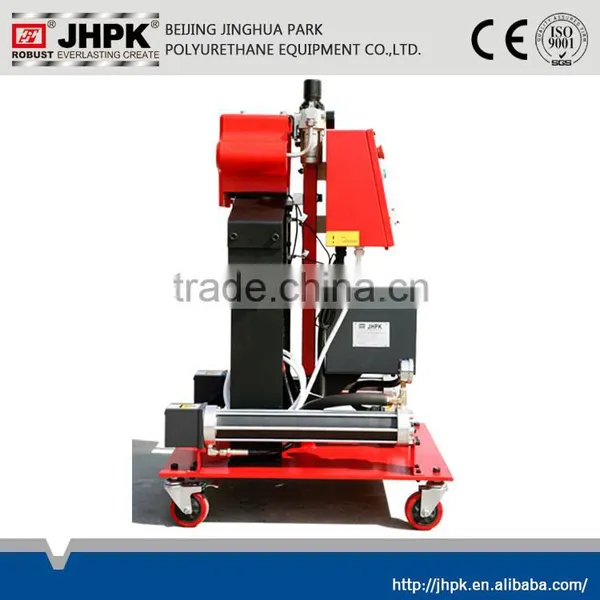

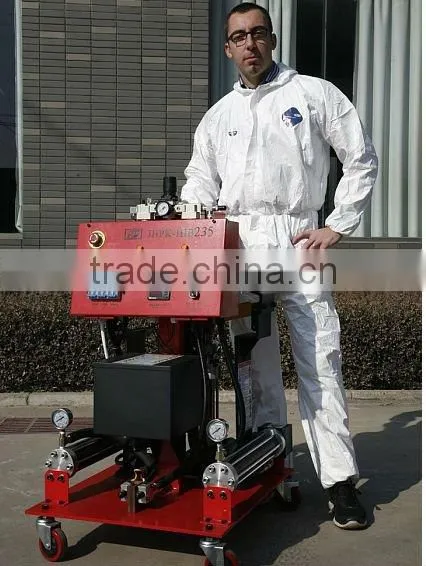

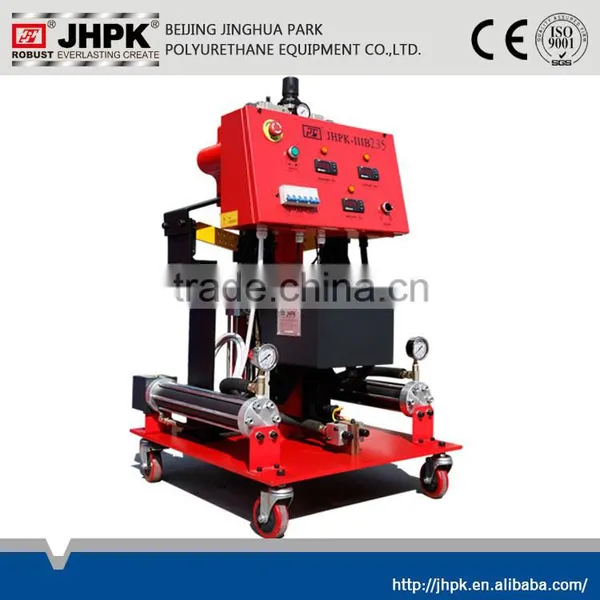

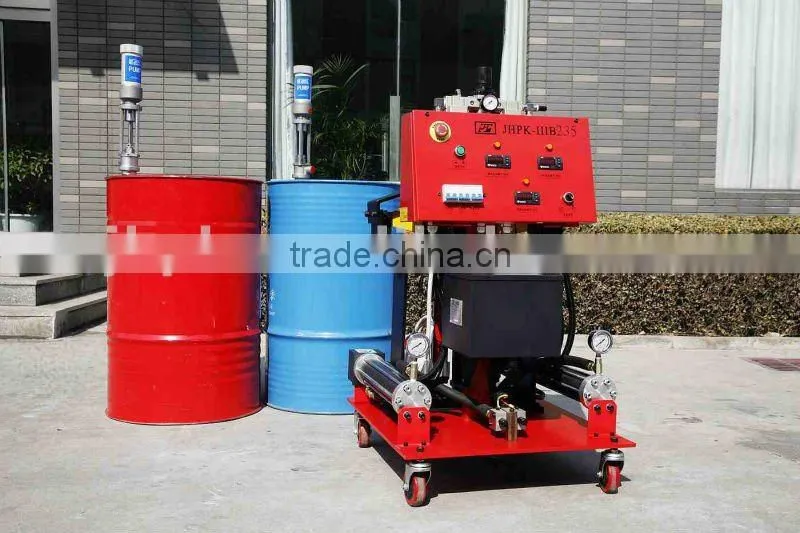

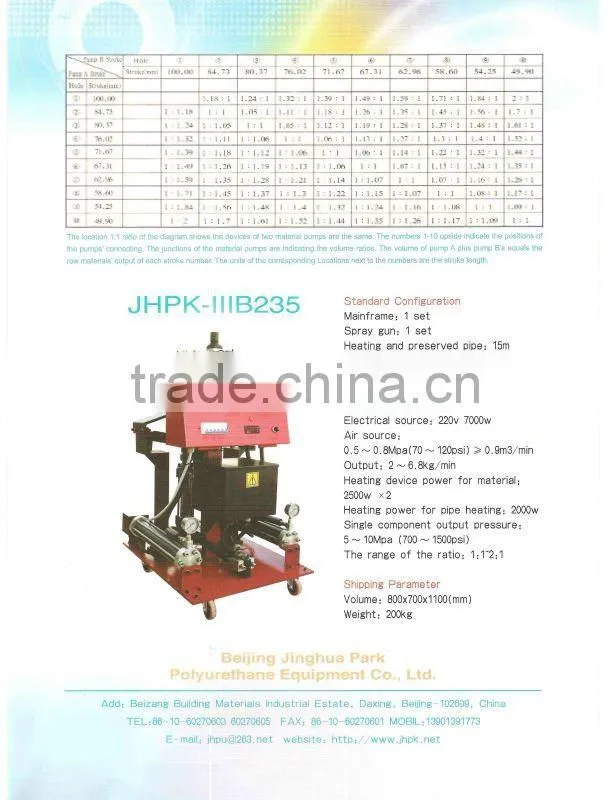

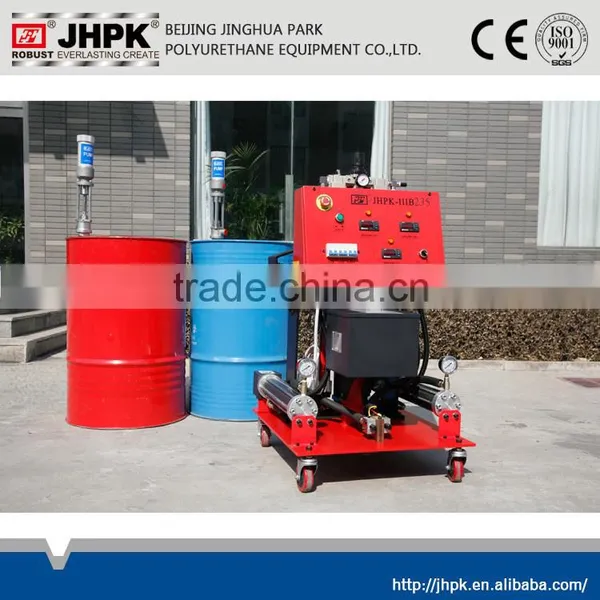

The polyurethane molding equipment, JHPK-III B235 is developed and produced by Beijing Jinghua Park Polyurethane Equipment Co.,Ltd. It has a molding system making the various proportions. The ratio between material A and B is from 1:1~1:2.

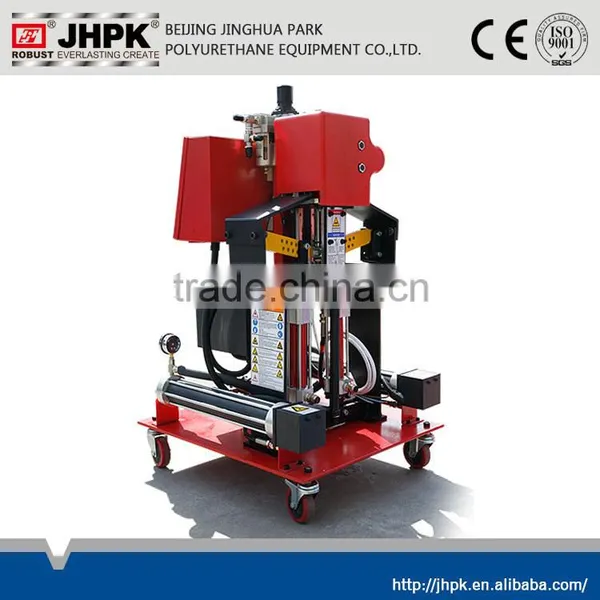

It has a cylinder of which diameter is 125mm for drive and two link rods to drive two material pumps having a stroke campaign. Each of the link rods has scale positioning holes, to lengthen or shorten the travel of the material pumps.
With adjusting the fixing positions of material A&B pumps, it can be chosen any proportion within the ratio it allows.

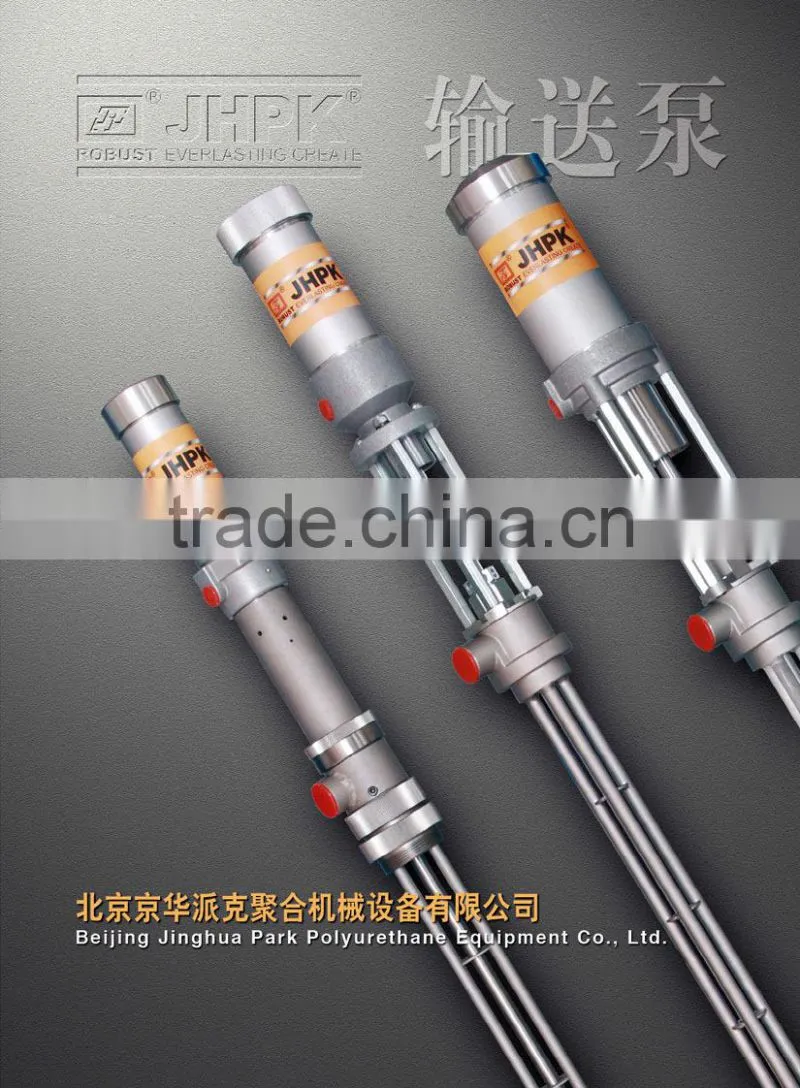

Mainframe: 1 set Spray gun: 1 set Heating and preserved pipe: 15m Connecting pipe for spray gun: 1.5m Transfer pump: 2 sets |
| Technical Data: |
|---|
Electrical source: 220v 7000w Air source:0.5~0.8Mpa(70~120psi) ≥ 0.9m3/min Output: 2~6.8kg/min Heating device power for material: 2500w ×2 Heating power for pipe heating: 2000w Single component output pressure: 5~10Mpa (700~1500psi) The range of the ratio: 1:1~2:1 |
| Technical Data: |
Volume: 800x700x1100(mm) Weight: 200kg |
overseas third-party support available
Beijing Jinghua Park Polyurethane Equipment Co. Ltd. is a modern, dynamic and expanding Chinese private enterprise located in Beijing the capital of China. JHPK specializes in developing, manufacturing and distributing the polyurethane materials & the relevant high pressure airless polyurethane spray perfusion equipment. The wide varieties of single or double-components high temperature airtight spray polyurethane equipment can be used in many areas such as waterproof, antisepsis, construction, dope and fireproof.
JHPK and its shareholders take pride in the strict, scientific and professional management and consummate quality assurance system. With the years of production experience JHPK widely imbibed the advanced technology from China and worldwide. Especially the uses of world famous brand parts make the equipments have excellent performance.
