Help CenterJHPK-IIIB Polyurethane Spray Foam Equipment for Wall/roof Insulation
Related Products

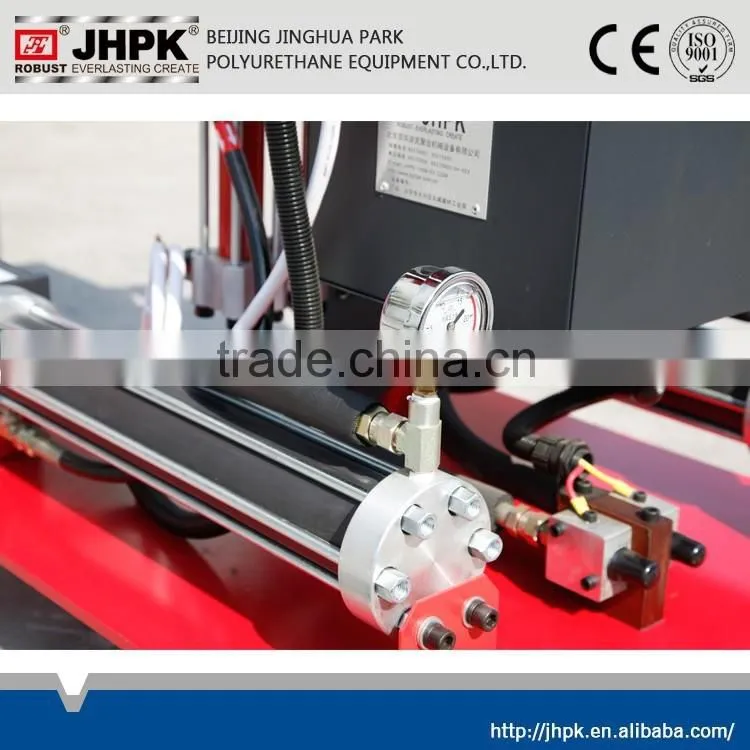

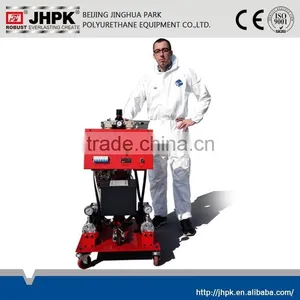

JHPK-IIIB ,High-pressure Polyurethane Spray and injection Equipment.The parts of the equipment are from America making sure the pressure is enough for mixing the double component materials together.It has the separate heater which is 2500 watt;provides the reliable heat source for the row materials.The pipe of heating and preserved is 15 meters and it preserves the heat energy of the materials.The system of spray gun with non-solvents washing makes the machine easy to operate,and maintain.
Technical Parameter:
| Electrical source | 220v 7000w |
| Air source | 0.5~0.8Mpa(70~120psi)≥0.9m3/min |
| Output | 4~8kgsmin |
| Heating device power for material | 2500W*2 |
| Heating power for pipe heating | 0℃~90℃ |
| Heating power for pipe heating | 2000w |
| Single component output pressure | 5~10Mpa (700~1500psi) |
| Output pressure | 9~20 Mpa |
| Dimension | 1000mm*1000mm*1550mm |
| Weight | 240Kg |
Standard Configuration:
| Mainframe | 1set |
| Spray gun | 1set |
| Transfer pump | 2 set |
| Connecting pipe for spray gun | 1.5 meter |
| Max. Pipe length | 45m(optional) |
| Heating and preserved pipe | 15m(standard) |
The equipment has obtained CE certification, safe and environmental protection.
Having the proprietary property rights in design and production, several national patents have been applied and approved.
Beijing Jinghua Park Polyurethane Equipment Co.Ltd. is a modern, dynamic and expanding Chinese private enterprise located in Beijing the capital of China.JHPK specializes in developing,manufacturing and distributing the polyurethane materials & the relevant high pressure airless polyurethane spray perfusion equipment. The wide varieties of single or double-components high temperature airtight spray polyurethane equipment can be used in many areas such as waterproof, antisepsis, construction, dope and fireproof.
JHPK and its shareholders take pride in the strict, scientific and professional management and consummate quality assurance system.With the years of production experience JHPK widely imbibed the advanced technology from China and worldwide. Especially the uses of world famous brand parts make the equipments have excellent performance.
