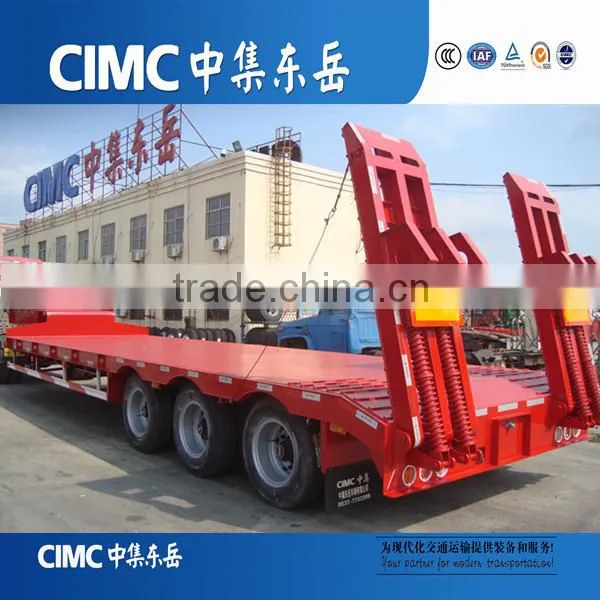

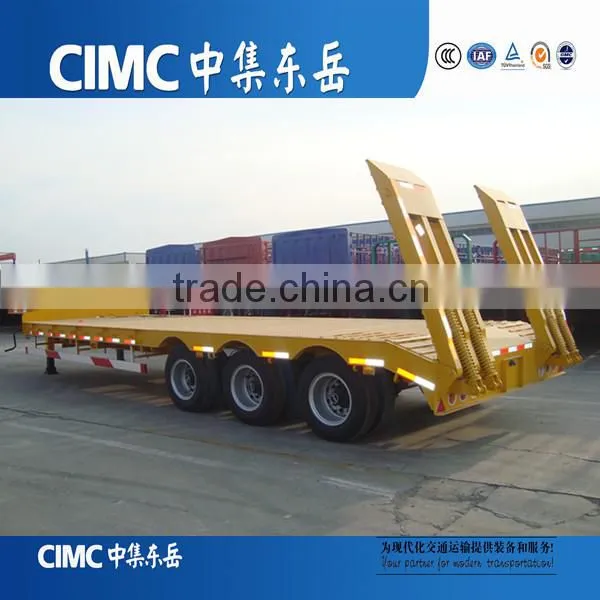

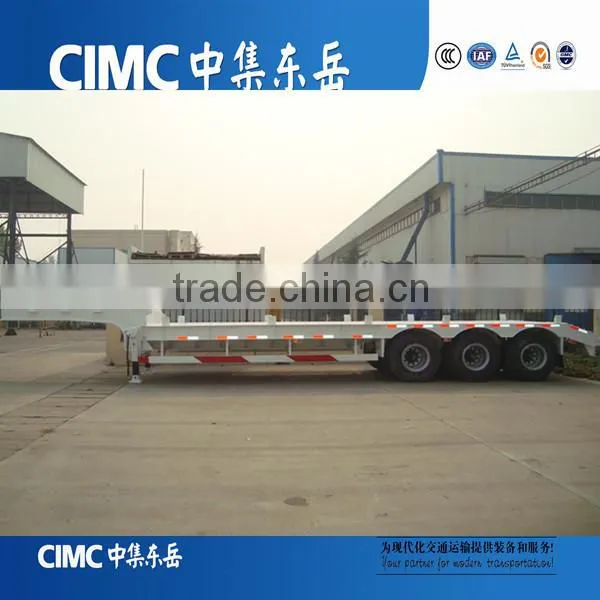

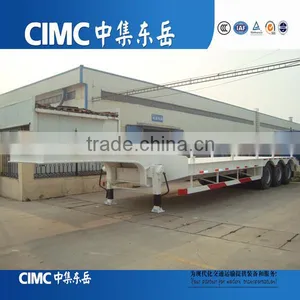

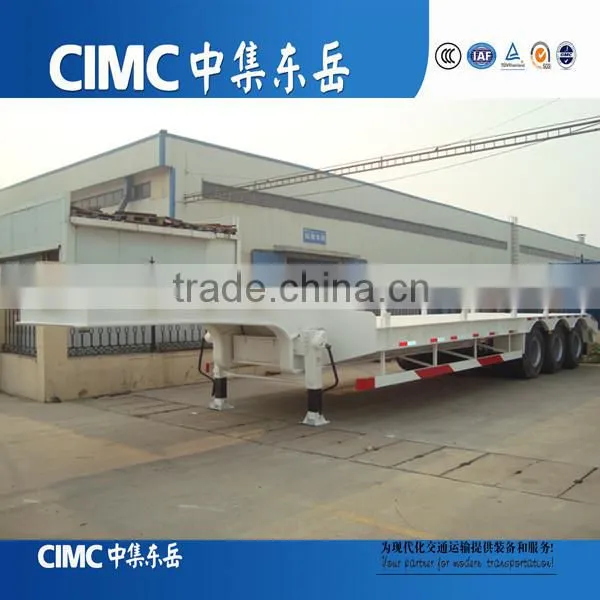

3 axles gooseneck lowbed used semi trailer with FUWA axle
3 axles gooseneck lowbed used semi trailer with FUWA axle -------- Specification
Type |
3 Axles Low bed Semi Trailer |
Dimension |
13000*3000*1150 mm |
Max payload |
60ton |
Main beam |
The height of the beam is 500mm, upper plate is18mm, down plate is 20mm, middle plate is 10mm. |
Side beam |
20# U shaped steel |
Platform thickness |
4mm Checked Steel |
OEM Parts Configuration | |
King pin |
90# or 50# |
Land gear |
CIMC Standard 28ton |
Axle |
FUWA Brand, 3x13ton |
Suspension |
Normal suspension |
Leaf spring |
10/10/10 |
Tire |
Double Coins Brand, 825R20-14 16PR, 12 pcs |
Brake Val |
WABCO |
Brake Chamber |
6 Double |
Electrical System |
Voltage: Chinese Standard 24V; Receptacle: 7 ways (7 wire harness) |
Accessories | |
Tool box |
1 pcs |
Spare wheel carrier |
2 pcs |
Side marker lamp |
LED lamp |
Marking and Color |
By customer’s requirement |
3 axles gooseneck lowbed used semi trailer with FUWA axle -------- Details
3 axles gooseneck lowbed used semi trailer with FUWA axle -------- Manufacture Equipment
3 axles gooseneck lowbed used semi trailer with FUWA axle -------- FAQ
1. How do you transport the semi trailers?
We transport the semi trailers by bulk or container. Our factory possesses long-term cooperation with ship agency which can provide you lowest shipping fee.
2. Can you satisfy my special requirement?
Definitely! We are direct manufacturer and we have strong producing capacity and R&D capacity!
3. How can you guarantee quality?
Our raw material and OEM parts including axle, suspension, tyre, are purchased centralized by CIMC group,
every node will be inspected strictly. Moreover, advanced equipment rather than only worker is been applied
during the whole producing process to ensure the welding quality.
Any question can call me or e-mail me directly.
