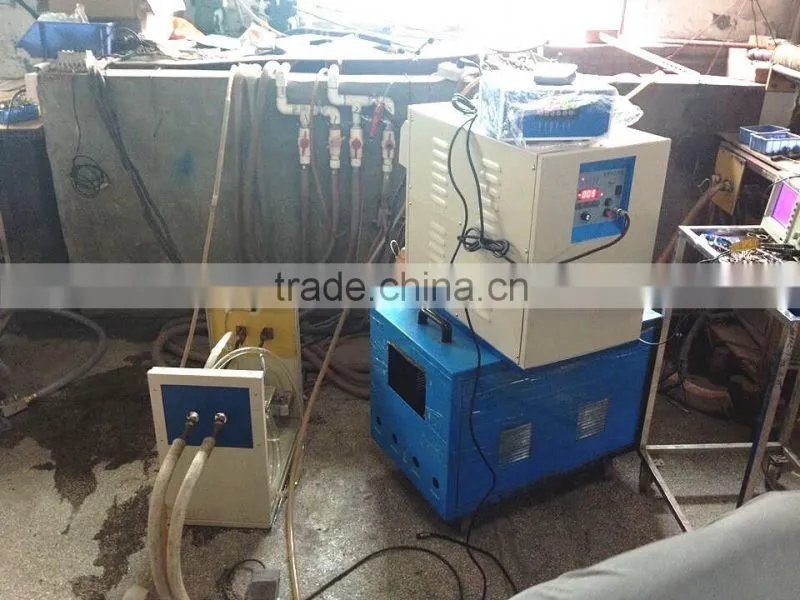

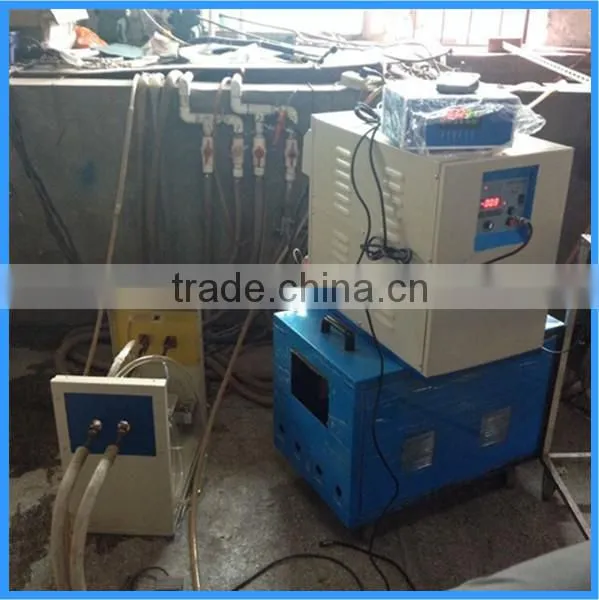

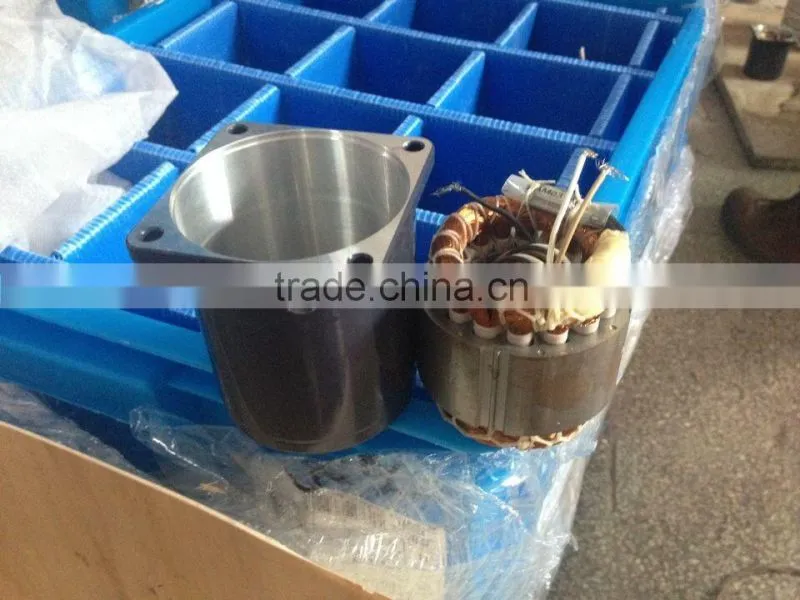

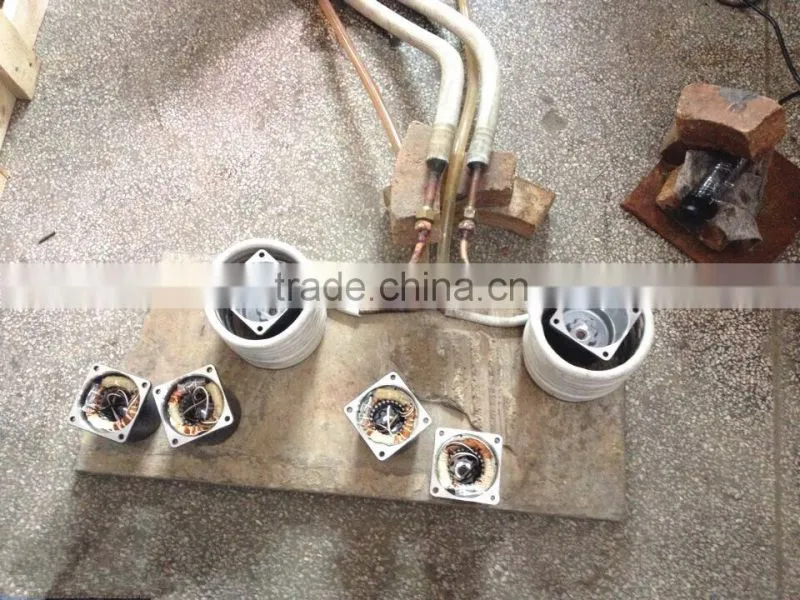

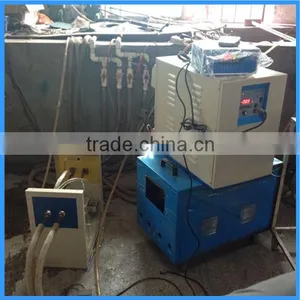

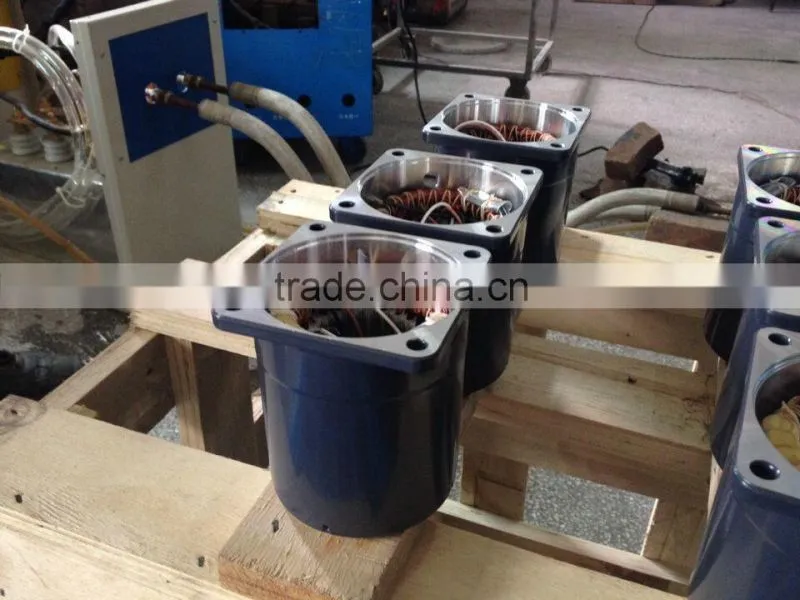

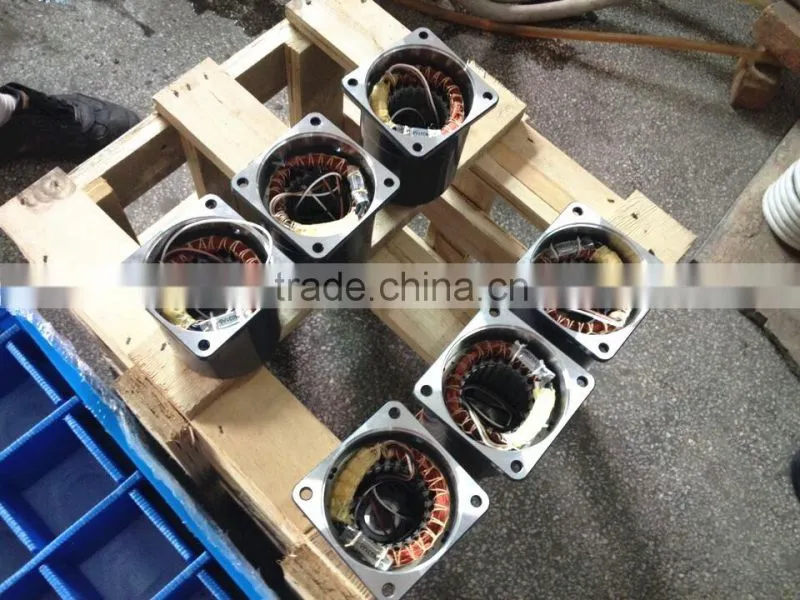

Rotor Heat Shrink Fitting Induction Heating Machine
1. Big power, low frequency and good diathermancy.
2. High frequency, low power consumption, easy installation and simple operation.
3. It can continuously work for 24 hours for the comprehensive full load design.
4. It adopts the IGBT inverter circuit in parallel connection, which ha high load adaptability.
5. It has functions as over-voltage, over-current, over-heat, phase loss and water shortage alarm indications as automatic control and protection.
6. Compared with other heating models, it can significantly promote the economic benefits, improve the quality of heated work pieces, save the energy and material, alleviate labor intensity and improve the production environment.
Model |
JLZ-35KW |
|
Input power desire |
3 phase 380V 50/60HZ |
|
Oscillate power max |
35KW |
|
Max input current |
51A |
|
Oscillate frequency |
1-20KHZ |
|
Cooling water desire |
>0.3MPa 4L/Min |
|
Duty cycle |
100% 40°C |
|
Dimensions |
Generator |
620*550*860mm |
Transformer |
620*480*500mm |
|
Net weight |
43kg/50kg |
|
Cable length |
2-6(Meters) |
|
Item |
Name of machine or parts |
Specification |
Amount |
1 |
JLZ-35KW Generator |
- |
1 pc |
2 |
JLZ-35KW transformer |
- |
1 pc |
3 |
Foot switch |
3 core |
1 pc |
4 |
Induction Coils |
- |
2 sets |
5 |
Coil connect pole |
- |
2 set |
6 |
Instruction Manual |
- |
1 |
7 |
Packing list and receipt |
- |
1 |
8 |
Guarantee card |
- |
1 |
9 |
Products certificate |
- |
1 |
