2016 Strong Power Backhoe Loader

US$ 14,000 - 40,000 MOQ: 1 Set

Key Specifications

Condition:

New

Brand Name:

Model Number:

WZ30-25

Qinhuangdao Lulong HT Engineering Machinery Factory

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Brand Name HT

Model Number WZ30-25

Place of Origin Henan, China

Type Backhoe Loader

Moving Type Crawler Loader

Dimension(Long * Breadth * High) 7250mmx2100mmx2950mm

Rated Load 2500

Certification ISO9001:2008

Warranty 1 Year

After-sales Service Provided Engineers available to service machinery overseas

2016 Strong Power Backhoe Loader :

Product Description

Applications And Features :

1 Machine adopts articulated front and rear frame,flexible operation, small turning radius.

2 Increased deluxe cab,thickened tempered glass,bright and spacious.

3 360 degree rotation shock absorbing seat,with safety belt, improve the comfort and safety for driver.

4 Multi function pipeline,can be fitted with broken hammer and other attachments.

5 When breaking rock and deep excavation,more stable than other forms of equipment.

6 Hydraulic oil tank installed hydraulic oil filter to ensure the cleaning of hydraulic oil.

Technical Parameters And Photos :

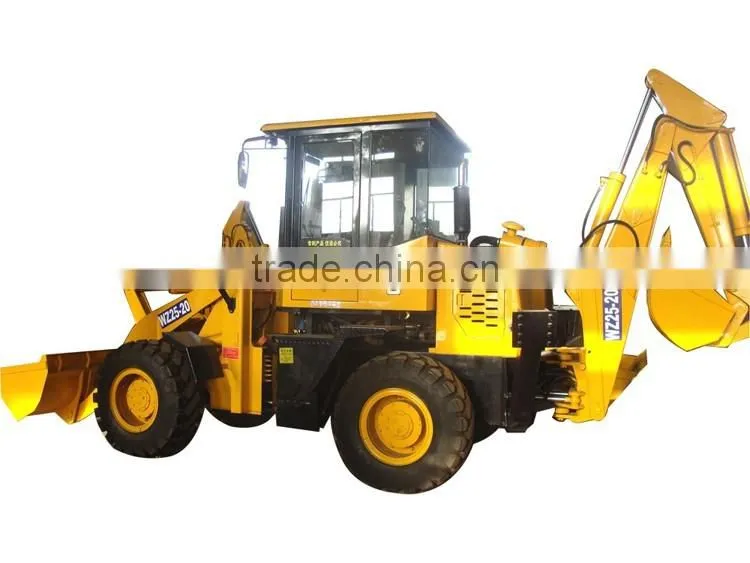

WZ25-20
Excavating bucket capacity	0.3 m3
Loading bucket capacity	1.1 m3
Rated load capacity	2500kg
Engine	80.46Hp (60kw)
Max. breakout force	49KN
Max. Traction	38kn
Tipping load	32KN
Forward I gear shift	0-11km/h
Forward II gear shift	0-27km/h
Reverse I gear shift	0-10km/h
Reverse II gear shift	0-26km/h
Dumping height	2800mm
Dumping reach when at max. dumping height	880mm
Max excavating depth	4100mm
Max excavating radius	5000mm
Revolute angle of movable arm	180°
Max steering angle	35°
Min turning radius (front wheel center)	4190mm
Grade ability	45%
Drive type	4WD
Operation weight	6100kg
Dimension(LWH)	7100mm2090mm2900mm

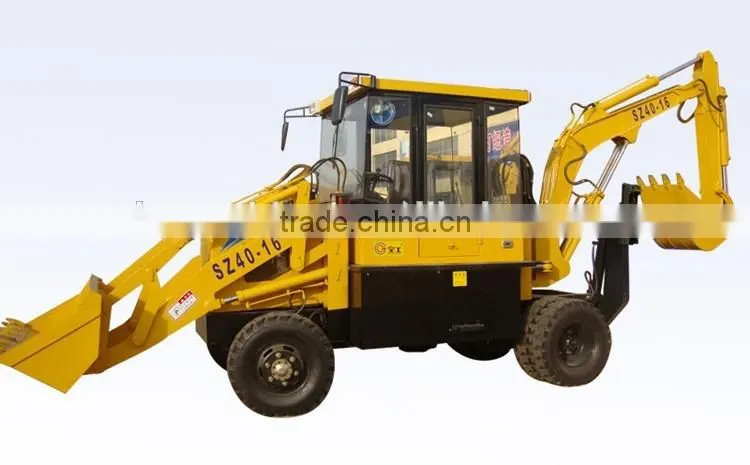

SZ40-16
Excavating bucket capacity	0.4m3
Loading bucket capacity	0.9m3
Rated load weight	1600kg
Working pressure	20Mpa
Engine	80.46Hp (60kw)
Max. excavating height	6000mm
Max. excavating depth	3200mm
Max. excavating radius	5550mm
Max. excavating width	720mm
Dumping height	2850mm
Dumping distance	1000mm
Dumping time	3s
Lifting time of movable arm	3.8s
Descending time of movable arm	3.4s
Max. flux	63ml/r
Max. Tractive force	30kn
Grade ability	35°
Ground clearance	220mm
Wheel base	2800mm
Tread	1550mm
Tyre	825-16
Drive type	4WD
Operation weight	6500kg
Dimension(LWH)	7500mm2100mm2700mm

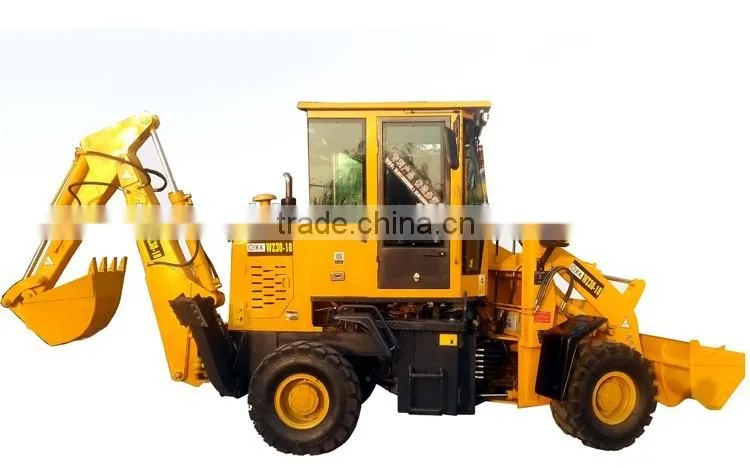

WZ30-18
Excavating bucket capacity	0.3m3
Loading bucket capacity	1.0 m3
Rated load weight	1800kg
Working pressure	20Mpa
Engine	68.4Hp (51kw)
Max excavating height	5000mm
Max excavating depth	3600mm
Max excavating radius	5000mm
Max excavating width	550mm
Dumping height	3600mm
Dumping distance	950mm
Min turning radius	4300mm
Max flux	50ml/r
Max tractive force	38KN
Max. breakout force	49KN
Max. digging force	44KN
Max. traveling speed(forward, backward)	≤25km/h, 25km/h
Grade ability	45%
Ground clearance	220mm
Wheel base	2290mm
Tread	1500mm
Tyre	20.5/70-16
Drive type	4WD
Operation weight	4800kg
Dimension(LWH)	6900mm2080mm2900mm

WZ30-25
Excavating bucket capacity	0.4m3
Loading bucket capacity	1.2m3
Rated load capacity	2500kg
Engine	107.3Hp (80kw)
Max breakout force	49KN
Max traction force	38kn
Tipping load	32KN
Forward I gear shift	0-11km/h
Forward II gear shift	0-27km/h
Reverse I gear shift	0-10km/h
Reverse II gear shift	0-26km/h
Dumping height	3000mm
Dumping reach when at max. dumping height	880mm
Max excavating depth	4100mm
Max excavating radius	5000mm
Revolute angle of movable arm	180°
Max steering angle	35°
Min turning radius (front wheel center)	4190mm
Grade ability	45%
Drive type	4WD
Operation weight	6800kg
Dimension(LWH)	7250mm2100mm2950mm
