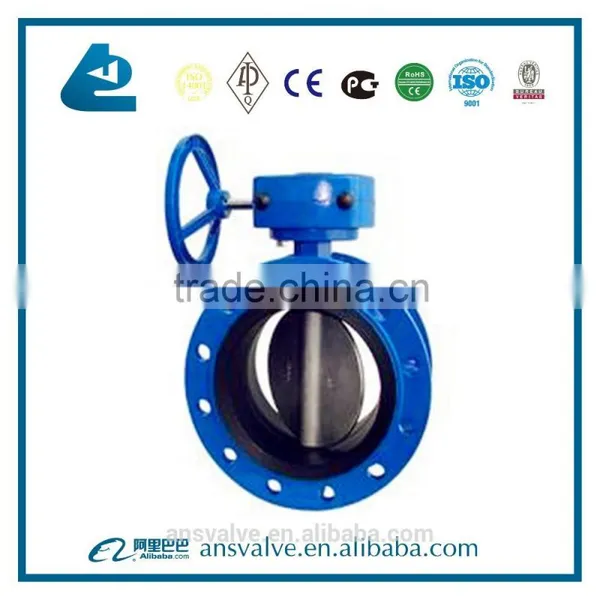

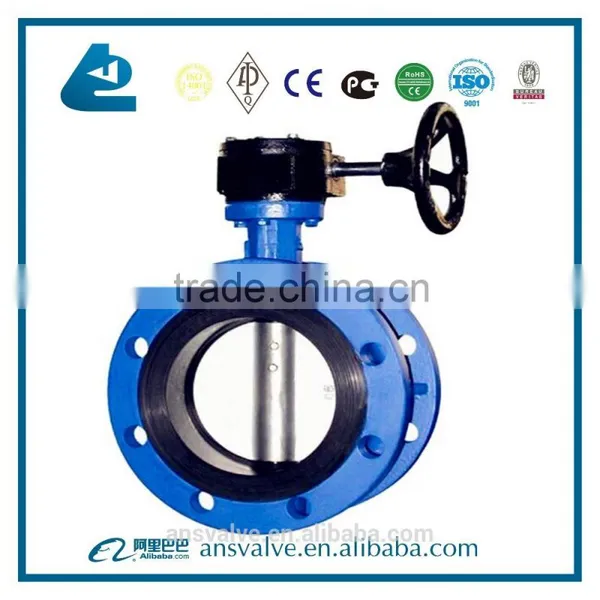

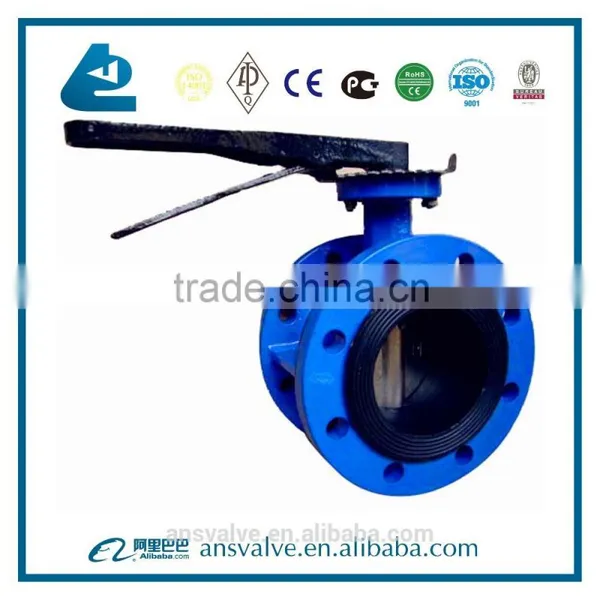

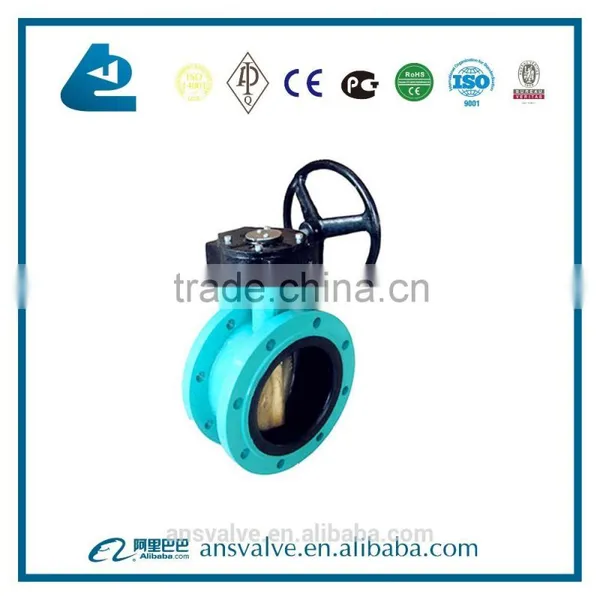

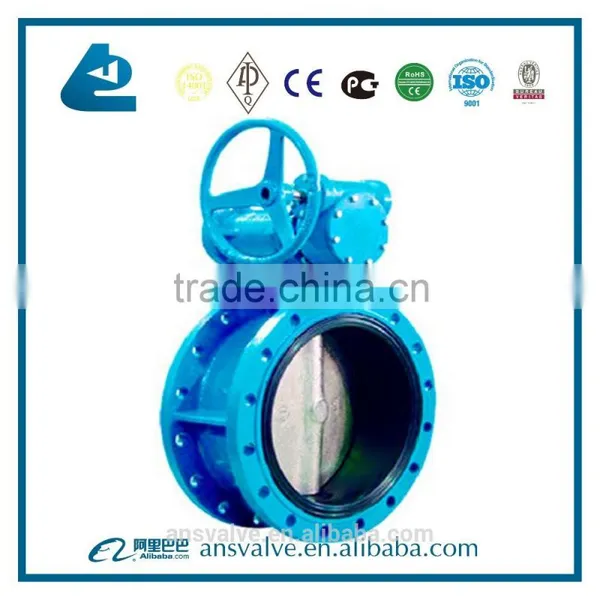

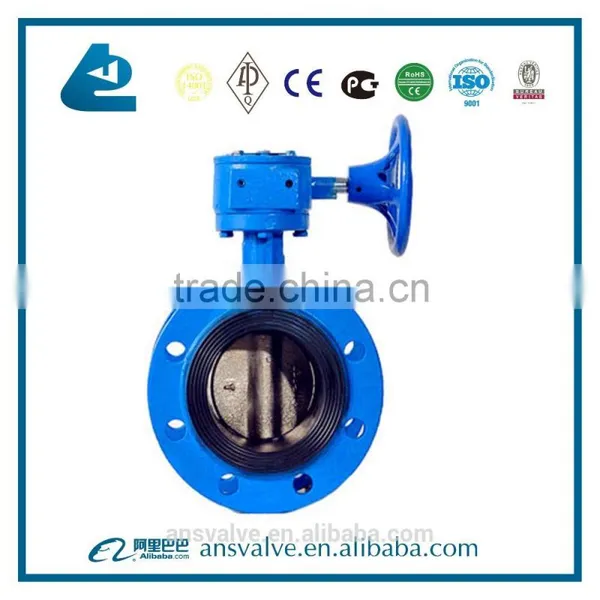

China Manufacturer Double Flanged Rubber Butterfly Valve with Hand Lever and Worm Gear
1)Small in size and light in weight and maintaince.It can be mounted wherever needed.
2)Simple, compact structure, quick 90 degree on-off operation.
3)Disc has two-way bearing, perfect seal, without leakage under the pressure test.
4)Flow curve tending to straight-line. Excellent regulation performance.
2.Main Parts and Materials
Parts name |
|
Body |
CI/DI/WCB/ALB/CF8/CF8M |
Disc |
DI/ALB/Rubber lined Disc/ 1.2501/CF8M/1.4529/CF8/Hastelloy Alloy/Monel |
Stem |
416/304/316/431/17-4PH |
Seat |
NR/Hypalon/EPDM/Neoprene/NBR/Wear-Resistant EPDM/Viton/Silicon/Heat-Resistant EPDM/White NBR/White EPDM/EPDM (NSF)/PTFE |
Face to face |
Flange Connection |
Top Flange |
BS5155short,ISO5752,DIN3202 F16 |
DIN PN 10/16/25;ANSI B16.1,BS4504,ISO PN 10/16 |
ISO5211 |
| Size | DN50-DN2200 |
| Design Standard | ANSI/AWWA C504 |
| Suitale medium | Fresh water, sewage, sea water, air, vapor, food, medicine, oils, alkalis, salt etc. |
| Suitable Temperature | -40c~80c |
Nominal Diameter |
Nominal Pressure |
Test Pressure |
|
Shell test |
Seal test |
||
DN40-DN600 |
1.0~1.6, (150/200PSI) |
1.5~2.4 |
1.1~1.76 |
DN700-DN1200 |
1.0MPa (150PSI) |
1.5 |
1.1
|

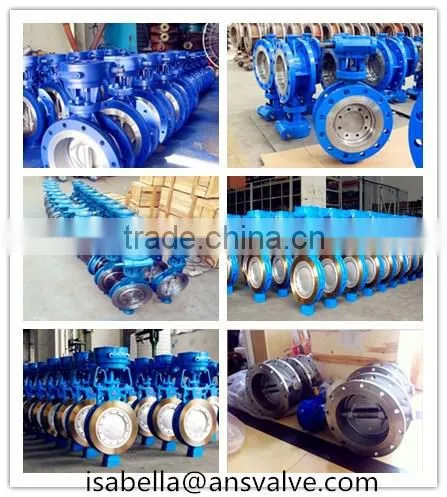

Packing and Transport:
Our valves sell all over the world!
Welcome to join us!
Our factory & Workshop:
Our company established in year 2001. Our plant occupies 6000 square kilometers and we have more than 100 sets of lathes. We are professional Valve manufactuer for about 20 years. We have 4 Engineers, 10 more Technicians, 10 more Craftsmen.
