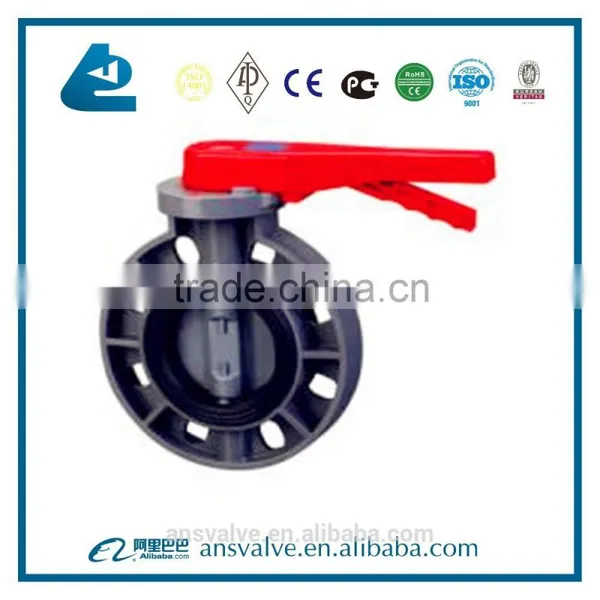

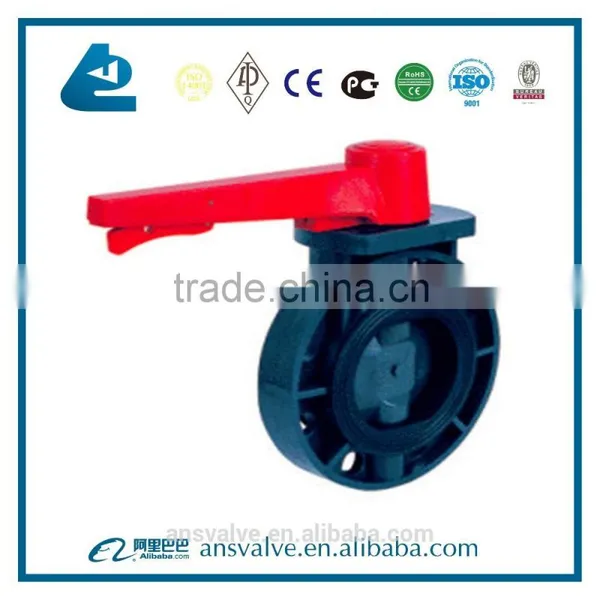

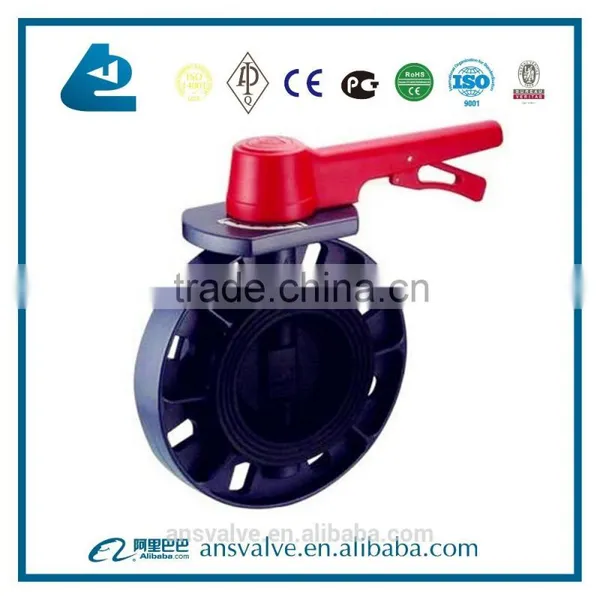

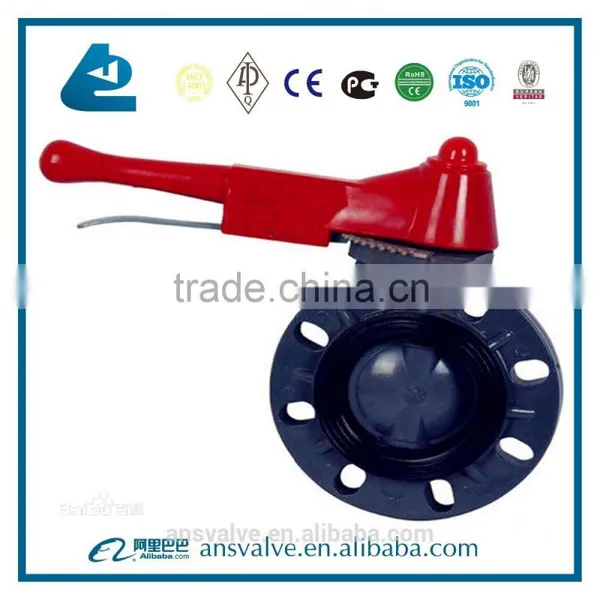

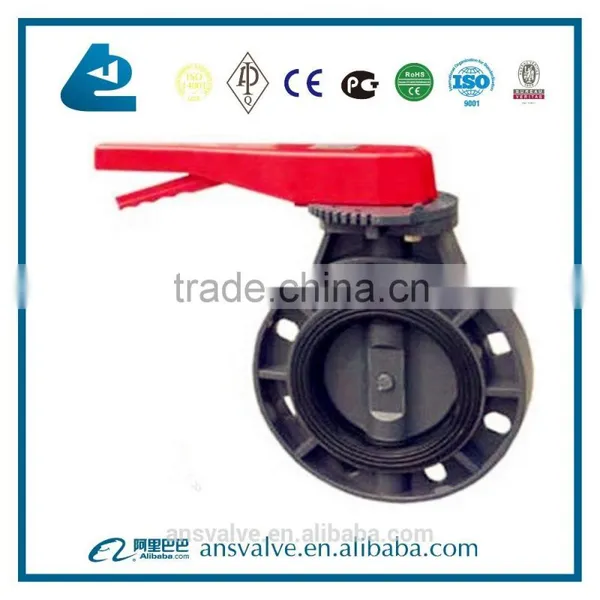

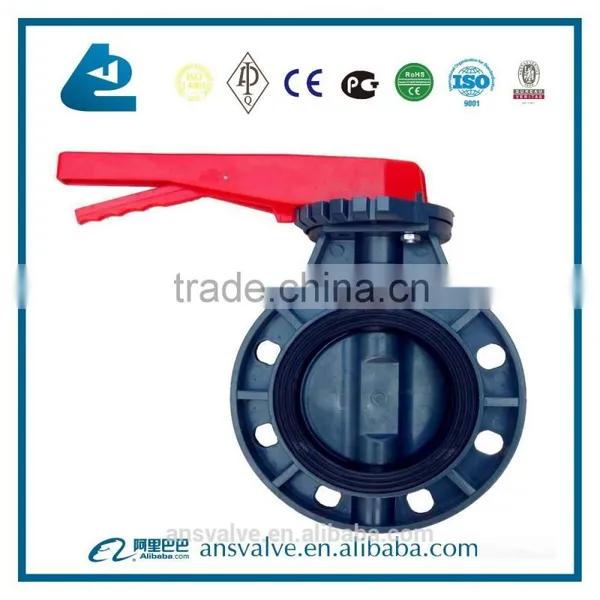

gearbox and hand lever pvc cpvc pvdf pp butterfly valve
butterfly valve
pvc butterfly valve
butterfly valve dn200
We Tianjin Ansheng Valve Co., Ltd specialize in valve manufacturing for 15 years, with best quality, best service and competitive price, and we are Alibaba Gold Supplier.
More services we can provide:
1. Professional free design
2. OEM support
3. Low MOQ
4.Fast delivery
5. Free sample
6. Door to door service
| Type | Size | Standard | Material | Seat | O-ring | Disc | End type |
| VP-820 | 2"~24" | ANSI, JIS, DIN | PVC | EPDM, FPM | EPDM, FPM | PP | Flanged |
| VP-821 | 2"~24" | ANSI, JIS, DIN | CPVC | EPDM, FPM | EPDM, FPM | CPVC | Flanged |
| VP-823 | 2"~24" | ANSI, JIS, DIN | PVDF | EPDM, FPM | EPDM, FPM | PVDF | Flanged |
| VP-824 | 2"~24" | ANSI, JIS, DIN | PP | EPDM, FPM | EPDM, FPM | PP | Flanged |
| NO. | PART | MATERIAL | Q'TY |
| 1 | BODY | UPVC,CPVC,PP,PVDF | 1 |
| 2 | DISC | UPVC,CPVC,PP,PVDF | 1 |
| 3 | SEAT SEAL | EPDM,FPM | 1 |
| 4 | STEM | SUS 410 | 1 |
| 5 | O-RING | EPDM,FPM | 2 |
| 6 | O-RING | EPDM,FPM | 2 |
| 7 | HANDWHEEL | FC20 | 1 |
| 8 | GEAR BOX | CI POWDER PAINT | 1 |
| 9 | BOLT&WASHER | SUS 304 | 4 |
| 10 | SPRING PIN | STEEL | 1 |
| 11 | PACKING | EPDM 6"~14" | 1 |
| 12 | SMALL HANDLE | STEEL | 1 |
| 13 | KEY | STEEL | 1 |
| 14 | SEAL | EPDN 14"~24" | 2 |
| 15 | METAL STAT | SUS 16"~24" | 1 |
| 16 | INSERT NUT | SUS 16"~24" | 4~8 |
| 17 | PIN | SUS | 1 |
Pressure rating : 2"~10" 150 PSI,
12"~14" 100 PSI,
16" 86 PSI,
18" 72 PSI,
20"~24" 51 PSI
(Standard stem: SUS 410+ heat process
The stem of SUS 304, or SUS 316, or SUS 316L the working pressure is lower.)
Lower torque and seal hermetically
Low flow loss
The opening angle of the disc could be clearly through the arrow on top of the gear box.
Ideally suited in a limited piping space
Easy to mount actuator with flat zone design at the top of valve .

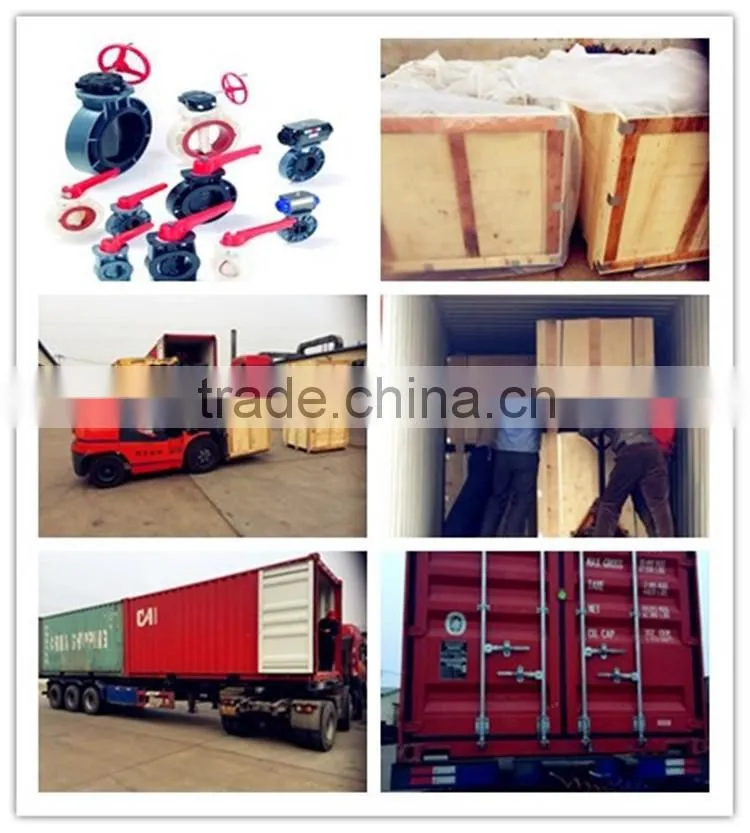

Packing and Transport:
Our valves sell all over the world!
Welcome to join us!
Our factory & Workshop:
Our company established in year 2001. Our plant occupies 6000 square kilometers and we have more than 100 sets of lathes. We are professional Valve manufactuer for about 20 years. We have 4 Engineers, 10 more Technicians, 10 more Craftsmen.
