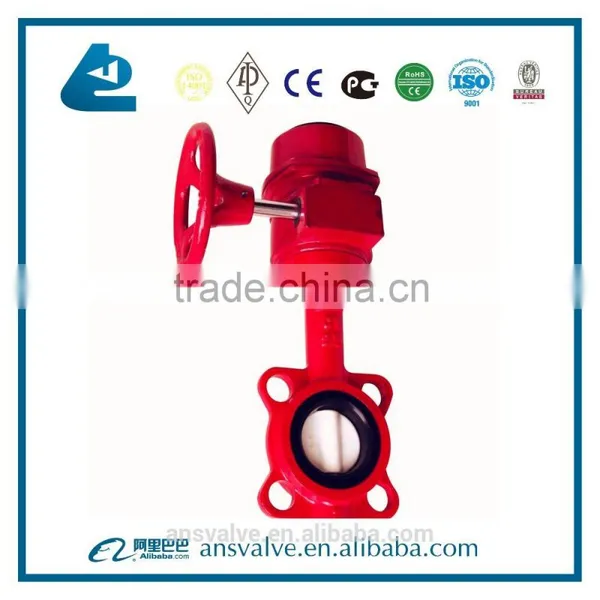

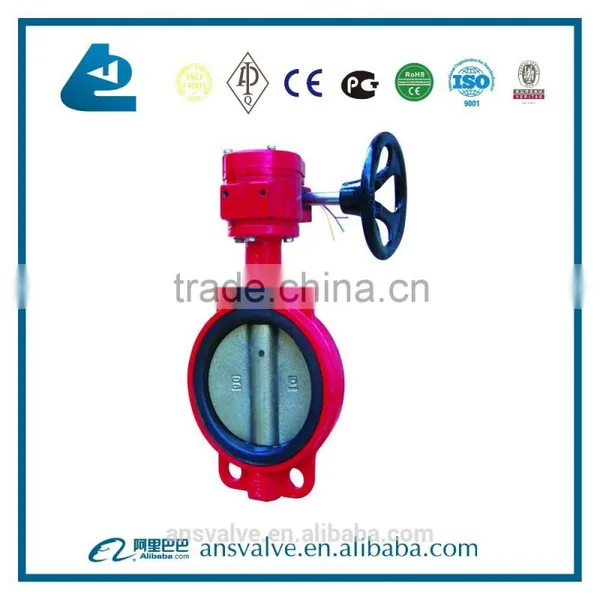

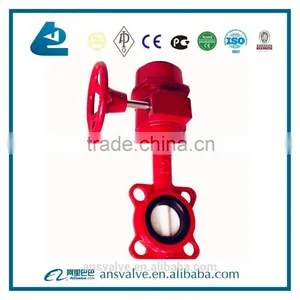

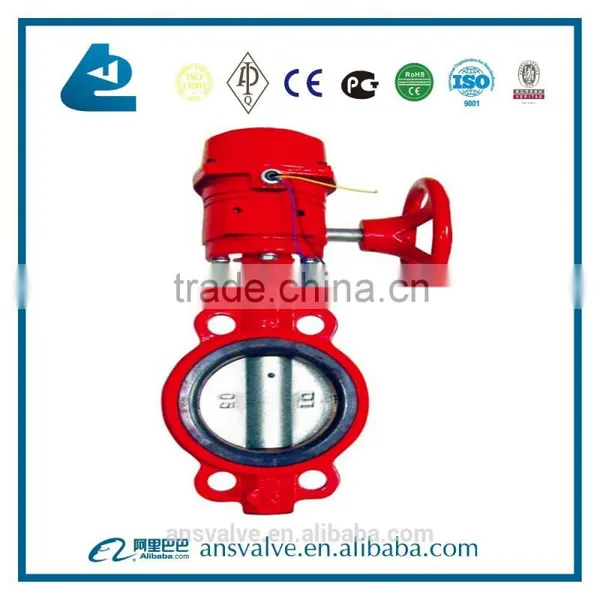

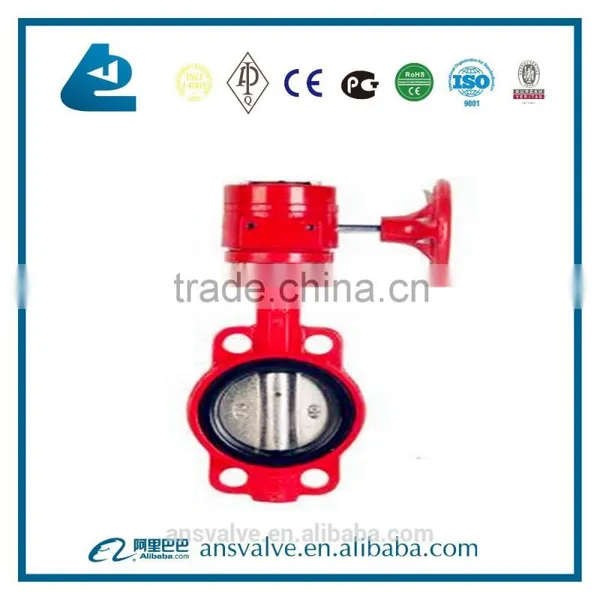

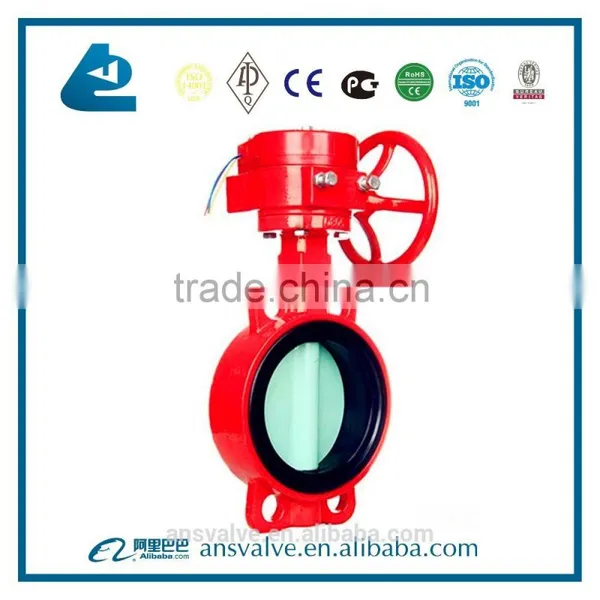

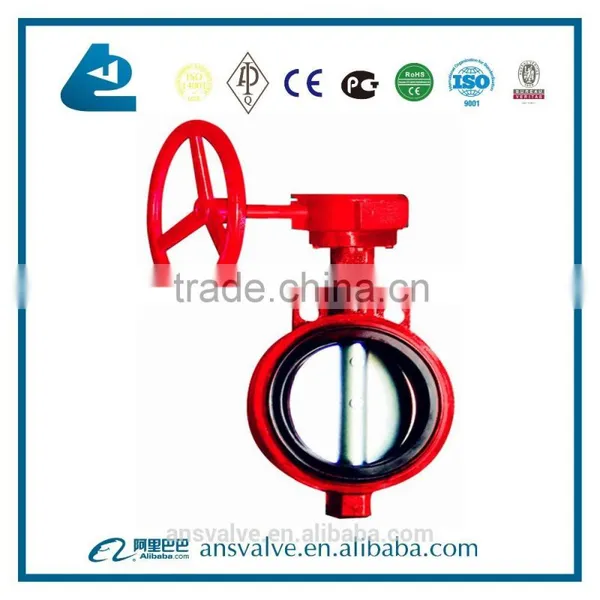

Fire Signal Butterfly Valve
Features:
1.Small in size and light in weight. Easy installation and maintenance. It can be mounted wherever needed.
2.Simple and compact construction, quick 90 degree on-off operation.
3.Flow curve tending to straight line. Excellent regulation performance.
4.Long service life. Standing the test of thousands opening/closing operation.
5.Wide selection of materials, applicable for various media.
Specifications:
| Design standard | Face to Face | End Flange | Test&Inspection |
|
MSS SP-67 API60 EN593
|
API609 ISO5752 series20 BS5155 |
DIN PN10/16/25 ANSI B 16.1 BS4504 ISO PN10/16 JIS B 2212/2213 BS 10table D BS 10table E |
API 598 |
Technical Parameters:
| Lug type worm actuated wafer butterfly valve | |
| Product Model | LTD71X-10/16 |
| Nominal Diameter | DN40~200mm |
| Nominal Pressure | PN1.0~1.6MPa |
| Suitable Medium | Water,gas,oil,etc |
| Suitable Temperature | -23°c~121°c |
Main Materials:
| Body | CI/DI/WCB/SS |
| Disc | DI/ALB/WCB/MONEL/CF8/CF8M |
| Stem | SS416/SS304/SS316/WCB |
| Seat | EPDM/BUNA/NBR/NR/PTFE/HYPALON/VITON/NEOPRENE |

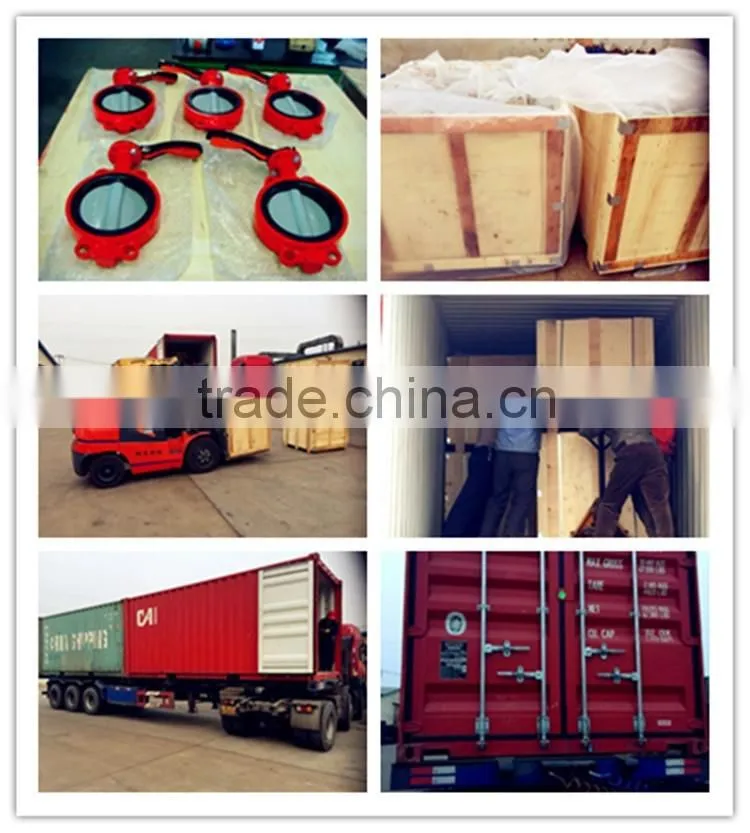

Packing and Transport:
We Tianjin Ansheng Valve Co., Ltd specialize in valve manufacturing for 15 years, with best quality, best service and competitive price, and we are Alibaba Gold Supplier.
More services we can provide:
1. Professional free design
2. OEM support
3. Low MOQ
4. Fast delivery
5. Free sample
6. Door to door service

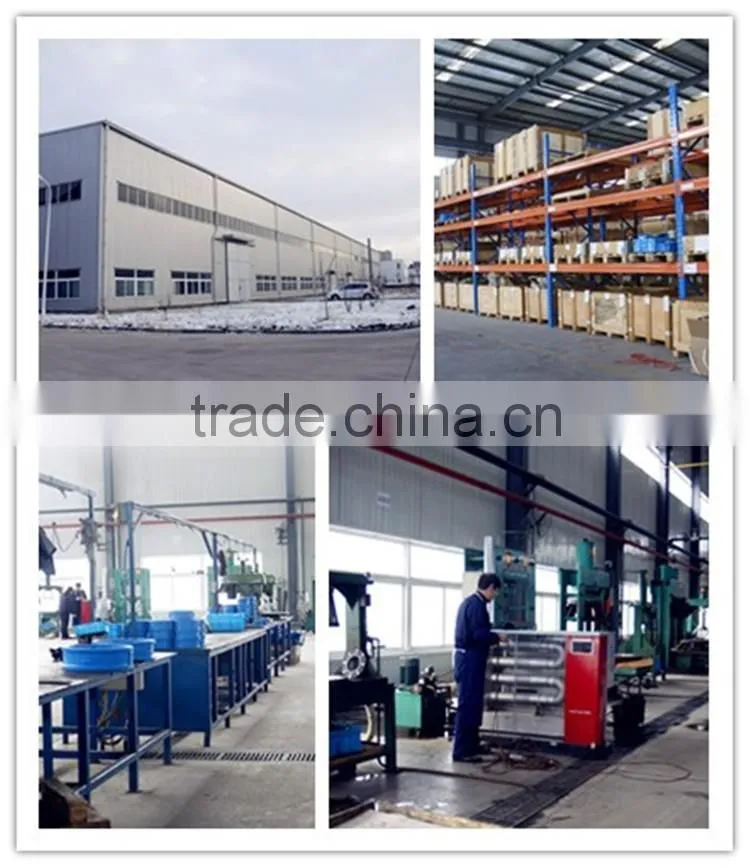

Our factory&workshops:
Our company established in year 2001. Our plant occupies 6000 square kilometers and we have more than 100 sets of lathes. We are professional Valve manufactuer for about 20 years. We have 4 Engineers, 10 more Technicians, 10 more Craftsmen.
Our customers:
24 hours online chat tool:
A good supplier is here waiting for you
Tel:+86-22-87176599
Mobile:+86-15802203592/15222411755
WhatsApp:+86-15802203592/15222411755
WeChat:+86-15802203592/15222411755
Skype:iiqqqi
QQ:3247806291
Send Inquiry to This Supplier
