Home > Industrial Equipment & Components > Valve > Ball Valve > Water Usage Butterfly Valve

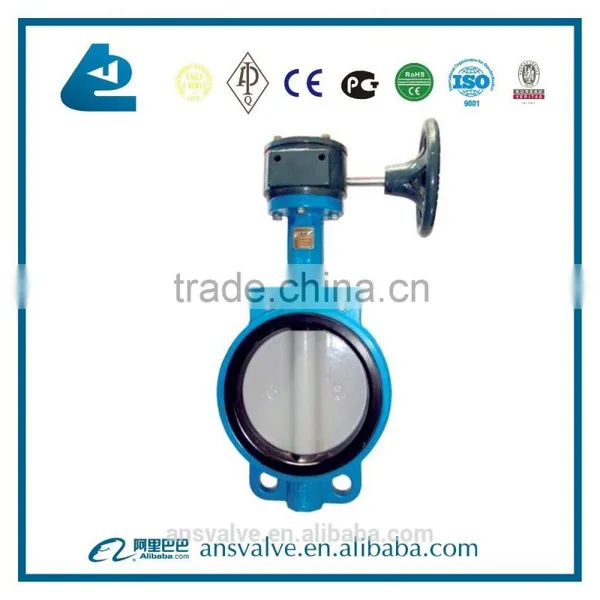

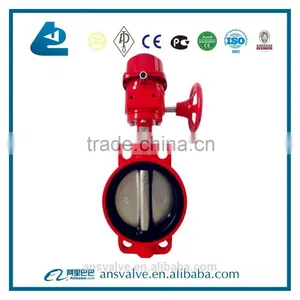

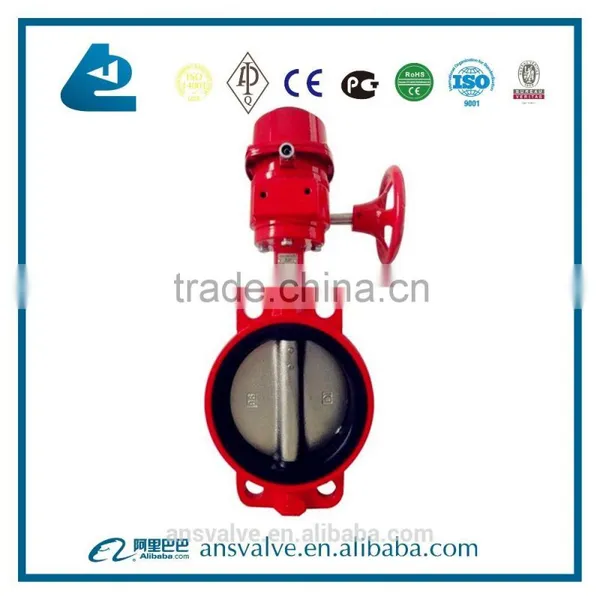

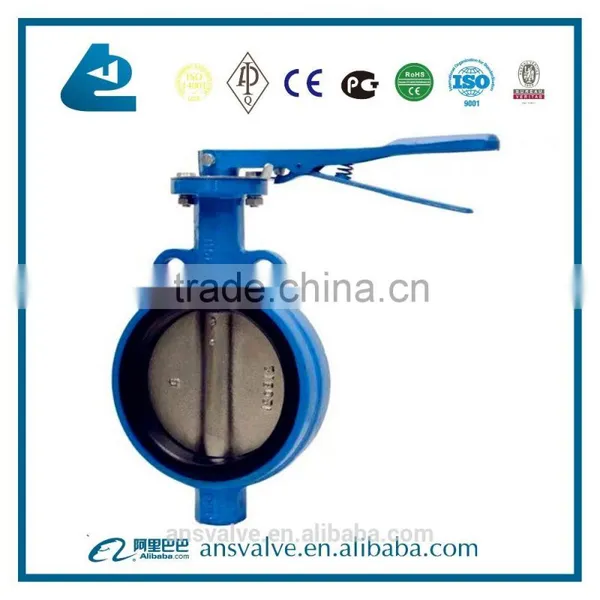

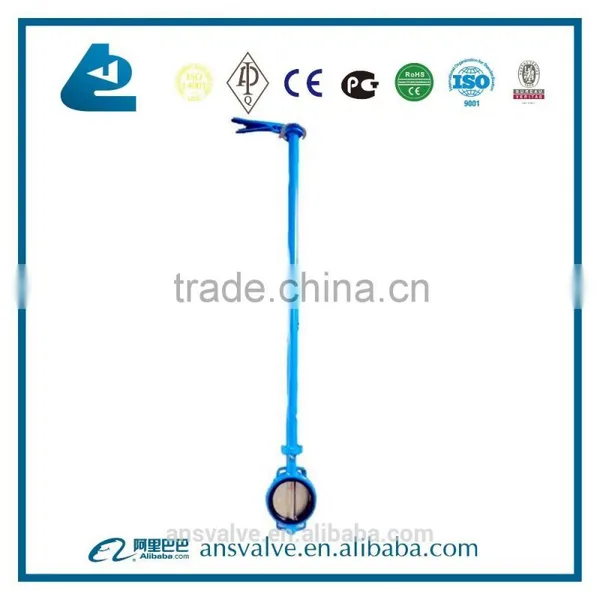

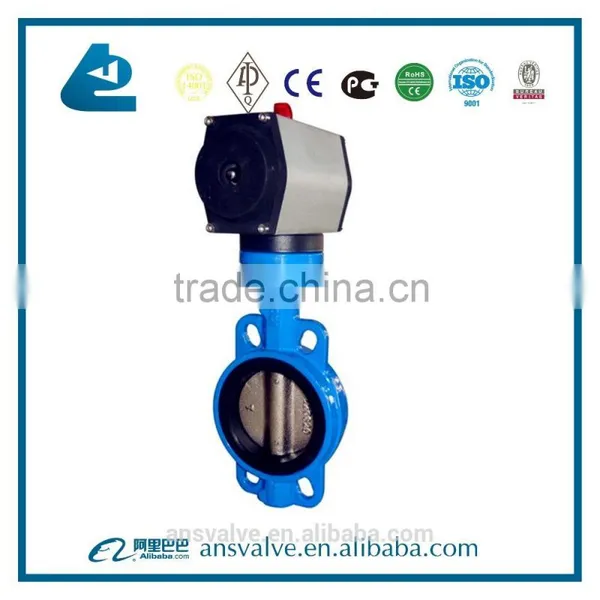

Water Usage Butterfly Valve

Name: Water Usage Butterfly Valve
Brand: OEM/ANS
SKU: 123802187

US$ 2 - 2 MOQ: 1 Piece

Key Specifications

Get Latest Price

Standard or Nonstandard:

Standard

Structure:

Butterfly

Pressure:

Medium Pressure

Contact Supplier Request Quote Chat Now

Tianjin Ansheng Valve Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Tianjin Port

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Standard or Nonstandard Standard

Structure Butterfly

Pressure Medium Pressure

Power Manual

Material Casting

Temperature of Media Medium Temperature

Media Water

Port Size DN40-DN1200

Place of Origin Tianjin, China

Model Number D71X-10/16

Brand Name OEM/ANS

Application General

Product Description

Water Usage Butterfly Valve

Features:

1.Simple and compact construction. Small in size and light in weight. Easy transportation, installation and maintenance.
2. Quick 90 degrees on-off operation. Minimized operating torque ,energy saving.
3. Excellent sealing performance with no leakage. Long service life.
4. Wide selection of materials ,applicable for various media..
5. Flow curve tending to straight line. Excellent regulation performance.

	Water Usage Butterfly Valve
Size:	DN50-DN1000
End flange:	ANSI B 16.1,EN1092,AS2129
Face to face:	ANSI B 16.10
Top flange:	ISO 5211
Normal pressure:	PN1.0/1.6MPa(150/200PSI)
Body:	CI/DI/WCB/ALB/CF8/CF8M
Disc:	DI/ALB/Rubber lined Disc/1.2501/1.4529/CF8/Hastelloy Alloy/Monel
Stem:	410/416/304/431/17-4PH/316/monel
Seat:	NBR/Hypalon/EPDM/Neoprene/NR/Wear-Resistant EPDM/Viton/Silicon/Heat-Resistant EPDM/White EPDM/EPDM(NSF)/PTFE
Suitable temperature:	-10~120
Medium:	Fresh water, sewage, sea water, air, vapor, food, medicine, oils, alkalis, salt etc.

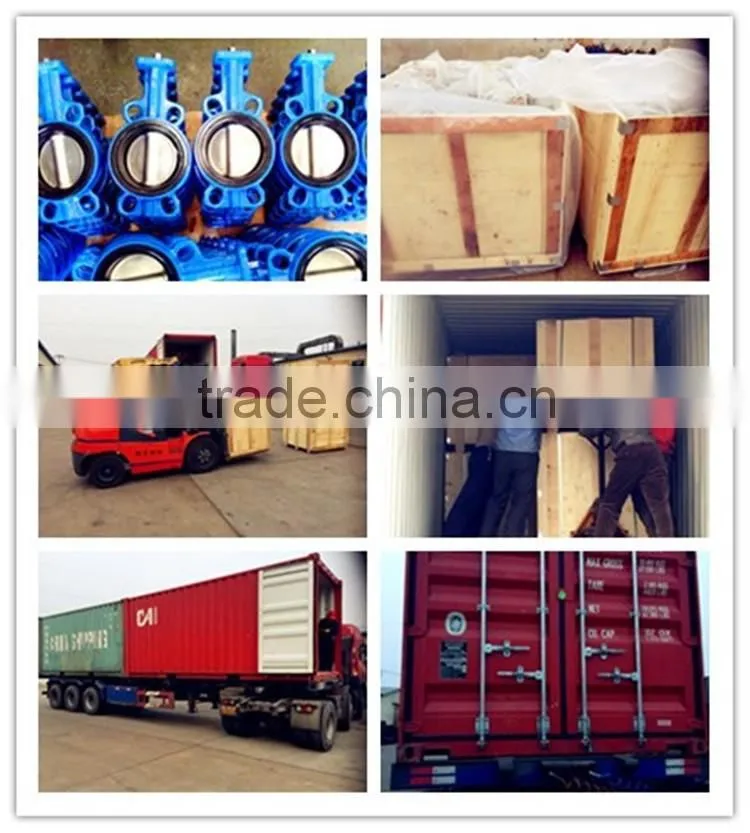

Packaging & Shipping

Packing and Transport:

Our Services

We Tianjin Ansheng Valve Co., Ltd specialize in valve manufacturing for 15 years, with best quality, best service and competitive price, and we are Alibaba Gold Supplier.

More services we can provide:

1. Professional free design

2. OEM support

3. Low MOQ

4. Fast delivery

5. Free sample

6. Door to door service
