Specifications
Aluminium Foil Container Making Machine:1.Operating easily.
2.Use imported electric components.
3.Pass ISO 9001:2008.

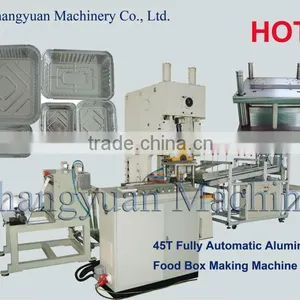

Aluminium Foil Container Making Machine is Fully Automatic machine, Adopt imported Seimens motor & PLC and Schneider electronic components to make sure the machine's top quality, the whole line include:
Auto-lubricated feeder -- control panel -- length controller-- 45T pneumatic press --mould-- full-automatic stacker—Scrap Presser
1). Changyuan Machinery Co.,Ltd has been specialized in studying & developing aluminium foil container
production line,aluminium foil container mould and other relatives machines more than 8 years.
2). We continuously offer technical support and consulting service to our customers,also we never stop
improving our technology & quality to make sure the machine which we send to customer in best quality
and condition.
3). This line suit for single or multi cavities moulds,it is equipped with a mould lifter which can lift and low the mould automatically and easily during changing the mould.
4). With our machine’s good quality and good after sales services,our machine has been exported to
more than 20 countries all over the world.
Main Technical data:
ITEM |
CYAL-45T |
CYAL-63T |
Strokes |
40-75times/min |
30-70times/min |
Motor Capacity |
6.5KW |
8KW |
Voltage |
3-380V 50HZ 4wires |
3-380V 50HZ 4wires |
Total Weight |
6500KGS (approximate) |
7500KGS (approximate) |
Area |
7mx3m |
7mx3m |
Press Dimension |
1620x1050x2960 |
1820x1250x3080 |
Core Coil Head Dia |
3min/6inch |
3min/6inch |
Max. Foil Roll Outer Dia |
700mm |
800mm |
Max. Foil Width |
550mm |
670mm |
Machine Parts:
Auto feeding part:
Pneumatic press:
Mould:
Auto Stacker:
Finished Products:
