Hot Product MS-25 Industrial Switch Mode Power Supply^Converter Adapter Switching Power Supply

Hot Product MS-25 Industrial Switch Mode Power Supply^Converter Adapter Switching Power Supply thumbnail-1
Hot Product MS-25 Industrial Switch Mode Power Supply^Converter Adapter Switching Power Supply thumbnail-2
Hot Product MS-25 Industrial Switch Mode Power Supply^Converter Adapter Switching Power Supply thumbnail-3
Hot Product MS-25 Industrial Switch Mode Power Supply^Converter Adapter Switching Power Supply thumbnail-4
Hot Product MS-25 Industrial Switch Mode Power Supply^Converter Adapter Switching Power Supply thumbnail-5
Hot Product MS-25 Industrial Switch Mode Power Supply^Converter Adapter Switching Power Supply thumbnail-6
Hot Product MS-25 Industrial Switch Mode Power Supply^Converter Adapter Switching Power Supply photo-1

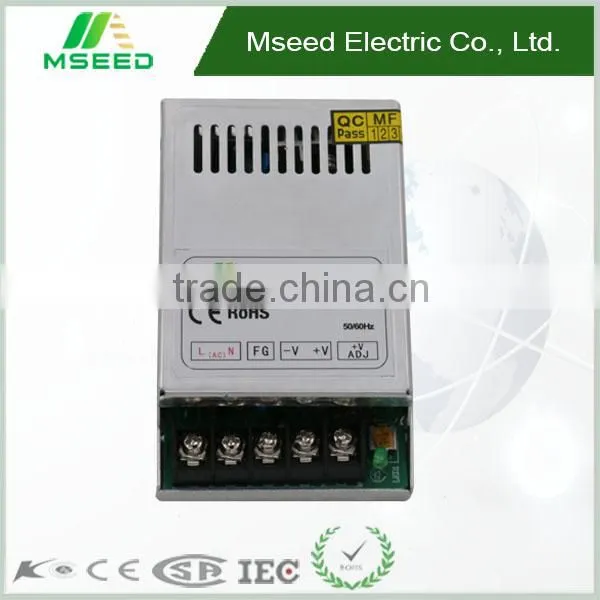

Hot Product MS-25 Industrial Switch Mode Power Supply^Converter Adapter Switching Power Supply photo-2

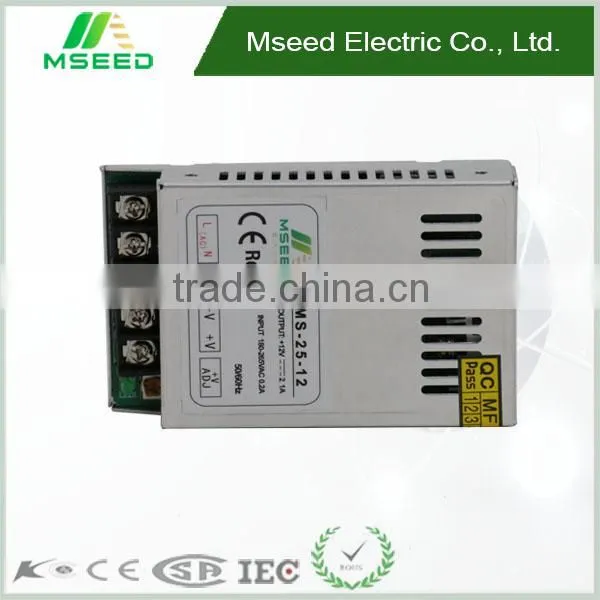

Hot Product MS-25 Industrial Switch Mode Power Supply^Converter Adapter Switching Power Supply photo-3

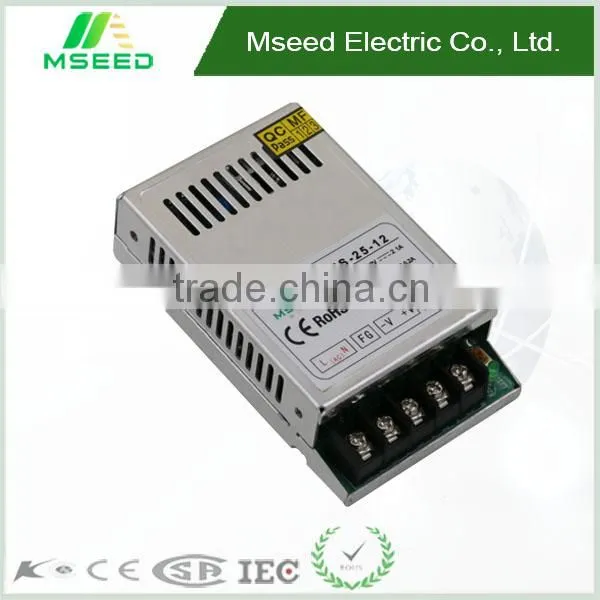

Hot Product MS-25 Industrial Switch Mode Power Supply^Converter Adapter Switching Power Supply photo-4

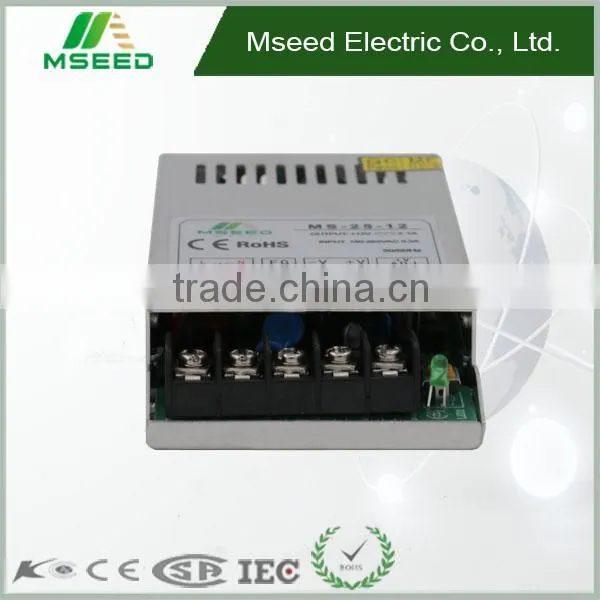

Hot Product MS-25 Industrial Switch Mode Power Supply^Converter Adapter Switching Power Supply photo-5

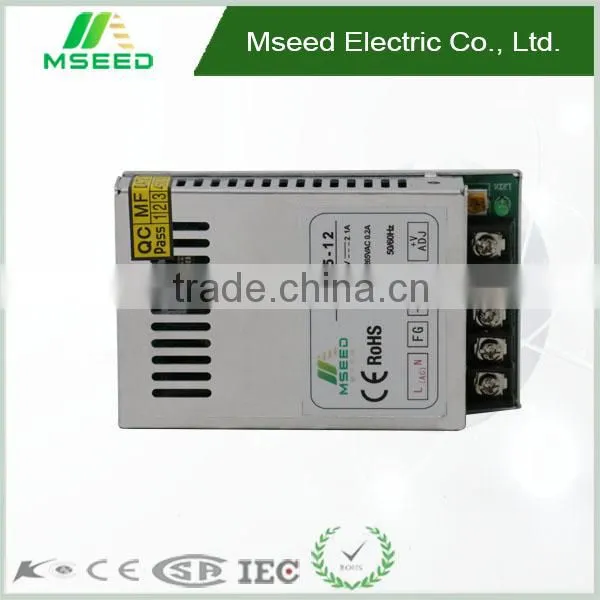

Hot Product MS-25 Industrial Switch Mode Power Supply^Converter Adapter Switching Power Supply photo-6
US$ 2.8 - 4 MOQ: 100 Units
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
Mseed
Model Number:
MS-25
Contact Supplier Request Quote Chat Now
Wenzhou Mseed Electric Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai or Ningbo
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name Mseed
Model Number MS-25
Output Power Other, 25W
Output Type Single
Input Voltage Other, 90-130VAC/170-260VAC
Output Voltage 5V/12V/24V
Output Frequency 50Hz
Output Current 2.08A
Product Details
Product Introduction

Quick details：

Place of Origin: Zhejiang, China (Mainland)
Brand Name: Mseed
Model Number:MS-25
Output Power: 25W
Output Type: Single
Input Voltage: 90-130VAC/170-260VAC
Output Voltage:5V/12V/24V
Output Frequency: 50Hz

Safety: IEC CE ROSH SAA KC

Features

• Universal AC input / Full range
switching mode power supply
• Protections:Short circuit/Over load/Over voltage
12v switching power supply
• Built-in cooling Fan ON-OFF control
led switching power supply
• 100% full load burn-in test
industrial switching power supply
• Fixed switching frequency at 25KHz
5v 30a switching led power supply
• Load stability +/-0.5%
12v 100a switching power supply
•Low ripple noise
24v 8a switching power supply
•High withstand voltage insulation
switching model power supply
•Operation temperature high up to 70℃
dual output switching power supply 5v 12v
•Meet EN61347 standard, CE certificates
switching power supply 220v 12v 50a
•2-year warranty

Parameters
Model
MS25-5
MS25-7.5
MS25-12
MS25-15
MS25-24
MS25-36
MS25-48
Input
Voltage Frequency
170-260VAC, 47-63Hz; 240-370VDC
Current
0.17A/230V
Efficiency(AC220V)
75%
77%
77%
76%
77%
78%
78%
Inrush Current
23A/230V 23A/230V at cold start
Output
Voltage
5V
7.5V
12V
15V
24V
36V
48V
Current
5A
3.3A
2.1A
1.7A
1.0A
0.7A
0.5A
Regulation Line
1%
1%
1%
1%
1%
1%
1%
Regulation Load
3%
3%
1%
1%
0.5%
0.5%
0.5%
Ripple Noise
≤50mVp-p
≤60mVp-p
≤60mVp-p
≤60mVp-p
≤150mVp-p
≤200mVp-p
≤300mVp-p
Temperature Drift
±0.03% / ℃(0-50℃)
Rated Power
25W
25W
25W
25W
25W
25W
25W
Rise&Holding Time
1s,100ms,50ms
Circuit Protection
Over Current Protection
Works at over 105%-120% of rating and recovers automatically
Over Voltage Protection
/
Over-Heat Protection
/
Withstand voltage Insulation
Input-Output
AC1500V;500VDC/100MΩ
Input-Case,FG
AC1500V;500VDC/100MΩ
Output-Case,FG
AC500V;500VDC/100MΩ
Environment
Operating Temp and Humid
(-10)℃- (+60)℃, 20%-90%RH
Storage Temp and Humid
(-20)℃- (+85)℃, 10%-95%RH
Vibration
10-500Hz at 2G, 10minutes period,60minutes along X, Y and Z axis
Safety
Safety Regulation
IEC CE ROSH SAA KC
EMC
IEC / EN60950-1 EN61347-1:2008
IP
IP
IP22
Applications

These products are Constant Voltage LED Drivers. For dimming purpose, please equip with compatible low voltage dimmer switches and arrange your circuit in the following sequence:

Mains – LED Driver – Low Voltage Dimmer – Low Voltage LEDs

Dimension



Packing Details

Being packed according to the international standard is to guarantee safe delivery during the transportation.
