Home > Electrical & Electronics > Switch > Other Switches > AUQ1 Modular Electrical Automatic Change Over Switch Main Switch

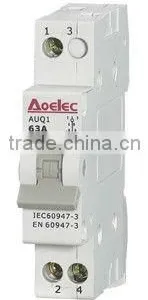

AUQ1 Modular Electrical Automatic Change Over Switch Main Switch

Name: AUQ1 Modular Electrical Automatic Change Over Switch Main Switch
Brand: AOELEC/OEM
SKU: 123821335

AUQ1 Modular Electrical Automatic Change Over Switch Main Switch thumbnail-1

AUQ1 Modular Electrical Automatic Change Over Switch Main Switch photo-1

US$ 2 - 5 MOQ: 360 Pieces

Key Specifications

Get Latest Price

Place of Origin:

Zhejiang, China

Brand Name:

AOELEC/OEM

Model Number:

AUQ1

Contact Supplier Request Quote Chat Now

Wenzhou Aoelec Electrical Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Ningbo or Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Zhejiang, China

Brand Name AOELEC/OEM

Model Number AUQ1

Max. Current 40A

Max. Voltage 440VAC

Function and Feature:

Handle with 3 stage:I-O-II

Changeover switch with zero position in middle

Modularized and DIN Rail mounting

Technical Data:

Rated Current(In): 10,16,20,25,32,40A

Rated Voltage(Un):230V/400V,400/415V

Rated frequency:50/60Hz

Numbers of Poles:1P,2P.3P.4P

Electrical endurance:10000cycles

Mechanical endurance:20000cycles

Type of Terminal: Lug Type

Terminal Capacity: Cable up to 25mm²

Width: 17.6mm/module

Use Category:AC-22

Protection Degree:IP20

Standards: IEC60947-3

Catalog No. CTN Size:46.5x24x17.5cm

In(A)	Model No.	QTY/Box	QTY/CTN
6A	AUQ1 1P 6	12	120
10A	AUQ1 1P 10	12	120
16A	AUQ1 1P 16	12	120
20A	AUQ1 1P 20	12	120
25A	AUQ1 1P 25	12	120
32A	AUQ1 1P 32	12	120
40A	AUQ1 1P 40	12	120

About us:

Aoelec Electrical was established in 2003,with 50 office guys and 240 workers now.Our products are present in more than 30 different countries from Middle Ease to South American,from Europen to Australia,from Southeast Asia to North Africa.And our change over switch main switch have KEMA,TUV,SEMKO,CB and CE certificates.
