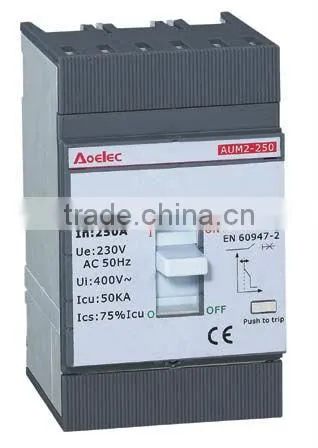

AUM2-250 3P 250A Moulded Case Circuit BreakerUS$ 11 - 100MOQ: 100 Pieces -
AUM2-160 3P 160A Moulded Case Circuit BreakerUS$ 11 - 311MOQ: 100 Pieces
-

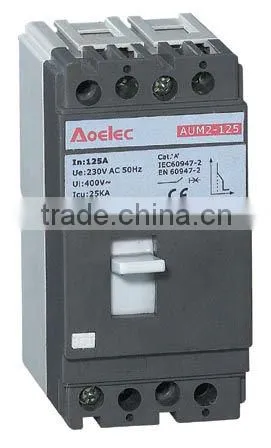

AUM2-125 2P 125A Moulded Case Circuit BreakerUS$ 11 - 20MOQ: 100 Pieces
-

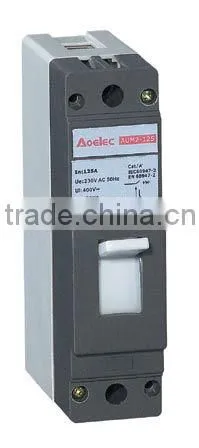

AUM2-125 1P 125A Moulded Case Circuit BreakerUS$ 5 - 20MOQ: 100 Pieces
-
AUM1E-100 With TUV Certificate Electronic MCCB 100AUS$ 20 - 100MOQ: 100 Pieces

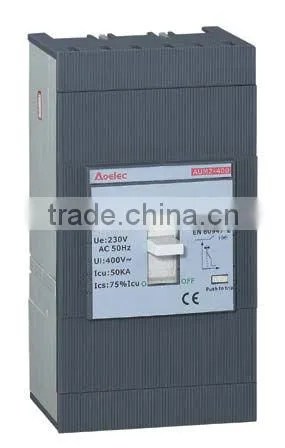

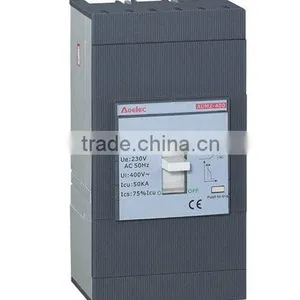

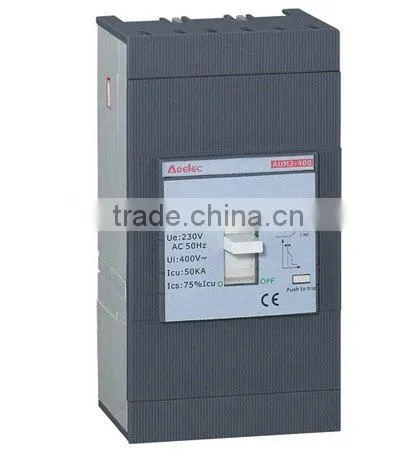

Application:
AUM2 MCCB features good structure,small volume and reliable performance.It can be used on the 50/60Hz,rated voltage to 440V supply .It can protect the cable and equipments from overload or short circuit.It can also be used as switch for infrequently making or breaking of the circuit.
Technical data:
Number of pole:3P,4P
Rated voltage(Ue):400V
Rated current(In):250,315,350,400A
Rated isolating voltage(Ui):690V
Rated impulse withstand voltage(Uimp):8000V
Mechanical endurance:4000 cycles
Electric endurance:1000 cycles
Connection:Terminal Screw
Rated limit short-circuit breaking capacity(Icu):50kA
Rated operating short-circuit breaking capacity(Ics):37kA
Standards:IEC60947-2,EN60947-2
Catalog No. CTN size:35x20x15CM
| Model | Description | QTY/Box | QTY/CTN |
| AUM2-400/3 250A | 3P 50kA | 1 | 4 |
| AUM2-400/3 315A | 3P 50kA | 1 | 4 |
| AUM2-400/3 350A | 3P 50kA | 1 | 4 |
| AUM2-400/3 400A | 3P 50kA | 1 | 4 |
| AUM2-400/4 250A | 4P 50kA | 1 | 3 |
| AUM2-630/4 315A | 4P 50kA | 1 | 3 |
| AUM2-400/4 350A | 4P 50kA | 1 | 3 |
| AUM2-400/4 400A | 4P 50kA | 1 | 3 |
About us:
Aoelec Electrical was established in 2003,with 50 office guys and 240 workers now.Our products are present in more than 30 different countries from Middle Ease to South American,from Europen to Australia,from Southeast Asia to North Africa.And our product have KEMA,TUV,SEMKO,CB and CE certificates.
