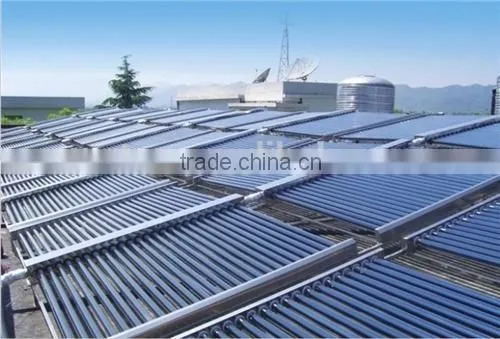

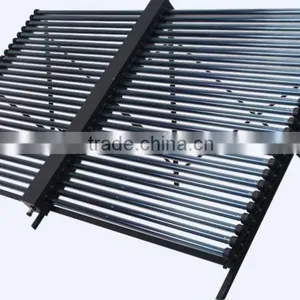

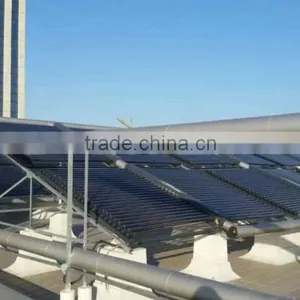

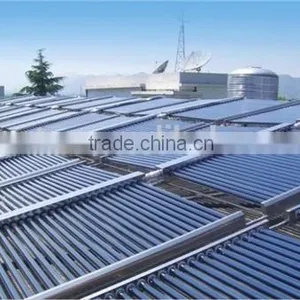

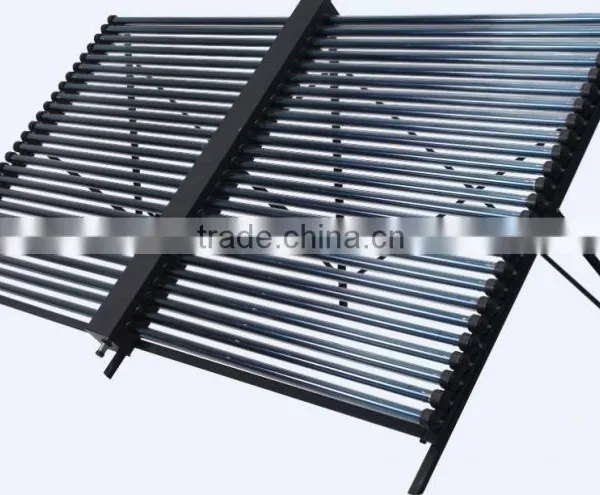

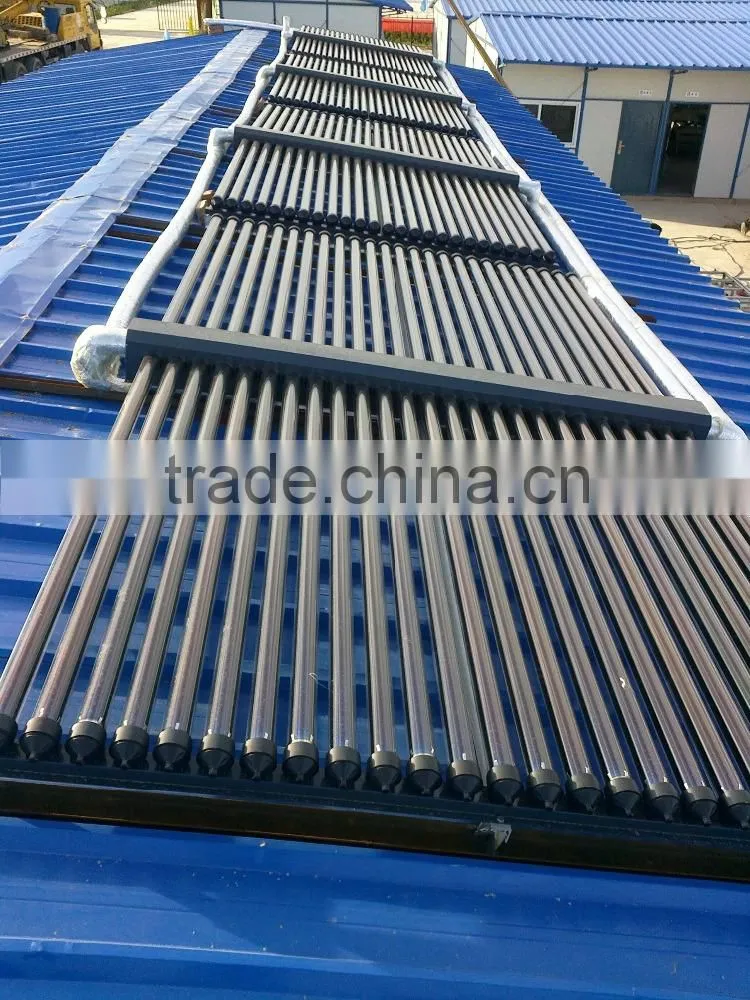

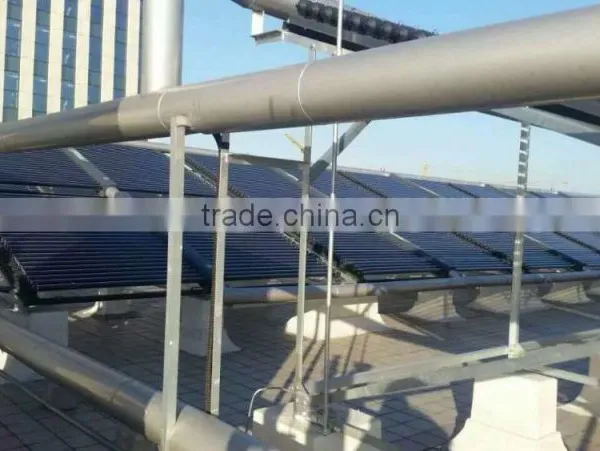

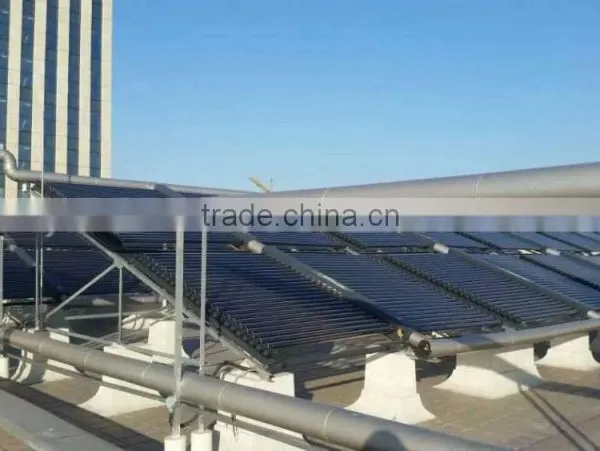

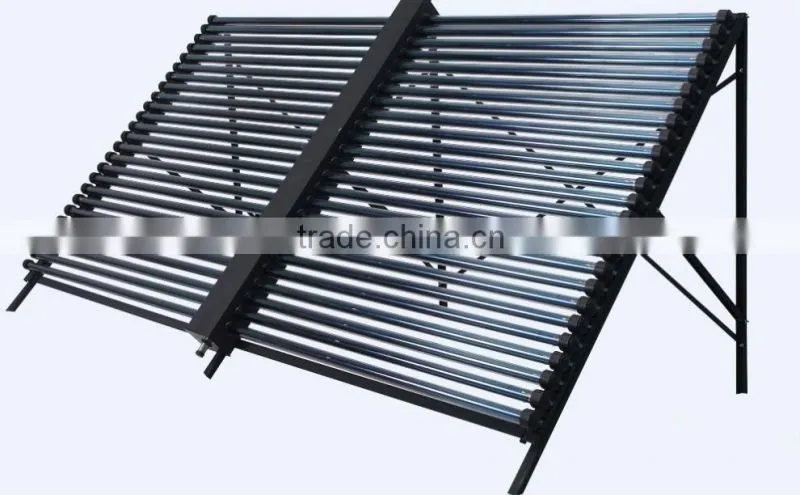

Vacuum Solar Collector China/Vacuum Tube Solar Collector/Evacuated Tube Solar Collector
Technical data:
Model |
Collecting area |
Total area |
Size |
Tubes Length*diameter MM |
Quantity in 20’s container |
Quantity in 40’s container |
Quantity in 40HQ container |
JPH-50TX18-330 |
7.6 |
8.6 |
3680*1970*1526 |
1800*58 |
54 |
108 |
132 |
JPH-50TX18-000 |
15.2 |
8.6 |
3672*2445 |
54 |
108 |
132 |
|
JPH-100TX18-330 |
15.2 |
15.8 |
3.68*4.307*2.949 |
30 |
60 |
68 |
|
Insulation |
Inner tank |
Outer Tank |
|||||
Material |
Thickness |
Density |
Material |
Thickness |
|||
Polyurethane |
Thickness |
40Kg/M3 |
SUS3042B |
0.5mm |
Stainless steel/Hot galvanized plate/Aluminum |
||
Working principle:
The evacuated tubes have two layers of glass tubes, the inner tube absorb solar radiation then convert into heat energy and transfer it to the water in inner tubes. As we know, the density of water in different temperature is different, so the hot water circulates to the manifold, cold water in manifold flowing into tubes, through this natural circulation, the water will be heated. We can design pipes, pumps, connected collectors to water tanks, then water in water in water tank will be heated.
Advantages:
1. The material of inner manifold is SUS304 2B, good function of anticorrosion and long working life;
2. The material of outer manifold is hot galvanized sheet steel with plastics-prayed surface, beautiful and durable;
3. The insulation material of manifold is polyurethane, keep energy in long time;
4. High quality evacuated tubes with triple layer selective absorber coating, vacuum degree≤5.2x10-4Pa, absorbing efficiency≥92.5%;
5. Full automatic production line can realize your different requirements;
Trust our service
Pre-sale Service
1. Sample can be offered with sample charge and courier fee by buyer's side;
2. We have full stock, which supply us can arrange products’ delivery in short time;
3. OEM and ODM order are accepted, any kind of logo printing or design are available;
4. Good Quality + Factory Price + Quick Response + Reliable Service is our aim, can support you develop your area market without supplier warries;
5. All of our products are produced by our professional workman and we have our high-work-effect foreign trade
team, you can totally believe our service;
6. We have rich experiences in design, manufacture and sell solar water heater, we supply different design products for you to choose.
After you choose
1. We will choose cheapest shipping cost and best service shipping company for our service;
2. Instead you check quality again, then send out to you at 1-2 working day after we confirmed our order;
3. Email you the shipping documents and track shipping information for you.
After-sale service
1. We are very glad to accept your suggestions for service and products.
2. If any question, please contact with us freely by E-mail or Telephone.
