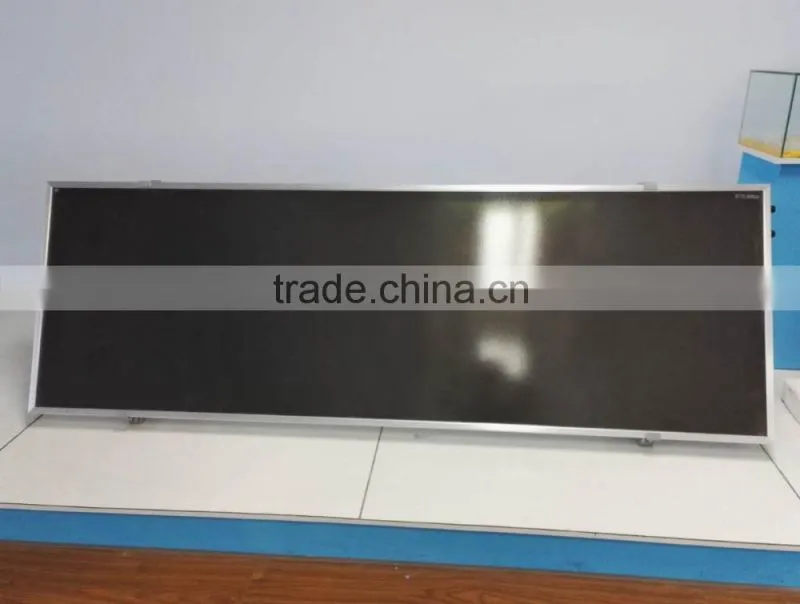

Help CenterBTE Flat Plate Solar Collectors With CE/Solar Key Mark Certificate
Related Products
-
BTE Solar Collector for Heating With CE/Solar Key Mark CertificateUS$ 70 - 300MOQ: 1 Set -
BTE Flat Plate Solar Collector Prices With CE/Solar Key Mark Certificate Quality ChoiceUS$ 70 - 300MOQ: 1 Set
-
BTE Flat Plate Solar CollectorUS$ 70 - 300MOQ: 1 Set
-
BTE Flat Plate Solar Collector With CE/Solar Key Mark Certificate Quality ChoiceUS$ 70 - 300MOQ: 1 Set
-
Flat Plate Pressurized Solar CollectorUS$ 70 - 300MOQ: 1 Set
Specification |
STC B-I/0.6-L-2.0 |
STC |
STC |
Film |
Black Film |
Blue Film |
Germany imported Blue Film |
Overall size(mm) |
1000x2000x80/95 |
1000x2000x80/95 |
1000x2000x80/95 |
Frame |
1.0mm Aluminum |
1.0mmAluminum |
1.0mm Aluminum |
Absorption area() |
1.89 |
1.89 |
1.89 |
Header pipe |
CopperTP2 Φ22x0.6 |
CopperTP2 Φ22x0.6 |
CopperTP2 Φ22x0.6 |
Grid pipe |
CopperTP2 Φ10x0.5 |
CopperTP2 Φ10x0.5 |
CopperTP2 Φ10x0.5 |
Cover material |
3.2Low-iron tempered -glass |
3.2Low-iron tempered -glass |
3.2Low-iron tempered -glass |
Transmittance |
≥92% |
≥92% |
≥92% |
Bottom cover |
0.50mm Hot galvanized plate |
0.50mm Hot galvanized plate |
0.50mm Hot galvanized plate |
Insulation |
Bottom: glass fiber frame: polyester fiber |
Bottom: glass fiber frame: polyester fiber |
Bottom: glass fiber frame: polyester fiber |
Working Pressure |
0.8MP |
0.8MP |
0.8MP |
Remark |
|
||
Working principle:
Flat panel collectors working principle is different from evacuated tubes collector. A glazed flat-plate solar collector consists of a shallow rectangular box with a flat black plate behind a tempered glass cover. The plate is attached to a series of parallel tubes or one serpentine tube through which water or another liquid (such as an antifreeze solution) passes. Sunlight passes through the glazing and strikes the absorber plate, which heats up, changing sunshine into heat energy. The heat is transferred to liquid passing through pipes attached to the absorber plate. Bontel can supply you different kinds of high quality absorber plate with selective film.
Bte Advantages:
- The high weather-proof selective absorbing film from full-automatic magnetron sputtering production line developed by SENTOC;
- With Bonding heat transferring technology and laser welding technology;
- High quality low-iron tempered glass with surface treatment to get high transmittance and low emittance;
- Circulation fluid in closed copper pipes, no glass tubes. So collectors without corrosion and circulation fluid leaking;
- The solid built-in absorber plate can absorb all solar radiation improve working efficiency and integrated well with buildings.
Trust our service
Pre-sale Service
1. Sample can be offered with sample charge and courier fee by buyer's side;
2. We have full stock, which supply us can arrange products’ delivery in short time;
3. OEM and ODM order are accepted, any kind of logo printing or design are available;
4. Good Quality + Factory Price + Quick Response + Reliable Service is our aim, can support you develop your area market without supplier warries;
5. All of our products are produced by our professional workman and we have our high-work-effect foreign trade
team, you can totally believe our service;
6. We have rich experiences in design, manufacture and sell solar water heater, we supply different design products for you to choose.
After you choose
1. We will choose cheapest shipping cost and best service shipping company for our service;
2. Instead you check quality again, then send out to you at 1-2 working day after we confirmed our order;
3. Email you the shipping documents and track shipping information for you.
After-sale service
1. We are very glad to accept your suggestions for service and products.
2. If any question, please contact with us freely by E-mail or Telephone.
