Help Center12864 COG PIN LCD
Related Products

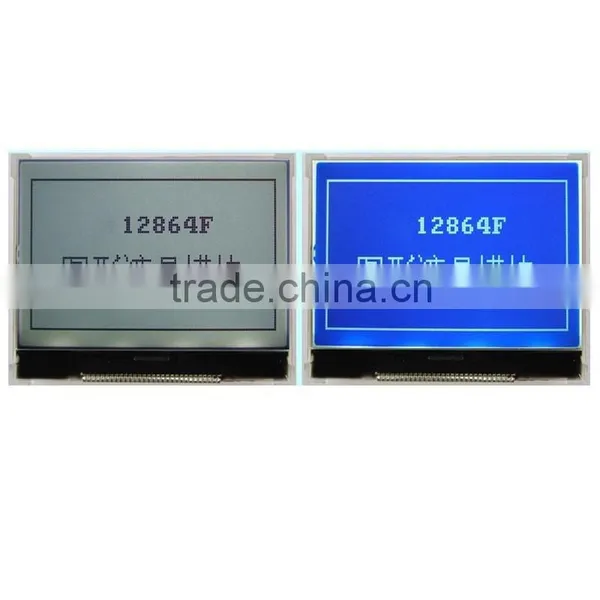

Product Description
| LCD Type | STN, |
| POLARIZER | TRANSFLECTIVE/positive/negative/ |
| Dots | 128x64 |
| Module size | 77.4X52.4X11.6MM |
| Viewing Area | 70.0x40.0mm |
| Supply Voltage | 14.5V |
| Driver | ST7565P |
| BACKLIGHT | WHITE |
| View Angle | 6:00 |
| connecter | PIN |
| operating temperature | -20-70C |
| Storage temperature | -30-80C |
| Dots pitch | 0.52X0.52mm |

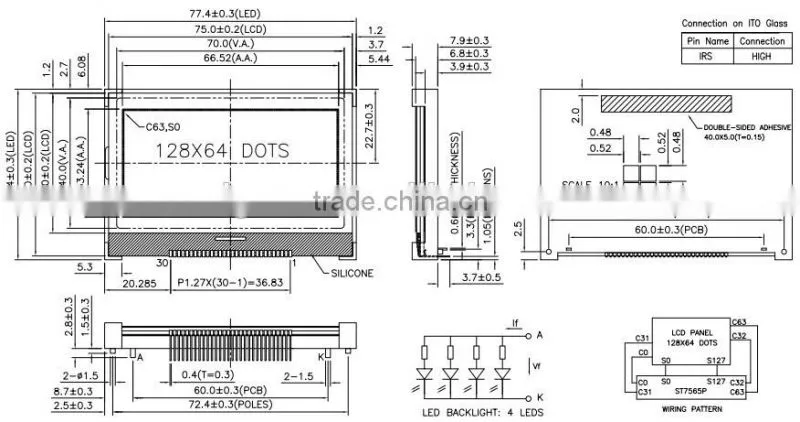

LCD Drawing
Interface
| PIN | 1 | 2 | 3 | 4 | 5 | 6-13 | 14 | 15 | 16 | 17 | 18 | 19 | 20 | 21 | 22 | 23-27 | 28 | 29 | 30 |
| Symbol | /CS1 | /RES | A0 | /WR | /RD | D0-D7 | VDD | VSS | VOUT | CAP3P | CAP1N | CAP1P | CAP2P | CAP2N | CAP4P | V4-V0 | NC | C86 | P/S |
