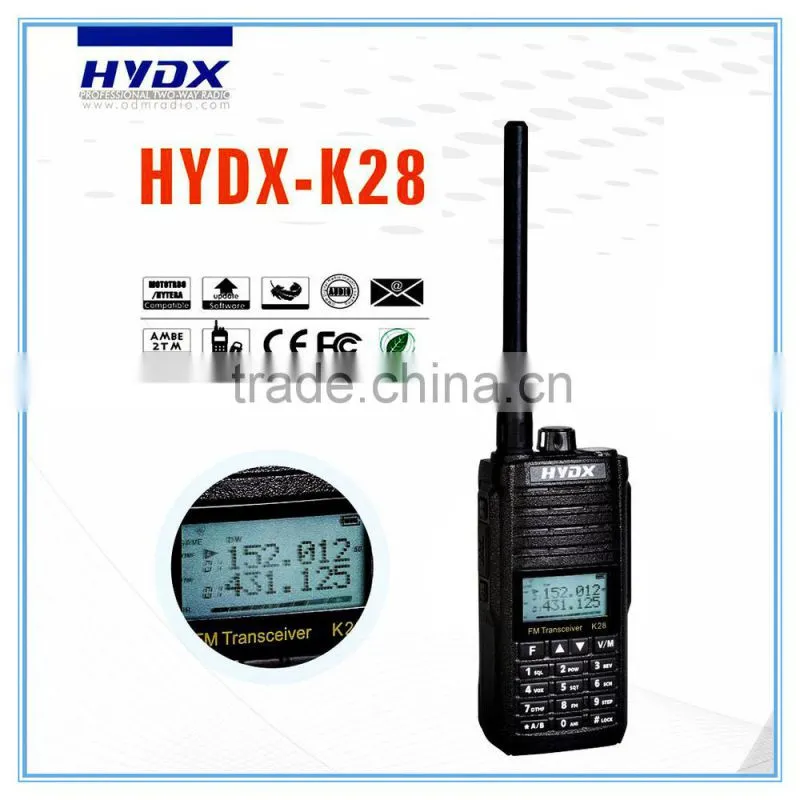

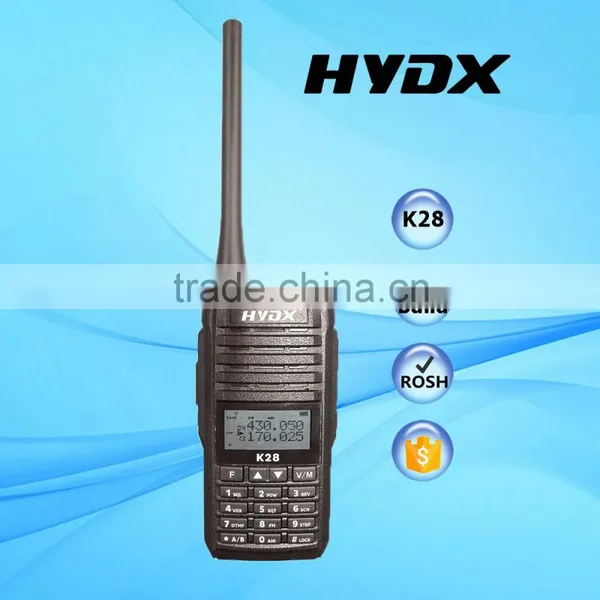

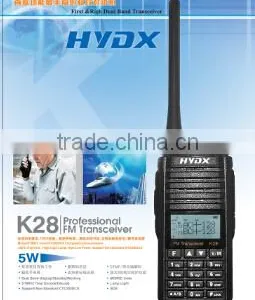

HYDX K28 Portable Dual Band Analog Two Way Radio Amateur Long Range UHF VHF

HYDX K28 Portable Dual Band Analog Two Way Radio Amateur Long Range UHF VHF thumbnail-1
HYDX K28 Portable Dual Band Analog Two Way Radio Amateur Long Range UHF VHF thumbnail-2
HYDX K28 Portable Dual Band Analog Two Way Radio Amateur Long Range UHF VHF thumbnail-3
HYDX K28 Portable Dual Band Analog Two Way Radio Amateur Long Range UHF VHF thumbnail-4
HYDX K28 Portable Dual Band Analog Two Way Radio Amateur Long Range UHF VHF thumbnail-5
HYDX K28 Portable Dual Band Analog Two Way Radio Amateur Long Range UHF VHF photo-1
HYDX K28 Portable Dual Band Analog Two Way Radio Amateur Long Range UHF VHF photo-2
HYDX K28 Portable Dual Band Analog Two Way Radio Amateur Long Range UHF VHF photo-3
HYDX K28 Portable Dual Band Analog Two Way Radio Amateur Long Range UHF VHF photo-4
HYDX K28 Portable Dual Band Analog Two Way Radio Amateur Long Range UHF VHF photo-5
Negotiable MOQ: 2 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Fujian, China
Brand Name:
HYDX
Model Number:
K28
Contact Supplier Request Quote Chat Now
Fujian Juston Electronic Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Xiamen/Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Fujian, China
Brand Name HYDX
Model Number K28
Type Handheld
Dimensions 124*61*48.5mm
Frequency Range 136-174MHz/400-520MHz/245MHz
Storage Channel 256
Talk Range 5-10km

HYDX K28 portable Dual Band Analog two way radio long range UHF VHF



Product Description



What's the details of HYDX walkie talkie?



 Luxury Functions

  • Professional FM Transceiver
  • UHF/VHF Dual Band, Dual Display and Dual Standby
  • Power-on Password Setting
  • High Sensitivity FM Radio Morse/ DTMF/2 Tone
  • Encrypted Communication

 Main Features

  • VFO/MR/CH Working Modes
  • Dual Band Display/Standby/Working
  • MORSE Code
  • DTMF Encode/Decode
  • Lamp Light
  • ANI
  • Stun/Kill
  • 2 Tone Encode/Decode
  • Private/Group/All Call
  • 1750Hz
  • SOS
  • Password Security
  • Support Non-Standard CTCSS/DCS
  • Phone Book

 HYDX K28 portable Dual Band Analog two way radio amateur long range UHF VHF

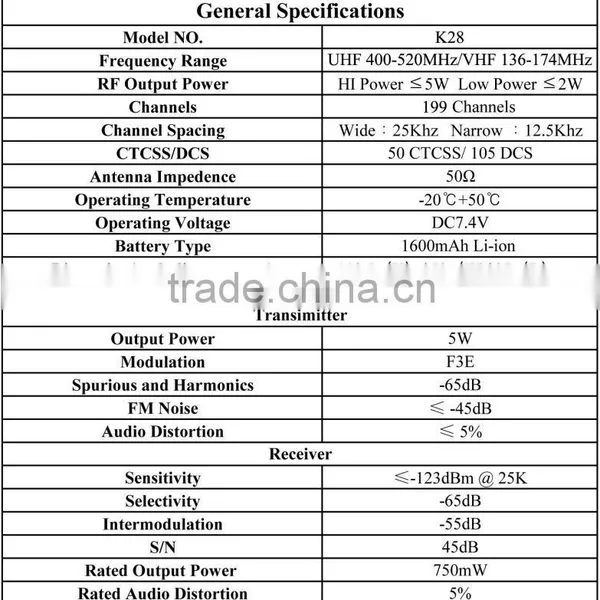

What's the specification of HYDX walkie talkie?





Model NO.

K28

Frequency Range

136-174MHz/400-520MHz/245MHz

Channel

256 Channels

RF Output Power

HI Power≤5W     Low Power≤2W

Channel Spacing

Wide:25Khz   Narrow:12.5Khz

Antenna Impedance

50Ω

Operating Temperature

-30℃~+60℃

Operation Voltage

DC7.4V

Battery Type

1600mAh Li-on

Battery Lifespan (5/5/90)

12 Hours

Dimension (excluding antenna)

124(H)*61(W)48.5(D)mm

Weight (Battery, Antenna Included)

About 230g

Transmitter

Output Power

5W

Modulation

F3E

Spurious and Harmonics

≤ -65db

FM Noise

≤-45dB

Adjacent Channel Power

 ≤ -65dBm

Audio Distortion

≤5%

Receiver

Sensitivity

≤-123dbm(25k)



Selectivity

-65dB

Inter-modulation

≤-60dB

Block

≥84dB

Rated Output Power

750mW(16Ω)

Rated Audio Distortion

≤5%





What' s the uses of HYDX walkie talkie?



HYDX handheld wireless two-way radio systems, also called walky-talky radios, offer maximum mobility, ruggedness, and all-weather operation to allow the users to be instantly connected at the touch of a button, under most demanding conditions and geographies.


HYDX handheld two-way wireless radio systems are widely used for communication in sectors such as industries, mining, construction, ports, petrochemical refineries, offshore oil rigs and platforms, airline ground operations, public and private security, irrigation projects, infrastructure projects, municipal corporations and public utilities such as electricity boards, gas distribution networks, waste management, emergency services, etc.



Certifications







Packaging & Shipping

HYDX K28 walkie talkie uhf/vhf Dual Band dual display two way radio

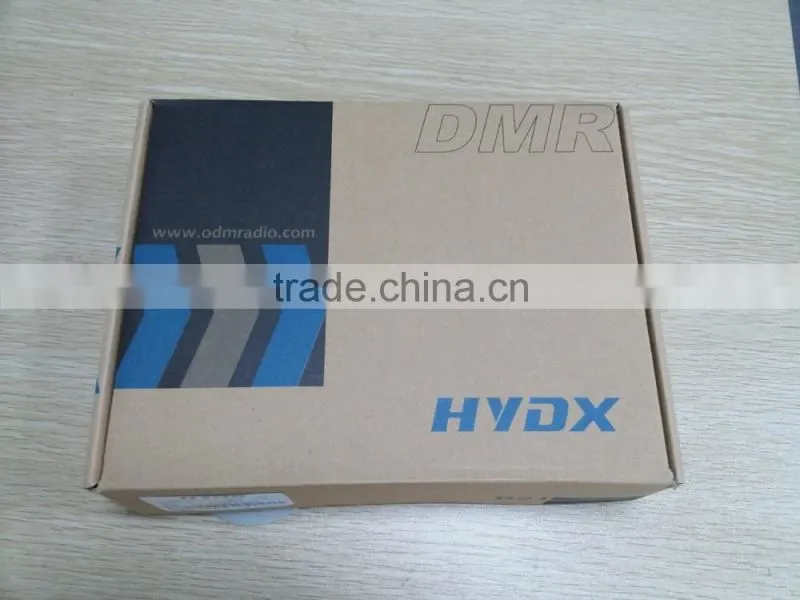

Set in a Gift Box, 10 pcs /Carton.        Carton Size: 37*28.5*26.5cm.

HYDX K28 portable Dual Band Analog two way radio amateur long range UHF VHF







Company Information

Fujian Juston Electronic Equipment Co.,Ltd . belongs to Huayuan telecommunications group, is located in Quanzhou city Licheng District of South Road South Industrial park. Huayuan Electric was founded in 1983, to vigorously support, Juston has been gradually developed into the industry a top ODM and OEM suppliers.

HYDX K28 portable Dual Band Analog two way radio amateur long range UHF VHFHYDX K28 portable Dual Band Analog two way radio amateur long range UHF VHF

HYDX K28 portable Dual Band Analog two way radio amateur long range UHF VHF



Our Services



1.Reply your inquiry in 24 working hours.

 2.Well trained experienced staff reply all your questions.

 3.Customized design is available, OEM and ODM care welcomed.

 4.Fast delivery to customers all over the world after deposit.

 5.100% QC inspection before shipment.

 6.One year warranty for radios, six month for accessories.

 7.Excellent after-sales service.
