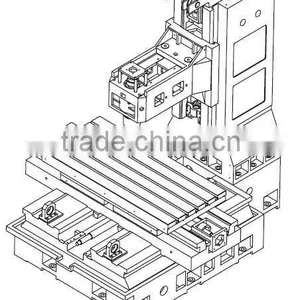

Help CenterCNC Machine Frame;VMC1580
Related Products
Specifications
1 high-class quality;2 competitive price;
3 high machining precision;
4 short delivery time;

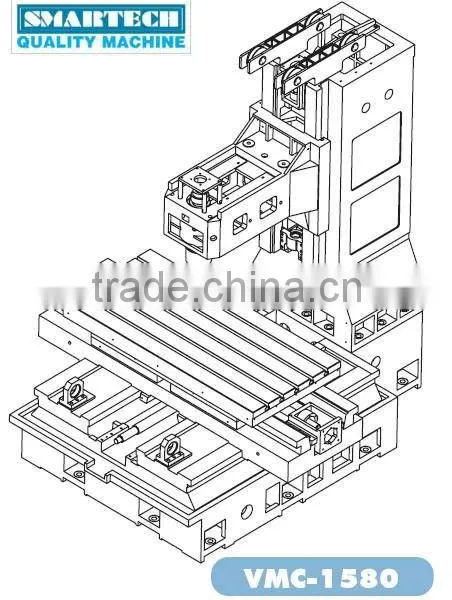

SMARTECH CNC VMC FRAME
- MACHINE FEATURE:
1 High-class casting by resin sand and wood mould;
2 Top class imported ball screws sets and bearing ;
3 Imported spindle & tool clamping system ;
4 Imported drive connectors ;
5 Stainless steel telescopic protection on X/Y/Z axis ;
6 Central lubrication system ;
7 Coolant system ;
8 Harden&ground on all slideways and Turcite-B coated with precise scraping;
- OPTIONAL:
1 Spindle from Taiwan;
2 Direct drive structure for main motor with spindle ;
3 Central oil coolant for the spindle ;
4 Coolant through spindle ;
5 ATC: drum type, arm type or chain type ;
6 Outside guarding: standard or special made according to clients design
7 Chip conveyor
8 CNC pre-installed for clients: whole full ready package delivery according to clients design
- SPECS:
MODEL |
VMC-1580 |
Table Size |
800 x 1700 |
Travel X |
1500 |
Y |
800 |
Z |
700 |
Spindle to Column Slideway |
800 |
Spindle Nose to Table Surface |
170-870 |
T-Slot(No-size/distance) |
5-22/135 |
Spindle Taper/outside dia |
BT50/155 |
Spindle Speed |
8000rpm |
X,Y axis Ball Screw Spec. |
63/10 |
Z axis Ball Screw Spec. |
50/10 |
X,Y & Z Motor Connection |
Direct drive |
Main motors recommended |
15kw |
Drive motors recommended X/Y/Z |
24/26/26Nm |
Table Work Load |
1500 Kg |
Net Weight |
10000kg |
*Also provide linear-type slide ways.
