CNC Machine Frame;BMC1502L

Name: CNC Machine Frame;BMC1502L
Brand: SMARTECH
SKU: 123973339

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Place of Origin:

Yunnan, China

Brand Name:

SMARTECH

Smartech Machinery & Equipment Co., Ltd.(Shenzhen)

Payment & Shipping

Payment Methods:

Port of Shipment:

SHENZHEN CHINA;

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Place of Origin Yunnan, China

Brand Name SMARTECH

Model Number BMC1502L

Type Vertical

CNC or Not CNC

Specifications

1 high-class quality;
2 competitive price;
3 high machining precision;
4 short delivery time;

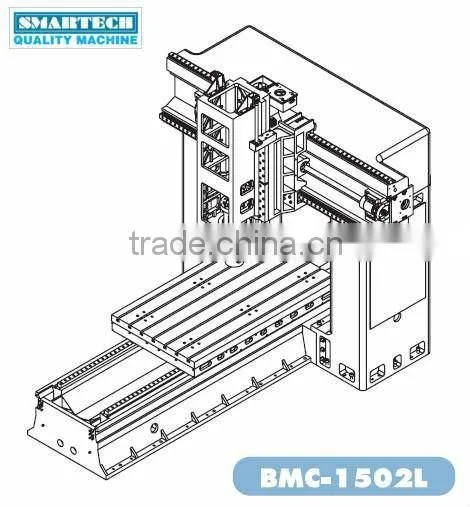

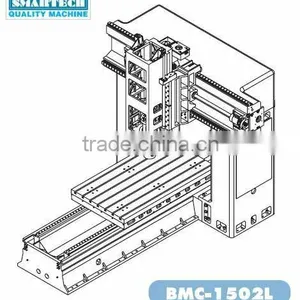

SMARTECH CNC BMC FRAME

1 High-class casting by resin sand and wood mould;

2 Top class imported ball screws sets and bearing ;

3 Imported spindle & tool clamping system ;

4 Imported drive connectors;

5 Telescopic protection on X/Y axis ;

6 Central lubrication system;

7 Spindle trunk hydraulic balance system;

8 Imported coupling;

9 Harden&ground on all slideways and Turcite-B coated with precise scraping;

OPTIONAL: Different type milling heads

MODEL	BMC-1502L
Table Size	1200 x 2100
Travel X	2000
Y	1650
Z	800
Distance between columns	1650
Spindle Nose to table surface	115-915
T-Slot(QTY/size/distance)	7/22/170
Spindle Speed(max) with Gear box	3000rpm
Spindle Speed(max) with ZF Gear box	6000rpm
Spindle Speed(max) standard	4000rpm(Direct Drive)
X axis Ball Screw Spec.	63/10
Y axis Ball Screw Spec.	50/10
Z axis Ball Screw Spec.	50/10
Drive motors recommended X/Y/Z	40/30/30Nm
Table Work Load	3000 Kg
Net Weight	25 000kg
