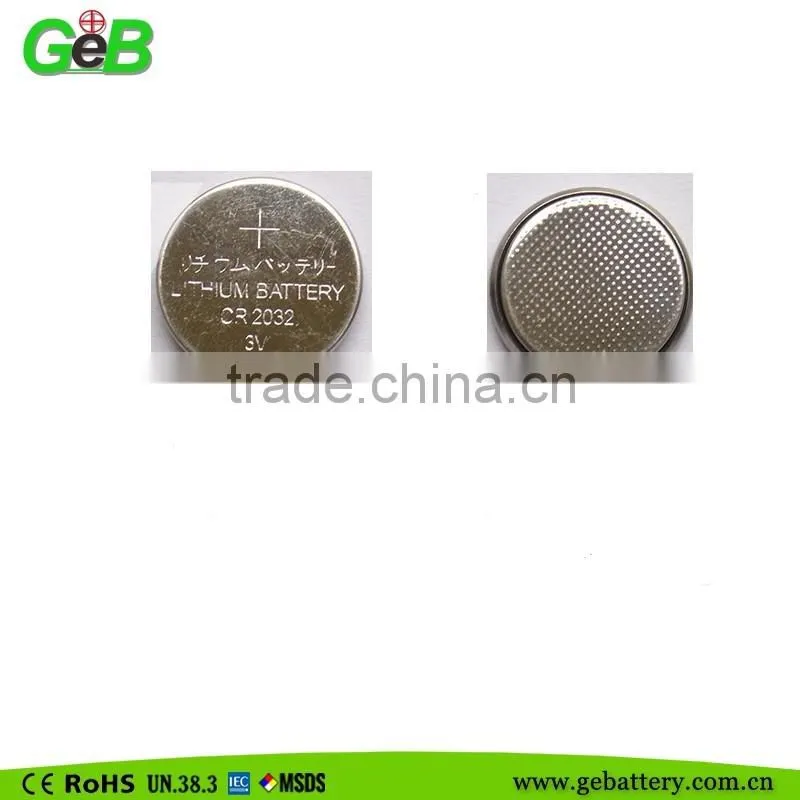

3V LiMn CR2032 button battery
ITEM |
UNIT |
SPECIFICATIONS |
CONDITIONS |
|
Nominal voltage |
V |
3.0 |
Standard discharge |
|
Nominal capacity |
mAh |
210 |
Standard discharge |
|
Instantaneous short-circuit current |
mA |
≥300 |
Time≤0.5second |
|
Off-load voltage |
V |
3.25 – 3.60 |
Unit cell |
|
Storage temperature |
°C |
0 - 40 |
Unit cell |
|
Apply temperature |
°C |
-20 - 70 |
Unit cell |
|
Standard weight |
g |
2.85 |
Unit cell |
|
|
Service output |
Initial |
h |
200 |
Continuous discharge with load 3 kΩ,till 2.0v end-voltage at 20-25°C |
After 12 months storage |
h |
196 |
||
TABLE Ⅱ:
ITEM |
CONDITIONS |
CHARACTERISTICS |
|
Self-discharge rate |
Stored for 12 months at normal temperature, then continuously discharged with 15 kΩ load till 2.0v end-voltage |
Our lithium/manganese dioxide batteries represent one of the latest advances in primary battery technology. For applications with a high current pulse (e.g. photoflash) and continuous drain, all Southtop lithium batteries provide: high-energy density and excellent rate capability; wide operating temperature range and superior low temperature performance; excellent shelf life.
FEATURES OF Li/MnO2 BATTERIES:
- High energy density
- Low self discharge rate
- Long storage life
- No voltage delay
- High current discharge
- Wide range of operation temperature
- Safe and environmental friendly
