1700c refractory 230 ×114 ×65mm common high alumina brick
Standard Size: 230 ×114 ×65mm
Standard size weight: 1.720kg
Density: 1.0g/cm3
1.Description of Product
Bubble alumina brick is based on the material of alumina bubble and alumina powder, add other binder, through being sintered in the temperature of 1700 °C,
then can be made.
It is one kind of ultra high temperature material and energy saving heat preservation material.

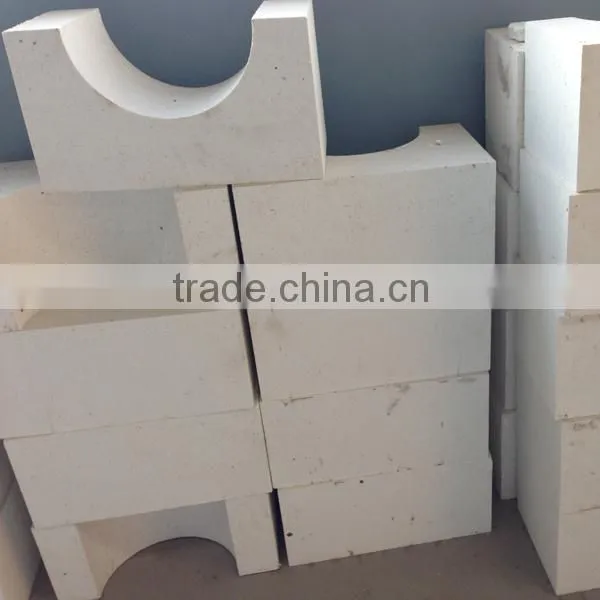

2.Pictures of Product
3.Parameter of Product
| Item | 1700c refractory 230 ×114 ×65mm common high alumina brick |
| Working Temperature ℃ | 1650 |
| Al2O3 % | 75 |
| SiO2 % | <13 |
| Fe2O3 % | <0.2 |
| Minimum Density g/cm3 | 1 |
| Cold Crushing Strength Mpa | >12 |
|
Reheating Linear Change % (1600C x3h) |
±0.3 |
|
Thermal Expansion Coefficient x10 -6 (room temp.-1300C) |
~7.8 |
|
Thermal w/(m.k) conductivity(Average 800C) |
<0.8 |
4.Application of Product
Bubble alumina brick is used in the lining of high temperature furnace
also can be used as a kind of thermal insulation material in the high temperature kiln
of the industrial as refractory material, industrial ceramics, electronical ceramics, petrochemical and metallurgical industries.
5.Delivery of Product
Standard brick: 7-15 days
Non-standard brick: 20-30 days
Large In Stock for Standard Brick
Non-standard Brick
More products details, pls click the photo.
