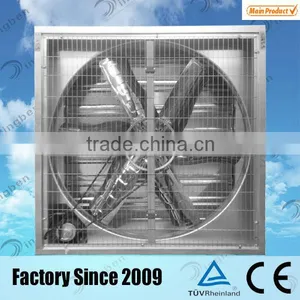

Air Cool Industrial Ceiling Fan

Air Cool Industrial Ceiling Fan thumbnail-1
Air Cool Industrial Ceiling Fan photo-1
US$ 100 - 225 MOQ: 10 Pieces
Key Specifications
Get Latest Price
Power Source:
Electric
Type:
Air Cooling Fan
Installation:
Ceiling
Contact Supplier Request Quote Chat Now
Hangzhou Chengkuo Import And Export Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Power Source Electric
Type Air Cooling Fan
Installation Ceiling
Material Stainless Steel
Certification CE
Power (W) 750
Voltage (V) 380
Brand Name DINGBEN
Model Number CHK-110T08
Place of Origin Zhejiang, China



Product Description



1.Product Description



  size  (mm)   1100*1100*400   transmission mode   belt
  fan blade dia   (mm)    1000   revolving speed of fan (rpm)    480
  max air flow rate(cmh)    32500   voltage (v)   380/220
  noise (db)   ≤65   input power (w)      750
  total pressure (pa)     70   net weight (kgs)   63





air cool industrial ceiling fan

wall mounted industrial exhaust fan partsair cool industrial ceiling fan

Fan bearing: waterproof design,  High strength, lower noise, maintenance free and long service life.
Fan blade:  stainless steel,  keep air volume same all the way. Thickness 1.2mm, surface finish BA grade.
Fan belt pulley:  high strength aluminum-magnesium alloy by die-casting , high corrosion resistance. Special three reinforced ribs pulley design.
Belts: famous brand Sanlux, ensure the long service life, maintenance free.
Motor: Nanshan and Xizi motor are available. Siemens is ok,but have a long delivery period. Motor voltage and frequency can be customized. Nanshan 1 year guarantee,Xi zi 2 years guarantee.If the motors were broken without man made reasons during warranty,we will resend you a new one for free.
Heavy hammer:Using high strength nylon swung drop hammer opening device to ensue the shutters opening and closing flexibly.
CNC machine line:Complete new CNC production line improved fan quality up to top grade,aesthetic appearance.



2.Production Process

air cool industrial ceiling fan

3. Installation

 air cool industrial ceiling fanair cool industrial ceiling fan

4.Certification

        air cool industrial ceiling fan

5.More products for your choose

  Roof Mounted Used Industrial Fans Roof Mounted Used Industrial Fans Roof Mounted Used Industrial Fans

model   size  (mm)

revolving speed

(rpm)

max air

flow rate(cmh)

 input power (w) voltage (v)
CHK-80T08 800*800*400 650 20000 370 380
CHK-90T08 900*900*400 630 22000 550 380
CHK-100T08 1000*1000*400 610 25000 750 380
CHK-110T1 1100*1100*400 480 32500 750 380/220
CHK-110T08 1100*1100*400 480 32500 750 380/220
CHK-122T1 1220*1220*400 435 37500 750 380/220
CHK-122T08 1220*1220*400 435 37500 750 380/220
CHK-138T1 1380*1380*400 425 44500 1100 380/220
CHK-138T08 1380*1380*400 425 44500 1100 380/220
CHK-153T08 1530*1530*400 325 55800 1500 380/220
CHK-153T1 1530*1530*400 325 55800 1500

380/220


air cool industrial ceiling fan



Company Information



1.About Us

We are manufacture , we have own factory named Hangzhou Dingben Environmental Science Co.,Ltd.

We are trading company , what you need you can trust us we can help to find them for you with best price .

we located in Xiaoshan, Hangzhou. Our main products are exhaust fans , air coolers , ventilation fans , cooling pads , motors , screws , and other kinds of industrial fans , water coolers , sheet metal fabrication and so on .

We have an experienced and professional team. Our products are exported to many countries. Our main markets are South Asia, Southeast Asia, South America, the Middle East , North America and Africa. Our products enjoy a good reputation among our customers.

We welcome customers, business associations and friends from all parts of world to contact us and seek cooperation for mutual benefit.



air cool industrial ceiling fan

air cool industrial ceiling fan





2.FAQ:Distributors of Chengkuo Worldwide

Q: Are you a trading company or a factory ?
A: We have own factory , but for easy shipping , we use trading company to register .

Q: Why your price more expensive than other China suppliers ?
A: Our material we use is much better than other suppliers , we use high zinc contect galvanized sheet

    for all axial flow fans , and screws all use good quality stainless steel , won't be rusted . For plastic products

    (eg. air coolers ) we all use new material to make sure the products can be long use . All our products ,

    we use China famous motor brand , the motor can 1 year guarantee , with a correct using , the motor life

    can be more than 10 years.

Q: What voltages you can do , if you can make special voltages ?
A: Almost all kinds of voltages we all can make , but for special voltages , we have a big MOQ and maybe

    price will be a little higher . Our normal voltage is 380V 50HZ 3phase .

Q: Can you cheaper ?
A: We have many quality stage products for client choose , different stage price will be different , if you

    really want low price we will suggest you choose lower stage product , in our company , we don't have

    bad quality products , you can reassure about the quality .

Q: I want to use our own brand , is it ok?
A: Of course it's OK , we can make OEM products and also can provide our own brand products ,

    it's all by your request .
