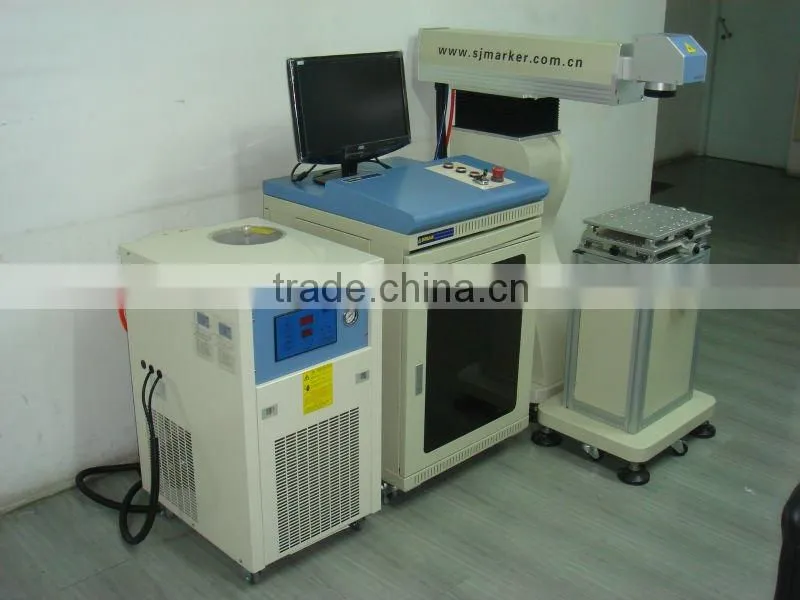

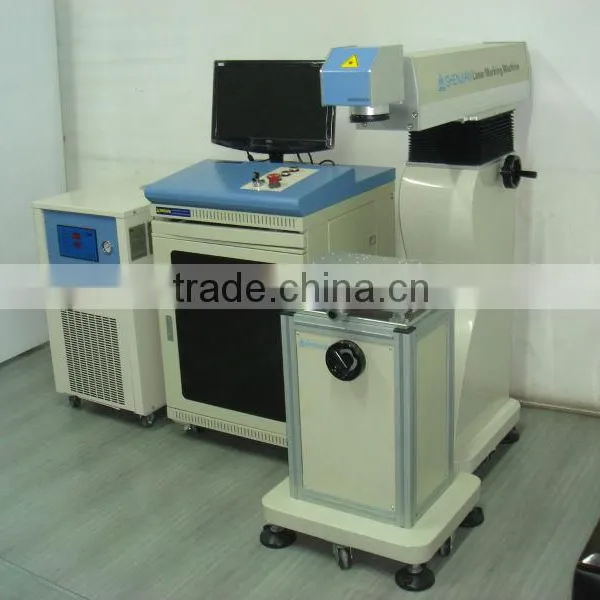

Help CenterSemiconductor Laser Marking Machine
Related Products
-
Laser Marking Machine on MetalUS$ 25,000 - 27,000MOQ: 1 Set -
Laser Marking Machine for CopperUS$ 12,000 - 15,000MOQ: 1 Set
-
VIN Code Laser Marking MachineUS$ 10,000 - 12,000MOQ: 1 Set
-
Non-metal Laser Marking Machine With CEUS$ 10,000 - 12,000MOQ: 1 Set
-
10W/20W/30W Fiber Laser Marking Machine for Auto PartsUS$ 5,500 - 8,000MOQ: 1 Set
Specifications
1.make on metal & palstic2.adjustable marking range
3.CE certificate
4.CNC industrial marker
5.high quality & low price

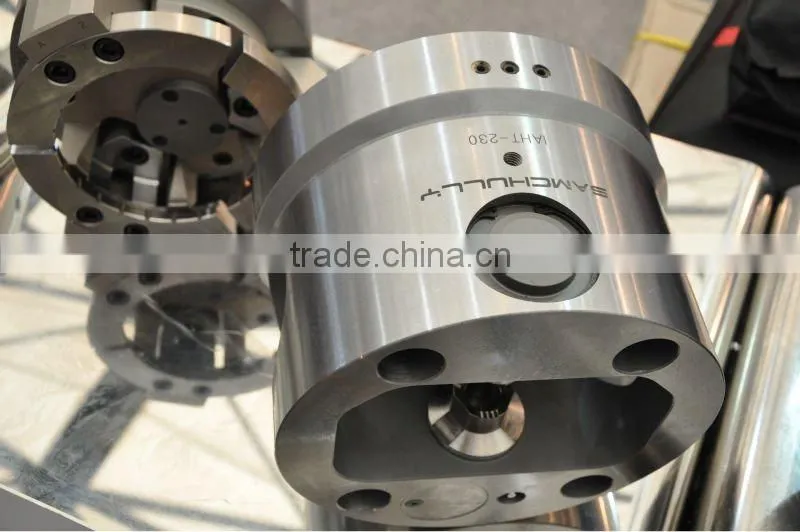

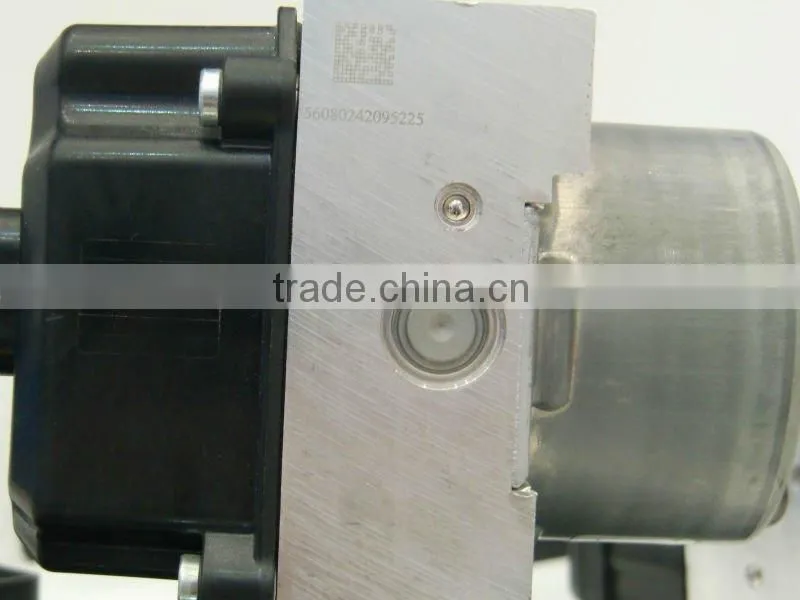

sample one
Technical parameters
Input voltage: |
AC220V±20V |
Frequency: |
50Hz |
Input power: |
1.5kVA |
Wavelength: |
1.064µm |
Power: |
50W |
Instability: |
<±5% |
Radio-frequency power: |
≤50W |
Modulating frequency power: |
200Hz~50kHz |
Pulse duration modulation: |
4µs~25µs |
Working area: |
110mmx110mm |
Scanning speed |
0~7000mm/s |
Marking depth: |
0.01~0.2mm (according to material) |
Marking width: |
0.1-0.2mm (according to material) |
XY table working area: |
85mm x 85mm |
Laser head lifting height: |
200mm |
Cooling way: |
Refrigeration unit cools the circulating media then the circulating media cools the laser cavity. |
Refrigerating power: |
1P |
Refrigeration unit: |
De-ionized water, distilled water or purified water. |
•Feature:
1. Diode pumped laser marking machine adopts high-quality semi-conductor module, life time over 10k hours.
2. Fast speed & no touch processing, the heat exchange is little, the material is not easy to distort.
3. Can quickly mark letter, figure, graphics or auto-coding, serial No., batch No., barcode, 2 -D code, etc. on metal or nonmetal surface (plastic, silicon or porcelain, etc.) which are precise, permanent, non-polluting and environment-friendly.
4. Its mainly equipped with the international advanced semiconductor light-emitting diode. diode laser module, scanner head, beam expander, reflect lens, Q-switch, Q-driver and other key parts imported from USA,UK, Singapore etc.
•Main application field: Hardware, IC, instrumentation, electronics,machinery industry, jewelry, glasses, auto parts, telecommunications products, plastic buttons etc.
