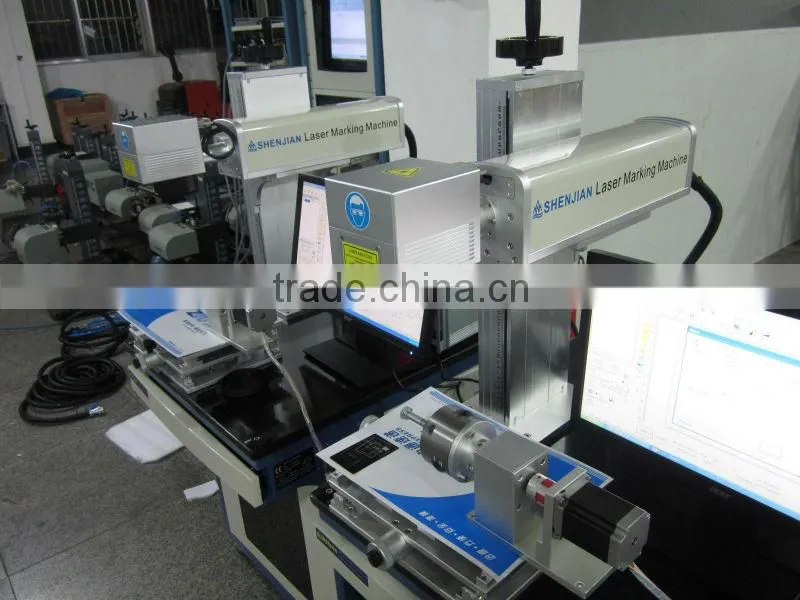

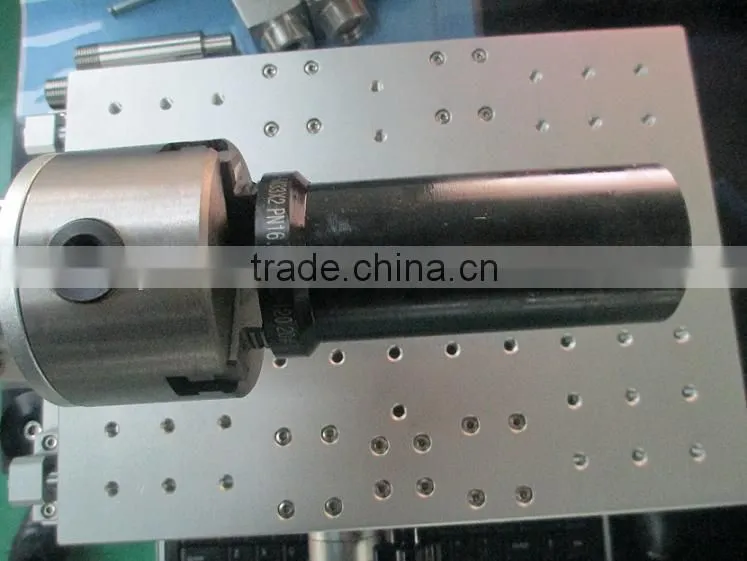

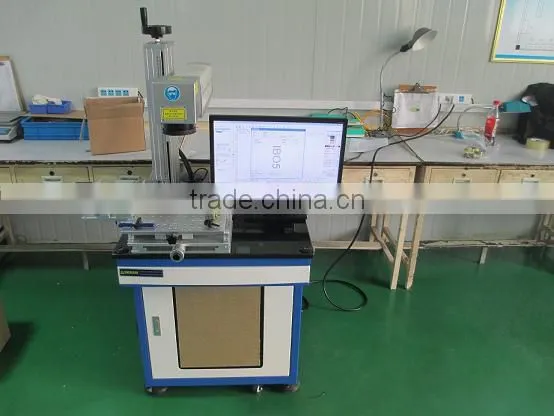

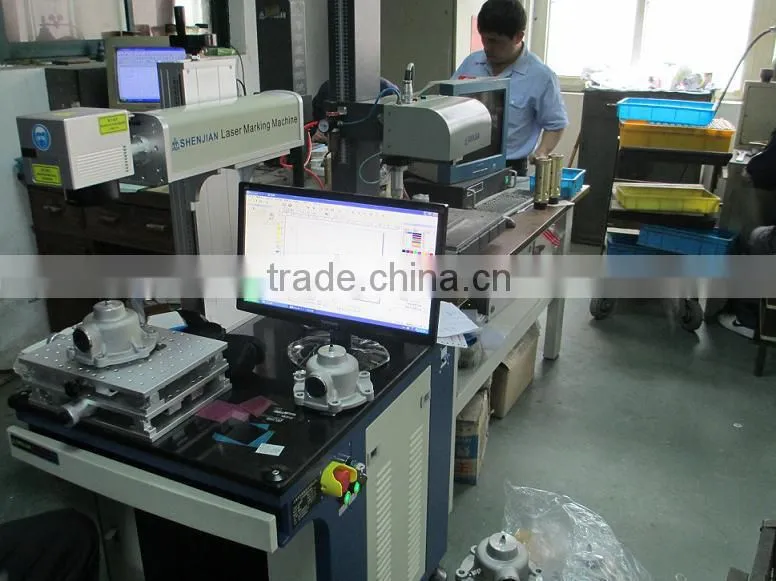

Help Center10W/20W Fiber Laser Marking Machine With Rotation Chuck
Related Products
-
the Dot Pneumatic Marking Machine for HardwareUS$ 2,300 - 2,800MOQ: 1 Set -
10W/20W Fiber Laser Marking MachineUS$ 8,000 - 11,000MOQ: 1 Set
-
Metal Laser Marking Machine With CEUS$ 12,000 - 15,000MOQ: 1 Set
-
Metal Electric Etching MachineUS$ 250 - 350MOQ: 1 Case
-
Electric Etching MachineUS$ 250 - 350MOQ: 1 Case
Fiber Laser Marking machine: 10W/20W/30
Product Features:
- Imported fiber laser generator, air cooling
- Imported isolator, increase laser service life and stability
- High laser beam quality;TEM00 Mode, high electricity-laser exchange ratio
- Low power consuming, maintenance free, long service life, low running cost
- Compact structure, space-saving, suitable for worse condition
- Recommended for precise marking
Application:
1. Ink and paint; phone battery labels, panels, phone key-press, small daily necessities ,accessories and so on.
2. Ceramics, EP materials; marking of electronic component package, IC, etc.
3. Plastic products; mark device shell, electronic products, LOGO, and other numerical orders
4. Metal and its surface; Stainless steel, copper, aluminum and electroplating; used in marking hardware, daily necessities, electric cladding, Phone case etc.
5. Keyboard and keystoke; Fine Marking of keyboard and keystoke.
Fiber laser marking machine technical parameter:
Laser power |
10W |
Wavelength |
1064um |
Beam quality |
m2 <1.2 |
Marking scope |
110×110 (optional) |
Marking speed |
≤10000mm/s |
Marking depth |
≤0.2mm(adjustable to materials) |
Minimum line width |
0.01-0.1mm |
Min. character |
0.15mm |
Repeat precision |
±0.002mm |
Power supply |
220V±10% 50Hz |
Input power |
≤500W |
Cooling style |
air cooling system |
Working temperature |
10°C--35°C |
Laser module life |
>100000h |
Outer Dimension |
620×1020×1360mm |
