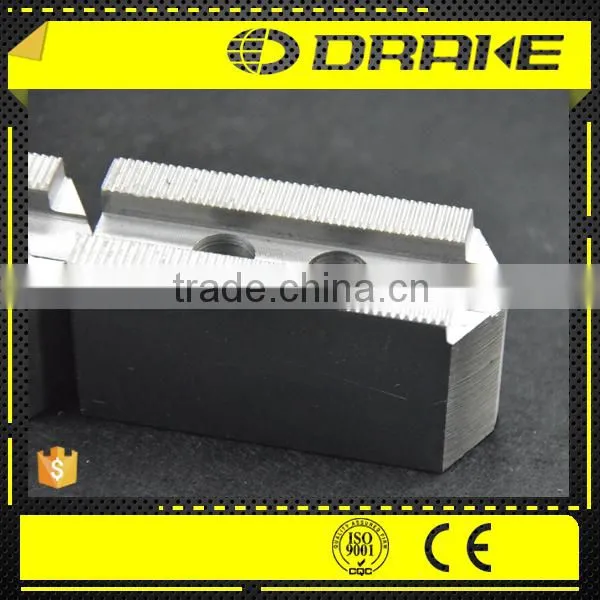

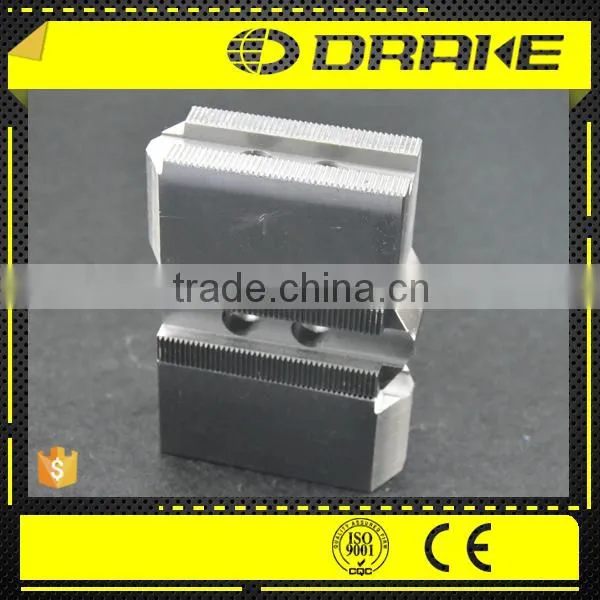

Soft Clamp Jaws for lathe power chuck used on Precision CNC Machining Services
clamp lathe soft top jawsclamp lathe soft top jawsclamp lathe soft top jawsclamp lathe soft top jawsclamp lathe soft top jaws
There are three questions to answer to aid the correct choice of power chuck:
1. Type and model of CNC lathe.
2. Length of workpiece?
3. Outer diameter of workpiece?
4. Processing requirement?
Szie Parameters
| Model/Spec. |
C-1 |
C-2 |
C-3 |
C-4 |
C-5 |
C-6 |
C-7 |
C-8 |
C-9 |
C-10 |
C-11 |
C-12 |
C-13 |
Serration Pitch |
3-jaw Weight (kg) |
| HC04 | 53 | 23 | 23 | 10 | 5 | 9 | 14 | 30 | 14 | 9 | 14 | M8 | 3 | 1.5×60° | 0.45 |
| HC05 | 62 | 25 | 30 | 10 | 5 | 9 | 14 | 39 | 14 | 9 | 21 | M8 | 5 | 1.5×60° | 0.7 |
| HC06 | 73 | 31 | 36 | 12 | 5 | 15 | 20 | 38 | 17 | 11 | 21 | M10 | 14 | 1.5×60° | 1.5 |
| HC08 | 95 | 35 | 37 | 14 | 5 | 24 | 25 | 46 | 19 | 13 | 22 | M12 | 16 | 1.5×60° | 2.4 |
| HC10 | 110 | 40 | 42 | 16 | 5 | 30 | 30 | 50 | 19 | 13 | 27 | M12 | 18 | 1.5×60° | 3.7 |
| HC12 | 130 | 50 | 50 | 21 | 5 | 39 | 30 | 61 | 25 | 17 | 33 | M16 | 23 | 1.5×60° | 6.5 |
| HC15 | 165 | 62 | 62 | 22 | 8 | 37 | 43 | 85 | 32 | 21 | 38 | M20 | - | 1.5×60° | 12.5 |
| HC08-1 | 95 | 35 | 37 | 12 | 5 | 24 | 20 | 51 | 17 | 11 | 21 | M10 | 14 | 1.5×60° | 2.4 |
| HC12-1 | 130 | 50 | 50 | 18 | 5 | 39 | 30 | 61 | 23 | 15 | 30 | M14 | 23 | 1.5×60° | 6.6 |
| HC15-1 | 165 | 62 | 62 | 25.5 | 5 | 37 | 43 | 85 | 32 | 21 | 38 | M20 | - | 1.5×60° | 12.5 |
| HC24-1 | 180 | 64 | 70 | 25 | 9 | 40 | 60 | 80 | 32 | 21 | 45 | M20 | - | 3.0×60° | 15.8 |
| HC32-1 | 210 | 74 | 90 | 25 | 9 | 40 | 80 | 90 | 32 | 21 | 65 | M20 | - | 3.0×60° | 29.2 |
NOTE: We can provide all kinds of soft jaws
45#
| Chemical Elements(%) | Mechanical Property (Mpa) | ||||||||
| C | Si | Mn | P | S | Cr | Ni | Cu | Tensile Strength | Yield Strength |
| 0.42~0.50 | 0.17~0.37 | 0.50~0.80 | ≤0.035 | ≤0.035 | ≤0.25 | ≤0.25 | ≤0.25 | ≥600 | ≥355 |
lathe chuck lathe chuck lathe chuck lathe chuck lathe chuck lathe chuck lathe chuck lathe chuck lathe chuck lathe chuak lathe chuck lathe chuck lathe chuck lathe chuck lathe chuck lathe chuck lathe chuck lathe chuck lathe chuck lathe chuck lathe chuck lathe chuck lathe chuck lathe chuck lathe chuck lathe chuck lathe chuck lathe chuck lathe chuck lathe chuck lathe chuck lathe chuck lathe chuck lathe chuck lathe chuck lathe chuck lathe chuck lathe chuckchuck jaw chuck jaw chuck jaw chuck jaw chuck jaw chuck jaw chuck jaw chuck jaw chuck jaw chuck jaw chuck jaw chuck jaw chuck jaw chuck jaw chuck jaw chuck jaw chuck
