Specifications
Capacitive Touch Screen 5.0''Sirf Atlas V 4GB wince 6.0
AVIN+GPS+Bluetooth
back camera as DVR
Newest in 2013
HuaFeng Industrial HK Limited(Subsidiary company: Shenzhen Hualilong Automotive Electronics Technology) - a high-tech company specialized in GPS navigation devices and MID. Our registered trademark - Eroda - is a first brand in the GPS field in mainland China, and has been awarded “2010 Customer's Favorite Automotive GPS Navigation Brand” issued by the China Auto Fitting Industry Federation.
Our 32 engineers, who have worked for renowned companies such as Huawei, are ready to handle your OEM requirements. Utilizing high-/low- temperature, GPS antenna testers, an aging test workshop and a dust-free workshop, we can complete a customized gps for you in just two week. That's why Molex, Tyco, Foxconn, Quanta, China Unicom, China Mobile and ZTE all trust our strong R&D capabilities, as do other buyers in Europe, the US, and Southeast Asia.

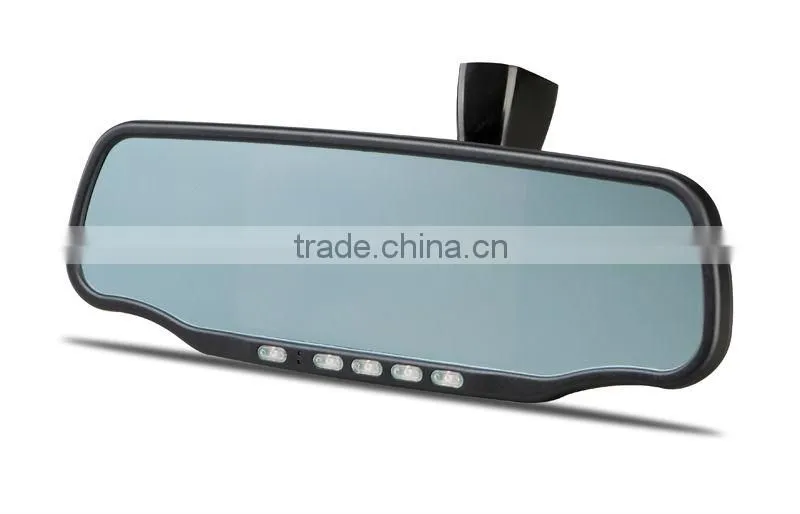

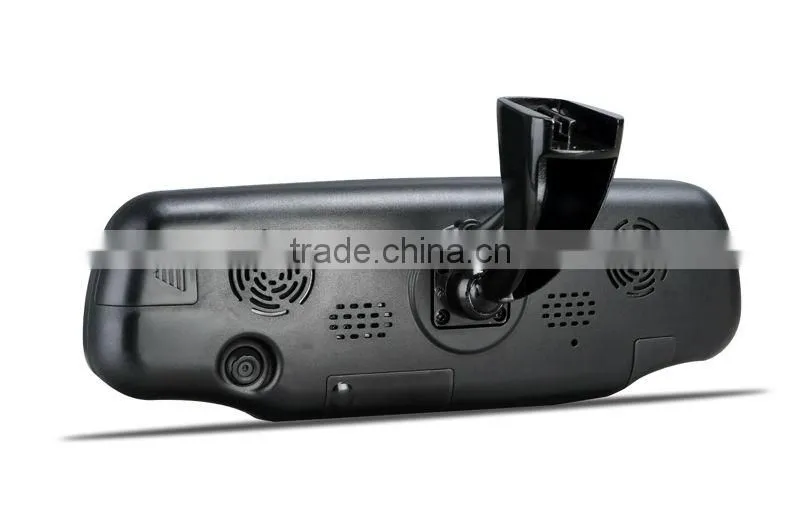

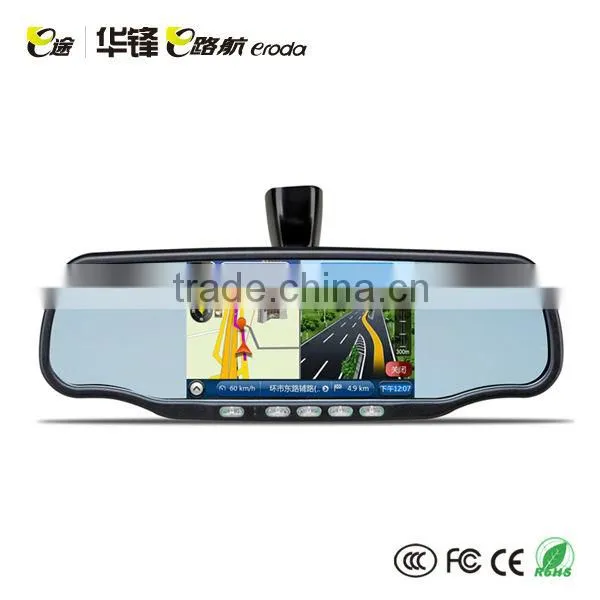

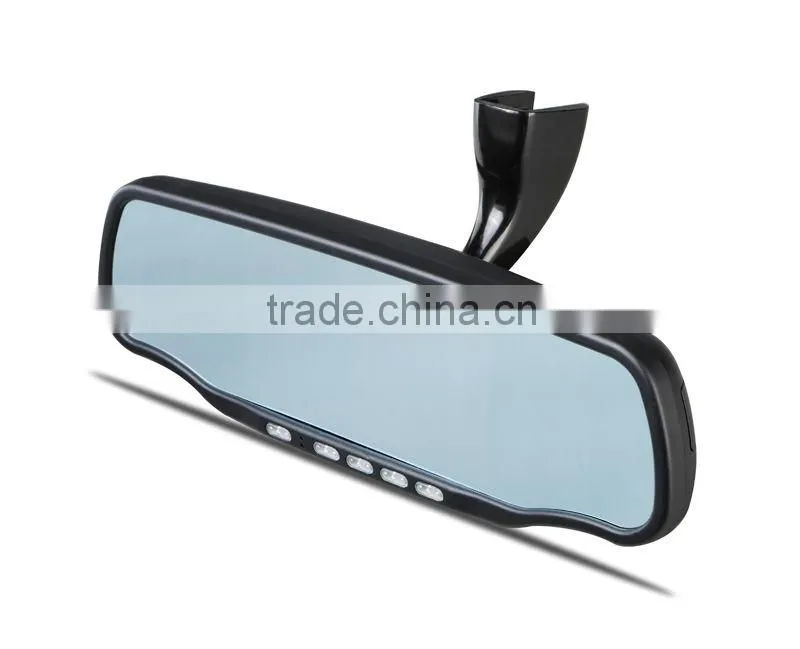

2013 New Arrival ! Rear View Mirror Device +GPS + Car DVR+blutooth+AVIN
It is a professional Rear View Mirror Device, which has the vehicle specific mounts for replacing with original mirror. It can provide the function of GPS navigation, Digital Video Recorder, Speed Radar Detection, Parking Sensors, Parking Video System, Bluetooth for Handfree, Multimedia… to the driver.
1. GPS Navigation, it can guide you how to go to destinations.
2. Video Recorder, it can be witnessed in real time to traffic accidents, and provide video and audio evidence.
3. Speed Radar Detector, the built-in radar detector module detects and warns speed radar.
4. Parking Sensor and Video, it can support the 4_channels parking sensors and the camera when you are reversing your car.
5. Bluetooth, you can use the mobilephone through handfree communication when you are driving.
[Hardware of Main Board]:
CPU |
ARM11 |
600MHz |
Memory |
NAND flash |
4GB |
SDRAM |
128 MB |
|
GPS Receiver |
GPS Module |
High sensitivity |
Antenna |
Internal Antenna |
Embedded Antenna |
Display |
Color TFT |
5'' TFT, 800*480, Landscape |
Power |
Supply DC Voltage |
12V ~24V |
Power |
12V, 1A |
|
Input/Output |
Touch Panel |
Multi-touch capacitive touch screen |
Speaker |
Dual channel speaker. 1.5W |
|
Micro Card Slot |
Capacity up to 32 GB, storage maps and data |
|
TF Card Slot |
Support 4~32GB,storage recorded video |
|
Micphone |
Use to record and bluetooth. |
[Specification]:
Feature |
Note |
GPS navigation |
Wince 6.0 Operation System. High sensitive GPS signal received ability. Support most navigation map in worldwise. |
Digital Video Recorder |
1. Support high resolution. HD 720P(1280*720) 2. Support for automatic recording 3. Support power-down to save 4. Support the cycle of coverage video 5. Storage type: support TF card from 4GB to 32GB 6. Video resolution: HD720P or VGA 7. Video speed: 30FPS 8. Real-time and number of overlay video, don’t lose any video in each second. 9. Video and sound recording synchronization/ video recording/ sound recording 10. It can lock the current video, to avoid coverage |
Radar detector(Optional)! |
1. High sensitive radar receiver with latest VCO technology. 2. Provide full band detection. Such as X band, K band, Ka band, Ku band .Laser. 3. Mute can be setted in software. 4. Can be used with the fixed camera warmed. |
Parking Camera |
1. Photosensitive components 1/4-inch color, CMOS, 2. Pixel 628X582, resolution of 380TV lines 3. The illumination 3LUX (infrared light at 0 Lux) 4. Lens 2.8mm 5. Standard PAL / NTSC 6. RCA video output interfaces 7. Angle 170 degrees 8. 0-5 meters night vision distance 9. With the line of distance 10. Waterproof |
Parking Sensor |
1, 1 control box, 4 sensors, power line and signal line 2, Working current: ≤100 mA Max Power: ≤4W Ultrasonic frequency: 40KHz Alarming volume: ≥85dB Alarming distance: 0.2~3m 3, Alarmed by buzzer, or alarmed by speaked through woman’s voice. 4, Distance is displayed by LED. 5, Direction is tiped by LED. |
Blue tooth |
CSR Blue tooth provides for data and voice communications 1. Operating Frequency Band 2.4GHz -2.48GHz unlicensed ISM band 2.Bluetooth Specification V2.0 |
FM Transmitting |
From 87 to 108MHz. <10 Meter |
Music |
Audio Format: WAV, MP3, WMA |
Movie |
Video Format: AVI, MP4, MPG, WMV, 3GP |
Picture view |
Photo Format: JPG, GIF, BMP, PNG |
E-book |
Text Format: TXT, |
Game |
Support |
Flash |
Support! |
