Specifications
CE/ISO certification HDPE complete tube production machine1. Pipe diameter:20-630mm
2. High output
YAHUA HDPE complete tube production machines
HDPE complete tube production machines description:
PVC plastic pipe production line is mainly used in the manufacture of PVC pipes with various diameters and wall thickness in the aspects such as the agricultural and construction etc.
HDPE complete tube production machines flow:
PVC powder + additive → mixing → spring feeding → twin screw extruder → mould and calibrator → vacuum forming machine → hauloff machine → cutting machine → discharging rack
HDPE complete tube production machines parameters:
| Model of Extruder | SJSZ-51*105 | SJSZ-55*110 | SJSZ-65*132 | SJSZ-80*156 |
| Max.Pipe Diameter(mm) | Φ75 | Φ110 | Φ200 | Φ400 |
| Output(kg/h) | 50-100 | 80-150 | 140-250 | 200-300 |
| Drawing Model | Caterpiller Haul-off | Caterpiller Haul-off | Caterpiller Haul-off | Caterpiller Haul-off |
| Hauling Speed(m/min) | 1-6 | 1-5 | 0.5-4 | 0.5-4 |
| Calibrating Way | Vacuum Calibrating | Vacuum Calibrating | Vacuum Calibrating | Vacuum Calibrating |
| Cooling Way | Water Spraying | Water Spraying | Water Spraying | Water Spraying |
| Cooling Length(mm) | 6000 | 6000 | 10000 | 12000 |
| Cutting Model | Disk saw cutter | Planetary saw cutter | Planetary saw cutter | Planetary saw cutter |
| Cutting Power(kw) | 1.1 | 1.5 | 2.2 | 3 |
| Weight(kg) | 6000 | 7000 | 7500 | 9000 |
| Diemension(L*W*H)m | 16*2.2*1.9 | 17*2*2.7 | 18*2.2*2.9 | 25*2.5*3 |
pictures:

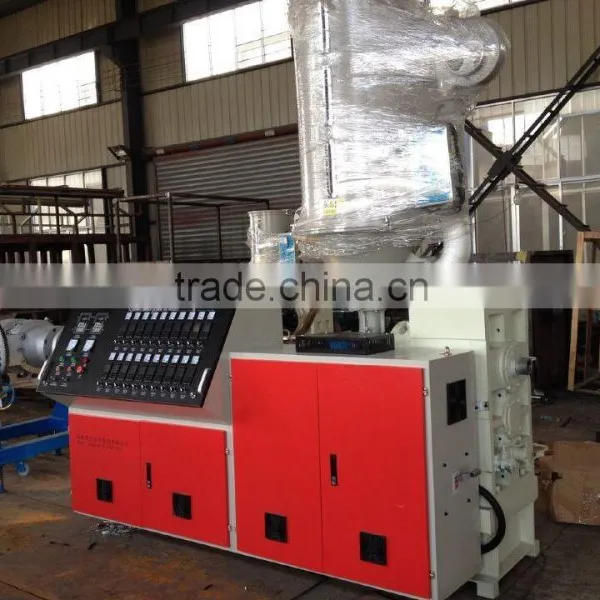

1.extruder
2.mould
3.vacuum calibration tank
4.haul off and cutter
5.stacker
S
If you are interested in our YAHUA HDPE complete tube production machines ,please feel free to contact us.
Of course, welcome to visit our company!
