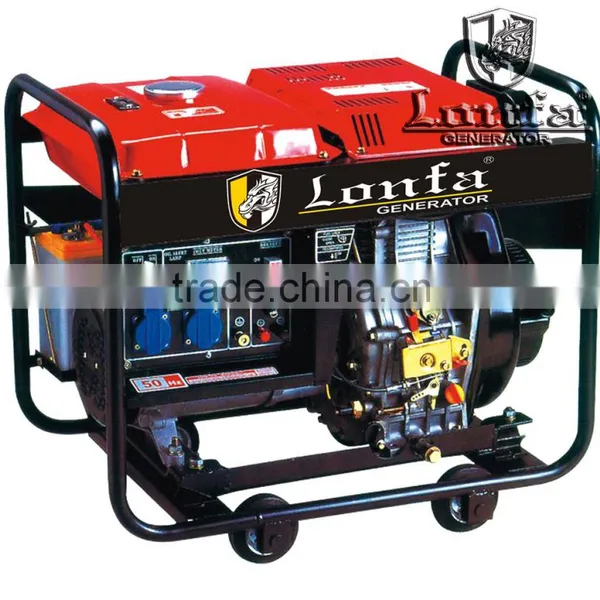

100%Copper Basic Open Type 5kVA Diesel Generator
US$ 359 - 379
MOQ: 50 Sets
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
LONFA,ANDITIGER, ANDI, ELEFUJI, ELEMAX
Model Number:
LF3800/5800DCE-C
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
5kw Silent Diesel Generator Price, 5000w Honda Diesel Generator Set for Sale, 220v Generator Diesel Silent SmallUS$ 460 - 540MOQ: 50 Sets -
4KVA Kama Diesel Generator for Ethiopia Air Cooled Open Diesel GeneratorUS$ 257 - 362MOQ: 50 Sets
-
12kVA Cummins Engine Generator Set for EgyptUS$ 4,250 - 4,550MOQ: 10 Sets
-
10KVA 3 Phase Silent Portable Diesel Generator Commercial Diesel Generator Quality ChoiceUS$ 880 - 980MOQ: 10 Sets
-
100% Copper Wire Small Diesel Generator Open Type, 3kw 5kw Portable Diesel Generator, 178f Diesel Engine GeneratorUS$ 345 - 388MOQ: 50 Sets
Place of Origin
Zhejiang, China
Brand Name
LONFA,ANDITIGER, ANDI, ELEFUJI, ELEMAX
Model Number
LF3800/5800DCE-C
Output Type
AC Single Phase
Speed
3600rpm
Frequency
50/60Hz
Rated Voltage
110/120/220/230/240/380V

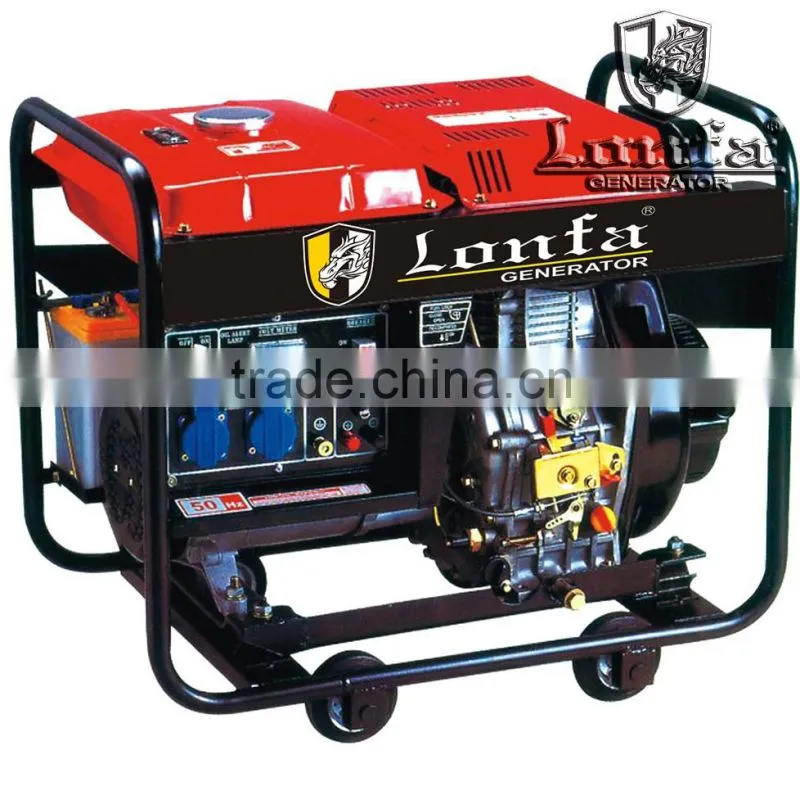

100%Copper Basic Open Type 5kVA Diesel Generator
| ITEM | AD6800DCE | AD7800DCE | |
| Generator | Type | Revolving Magnetic Field, Self-exciting, 2 Poles, Single-phase(or 3-phase) | |
| Rated Frequency(HZ) | 50/60 | ||
| Rated AC Output(KW) | 4.2/4.6 | 5.0/5.5 | |
| Max. AC Output(KW) | 4.6/5.0 | 5.5/6.0 | |
| Voltage(V) | 110, 115, 120; 220, 230, 240; 110/220, 115/230, 120/240, (Single Phase)380, 400, 380/220, 400/230(3-Phase) | ||
| Voltage Regulator | Auto Regulating System | ||
| Power Factor | 1.0(Single phase) | ||
| Engine | Model | DV186 | DV186A |
| Type | Air-cooled, Single-cylinder, 4-stroke, Direct-injection, Diesel Engine | ||
| Bore× Stroke(mm) | 86× 70 | 86× 72 | |
| Displacement(cc) | 406 | 418 | |
| Max Power | 9.4/3600 | 10.0/3600 | |
| Recommended Fuel | Light Diesel | ||
| Fuel tank capacity(L) | 12.5 | ||
| Engine Oil capacity(L) | 1.65 | 1.65 | |
| Lube Oil | SAE 10-30W | ||
| Start System | Recoil or Electric start | ||
| Set | Operating Hour for 1Tank Fuel(Hrs) | 9 | 7 |
| Noise level(7m)dB(A) | 82-84 | ||
| Packing Dimension(L× W× H)mm | 755× 490× 605 | 755× 490× 605 | |
| Gross Weight/Net weight(kg) | 92/90 | 97/95 | |
