Home > Industrial Equipment & Components > Engine & Part > Engine > Small 4-stroke Diesel Engine (AD186F/FA)

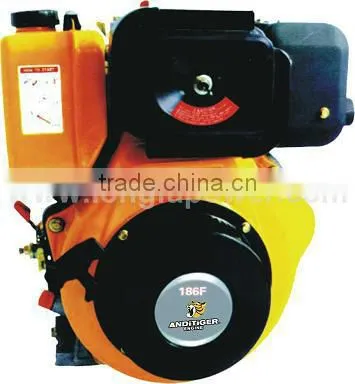

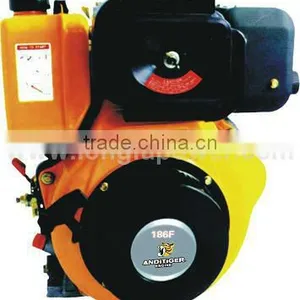

Small 4-stroke Diesel Engine (AD186F/FA)
US$ 189.5 - 200
MOQ: 100 Sets
Key Specifications
Get Latest Price
Usage:
Other, Boats and Automobiles
Fuel:
Diesel
Stroke:
4 Stroke
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Portable Diesel Engine (AD178)US$ 189.5 - 195MOQ: 100 Sets -
Diesel Engine(AD178F/FA)NegotiableMOQ: 100 Sets
-
9 HP Small Diesel Engine With CE SONCAPNegotiableMOQ: 100 Sets
-
Diesel Engine(AD170F)NegotiableMOQ: 100 Sets
-
High Quality Small Diesel Engine (LF170F) With CE SoncapUS$ 130 - 135MOQ: 50 Sets
Usage
Other, Boats and Automobiles
Fuel
Diesel
Stroke
4 Stroke
Cylinder
Single Cylinder
Cold Style
Other, Air-cooled
Start
Electric Start
Place of Origin
Zhejiang, China
Brand Name
ANDI,ANDITIGER,ELEFUJI,OEM
Model Number
AD186F/FA
Weight
26KG
Certification
CE,SONCAP,CIQ ,ISO9001
Warranty
12Months quality guarantee
After-sales Service Provided
No overseas service provided
Features and technical parameters
1.Model AD186F/FA
2.Type: Single-cylinder, 4-stroke air-cooled diesel engine
3.Combustion system :Direct injection
4.Bore x stroke(mm) 86x70/86x72
5.Displacement(cc) 406/418
6.Engine speed(rpm) 3000 3600
7.Maximum output(hp) 9 10.0
8.Continuous output(hp) 8.2 / 9.0
9.Power take off Crankshaft or camshaft(camshaft PTO rpm is 1/2)
10.Starting system :Recoil or electric(optional)
11.Fuel tank capacity(L) :5.5
12.Lube oil capacity(L) :1.65
13.Dimensions LxWxH(mm) :480x420x530
14.Net weight(recoil)(kg) :48
15.Net weight(electric)(kg) :53
16.Fuel type :0#, -10#, -20#
17.Lube oil type :CD Grade or SAE 10W-30, SAE 15W-40
18.Option :Oil bath air cleaner
2.Type: Single-cylinder, 4-stroke air-cooled diesel engine
3.Combustion system :Direct injection
4.Bore x stroke(mm) 86x70/86x72
5.Displacement(cc) 406/418
6.Engine speed(rpm) 3000 3600
7.Maximum output(hp) 9 10.0
8.Continuous output(hp) 8.2 / 9.0
9.Power take off Crankshaft or camshaft(camshaft PTO rpm is 1/2)
10.Starting system :Recoil or electric(optional)
11.Fuel tank capacity(L) :5.5
12.Lube oil capacity(L) :1.65
13.Dimensions LxWxH(mm) :480x420x530
14.Net weight(recoil)(kg) :48
15.Net weight(electric)(kg) :53
16.Fuel type :0#, -10#, -20#
17.Lube oil type :CD Grade or SAE 10W-30, SAE 15W-40
18.Option :Oil bath air cleaner
Approved certifications
About us
Send Inquiry to This Supplier
Business Type
Manufacturer
Year Established
2008
Factory Size
3,000-5,000 square meters
Total Employees
101 - 200 People
