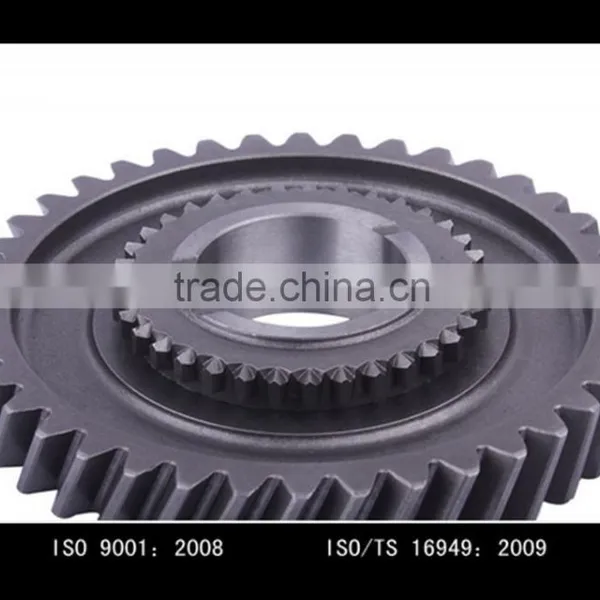

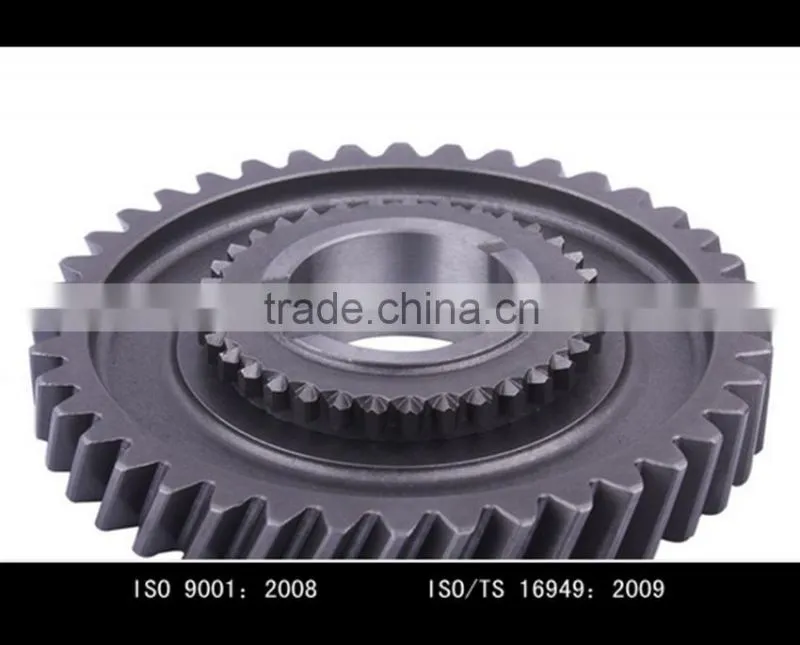

Surface Treatment Cylindrical Gear
US$ 1 - 100
MOQ: 100 Pieces
Key Specifications
Get Latest Price
Material:
Steel
Processing:
Other, Hobbing, Forging
Place of Origin:
Zhejiang, China
Payment & Shipping
Payment Methods:
Port of Shipment:
NINGBO/SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Gray Cast Iron Transmission PartUS$ 1 - 100MOQ: 100 Pieces -
Spur Shape and Steel Material Bevel GearUS$ 3,000 - 5,500MOQ: 300 Pieces
-
Good Quality Bevel Gear Ring for Gear BoxUS$ 3,000 - 5,500MOQ: 300 Pieces
-
Perfect Metal Gear With Durable Service Life on GearboxUS$ 5 - 30MOQ: 300 Pieces
-
Good Price of Spur GearsUS$ 5 - 50MOQ: 300 Pieces
Material
Steel
Processing
Other, Hobbing, Forging
Place of Origin
Zhejiang, China
Surface treatment cylindrical gear from china gear manufacturer
| MAIN PARAMETER | SIZE (mm) |
| Module | 3.5 |
| Teeth | 40 |
| Pressure Angle | 20° |
| Tip Diameter | Φ162.95 |
| Net Weight | 2350g |
| Material | 20CrMnTi |
| Surface Finish | Carburizing treatment |
| Hardness | HRC 58~64 |
| Tooth Accuracy | ISO/GB Class 7 |
| MATERIAL | Carbon Steel | SAE1020, SAE1045, Cr12, 40Cr, Y15Pb, 1214L. | |||
| Alloy Steel | 20CrMnTi, 16MnCr5, 20CrMnMo, 41CrMo, 17CrNiMo5... | ||||
| Brass/Bronze | HPb59-1, H70, CuZn39Pb2, CuZn40Pb2,C38000, CuZn40 | ||||
| MACHINING PROCESS | Gear Hobbing, Gear Milling, Gear Shaping, Gear Broaching, Gear Shaving, Gear Grinding and Gear Lapping | ||||
| MODULE | 1.0, 1.25, 1.5, 1.75, 2.0, 2.25, 2.5....8.0 | ||||
| TOLERANCE CONTROL | Outer Diameter: ±0.005 mm | Length Dimension:±0.05 mm | |||
| TEETH ACCURACY | DIN Class 4, ISO/GB Class 4, AGMA Class 13, JIS Class 0 | ||||
| HEAT TREATMENT | Quenching & Tempering, Carburizing & Quenching, High-frequency Hardening, Carbonitriding... | ||||
| SURFACE TREATMENT | Blacking, Polishing, Anodization, Chrome plating, Zinc plating, Nickel plating... | ||||
