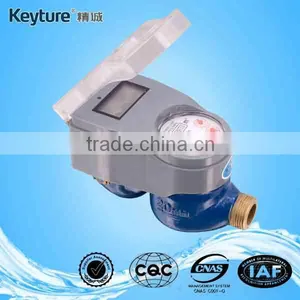

RF Prepaid Water Meter

RF Prepaid Water Meter thumbnail-1
RF Prepaid Water Meter photo-1
Negotiable MOQ: 10 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
Keyture
Model Number:
LXSGZ-15E~25E RF Prepaid Water Meter
Contact Supplier Request Quote Chat Now
Ningbo Jingcheng Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo Port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name Keyture
Model Number LXSGZ-15E~25E RF Prepaid Water Meter

Application:

Radio frequency intelligent water meter is the new measuring instrument employing the microprocessor to realize water collection, processing, displaying and reserving. It is a kind of prepaid and smart water meter. Compared with traditional way, it can control user's overspend by prepaying for an RF card.



Features

1.the material of meter body can be iron and brass; it has both cold water meter and hot water meter(LXSGZR-15ES~25ES)

2.using pre-paid way to achieve the new management mode of "purchase first, the use"

3.show the different level price of the water, one card can be used to several meter.

4.double reading display: mechanical and digital meter reading

5.the unique battery protection

6.stable performance, wide application.

7.low power consumption, long life time.

8.Electronic part is vacuum sealed.

9.Anti-jamming and resist exterior magnet interference.



Working Conditions:

Water temperature (cold water meter): ≤40 °C

Water temperature (hot water meter): ≤90 °C

Water pressure: ≤1.0 Mpa



Main technical data:

Item No

Size

Flow turndown R



Max Flow Q4



Nominal Flow Q3



Transitional Flow Q2



Min Flow Q1



Min Reading

Max Reading




mm

Q3/ Q1

m³/h

L/h

m³



LXSGZ -15ES

LXSGZR-15ES

15

80

3.125

2.5

50

31.25

0.00005

99999



100

40

25



125

32

20



160

25

15.62



LXSGZ-20ES

LXSGZR-20ES

20

80

5

4

80

50



100

64

40



125

51.2

32



160

40

25



LXSGZ-25ES

LXSGZR-25ES

25

80

7.875

6.3

126

78.75



100

100.8

63



125

80.64

50.4



160

63

39.37





Maximum Permissible Error:

1. in the lower zone from qmin inclusive up to but excluding qt is ±5%;

2. in the upper zone from qt inclusive up to and including qs is ±2% (hot water meter is ±3%).



Compliance with standard

Technical data conforms to class B of the ISO 4064 standard.
