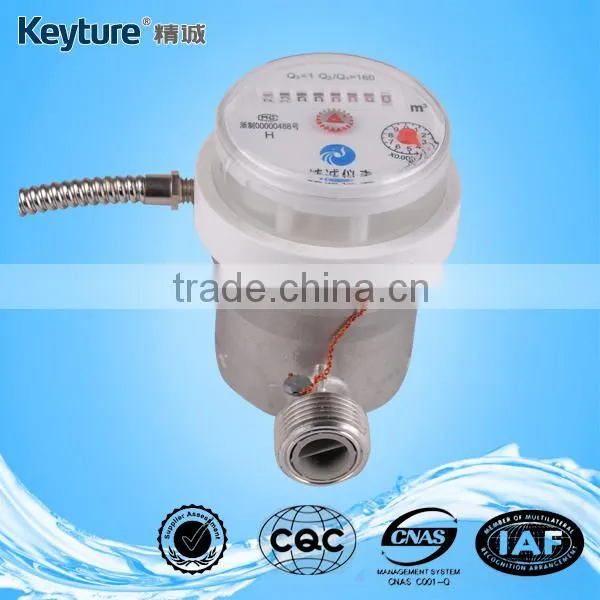

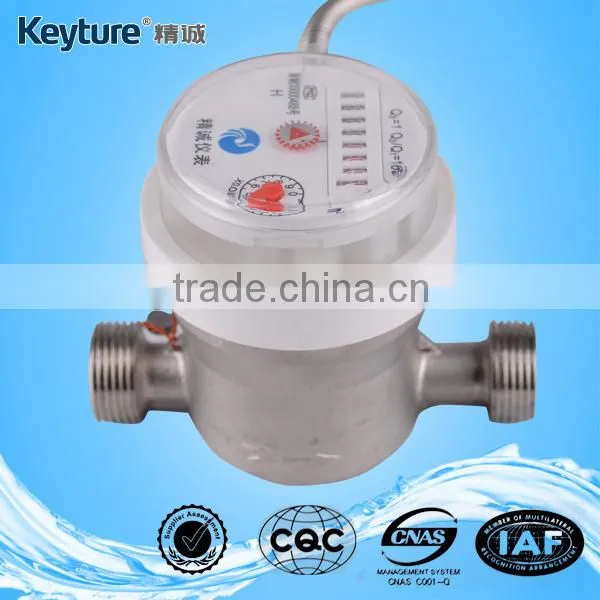

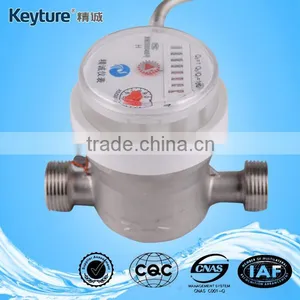

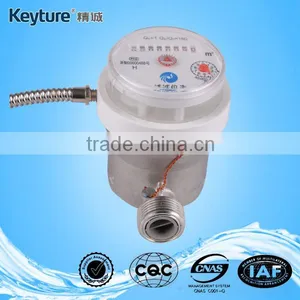

Help CenterWired Remote Reading Drinkable Purified Water Meter
Related Products
-
Direct Reading Electronic Remote Dry Dial Water MeterNegotiableMOQ: 10 Pieces -
Direct Reading Electronic Remote Liquid Sealed Water MeterNegotiableMOQ: 1
-
Wireless Remote Reading Water MeterNegotiableMOQ: 10 Pieces
-
Direct Reading Remote Valve Control Water Meter(Green Color)NegotiableMOQ: 10 Pieces
-
Wired Remote Reading Valve Control AMR Water Meter(Red Color)NegotiableMOQ: 10 Pieces
Application:
Measuring , memorizing and displaying the volume of cold water passing through the pipeline.
Features:
1.Adopting volumetric rotary piston of measurement. Magnetic drive and resistance to exterior magnet interference.
2.Register separated from water to keep a clear reading in long-term service. Materials comply with hygienic standard of potable water.
3. Small start-up flow rate, high precision. Especially suit to the area of good water quality.
Main Technical Data:
Temperature grade: T30
Pressure grade:MAP10
Pressure loss grade: Δ P63
Upstream disturbance grade: U5
Downstream disturbance grade: D0
Maximum Permissible Error:
a) In the lower zone from Q1 inclusive up to but excluding Q2 is ±5%
b) In the upper zone from Q2 inclusive up to and including Q4 is ±2%
Flow Technical Data:
|
Item No |
Size |
R Flow turndown |
Q4 Max Flow |
Q3 Nominal Flow |
Q2 Transitional Flow |
Q1 Min Flow |
Min Reading |
Max Reading |
mm |
Q3/ Q1 |
m³/h |
L/h |
m³ |
||||
LXHY-8E |
8 |
160 |
1.25 |
1 |
10 |
6.25 |
0.00005 |
9999 |
200 |
8 |
5 |
||||||
ELECTRIC TECHNICAL DATA
|
Temperature |
Nominal Pressure |
Each pulse signal water volume
|
0.1°C~55°C |
5V~12V |
1L/1pulse |
