Help CenterBT40-FMB SHELL MILL ARBORS/FACE MILL HOLDER
Related Products
-
BT50-FMB Type of SHELL MILL ARBORS/FACE MILL ARBORSUS$ 19 - 48MOQ: 10 Pieces -
ISO7388(JT40)-FMB Type of SHELL MILL ARBORSUS$ 15 - 19MOQ: 10 Pieces
-
ISO7388(JT50)-FMB Type of SHELL MILL ARBORSUS$ 15 - 19MOQ: 10 Pieces
-
BT30-FMA Type of SHELL MILL ARBORSUS$ 13 - 15MOQ: 10 Pieces
-
BT40-FMA Type of SHELL MILL ARBORS/FACE MILL ARBORSUS$ 14 - 19MOQ: 10 Pieces
Specifications
BT40-FMB Shell Mill Arbors/Face Mill Holder1.Material:40Cr steel
2.Run out:0.003mm
3.HRC50,10000rpm
4.Angle tolerance AT3

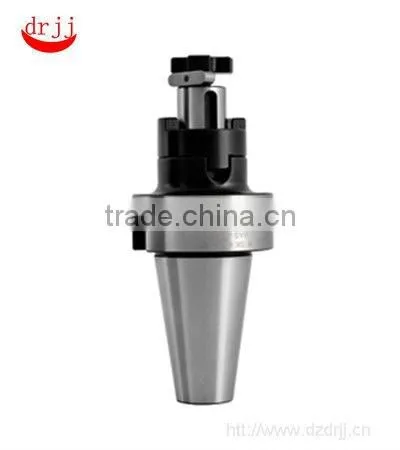

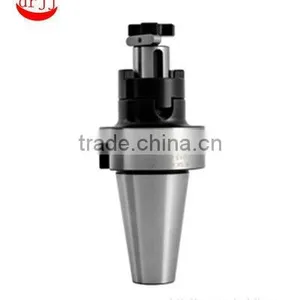

BT40-FMB type of Shell Mill Arbors/Face Mill Holder
1.Material:40Cr steel
2.Run out:0.003mm
3.Hardness:HRC50,
4.Speed: 10000rpm
5.Angle tolerance AT3
6.BT40--FMB22/27/32/40/60
Description:
| Type | L | L1 | L2 | D | d1 | d2 | K1 | K2 | Weight(kgs) |
| BT40-FMB22-45L | 128.4 | 45 | 18 | 48 | 22 | 26 | 4.8 | 10 | 1.45 |
| BT40-FMB22-60L | 143.4 | 60 | 18 | 48 | 22 | 26 | 4.8 | 10 | 1.70 |
| BT40-FMB22-100L | 173.4 | 100 | 18 | 48 | 22 | 26 | 4.8 | 10 | 2.20 |
| BT40-FMB22-150L | 233.4 | 150 | 18 | 48 | 22 | 26 | 4.8 | 10 | 3.1 |
| BT40-FMB22-200L | 283.4 | 200 | 18 | 48 | 22 | 26 | 4.8 | 10 | 3.1 |
| BT40-FMB27-45L | 130.4 | 45 | 20 | 60 | 27 | 31.5 | 5.8 | 12 | 1.60 |
| BT40-FMB27-60L | 145.4 | 60 | 20 | 60 | 27 | 31.5 | 5.8 | 12 | 2.00 |
| BT40-FMB27-90L | 175.4 | 90 | 20 | 60 | 27 | 31.5 | 5.8 | 12 | 2.30 |
| BT40-FMB27-105L | 190.4 | 105 | 20 | 60 | 27 | 31.5 | 5.8 | 12 | 2.50 |
| BT40-FMB32-45L | 132.4 | 45 | 22 | 78 | 32 | 41 | 6.8 | 14 | 1.75 |
| BT40-FMB32-60L | 147.4 | 60 | 22 | 78 | 32 | 41 | 6.8 | 14 | 2.10 |
| BT40-FMB40-60L | 150.4 | 60 | 25 | 80 | 40 | 48 | 8.3 | 16 | 2.80 |
Packing:
Related Products:
BT50 FMB shell mill aborbs,BT30 FMB shell mill aborbs,BT30 FMA shell mill aborbs,BT40 FMA shell mill aborbs,BT50 FMA shell mill aborbs,etc.
Company Profile:
We are a manufacturer established in 2003. Specialized in design, manufacture and marketing of machine tool accessories.
Production includes milling chuck series,CNC tool series,collet series,boring heads series,tapping chuck series,pull studs,er nuts,centers,mores taper sleeves,drill chucks,precision tool vises,parallel block series,V-block clamp,etc.
Sales covering the USA,Germany,Britain and regions in South Asia with increasing trust from customers.We are capable of supplying accessories with German standards,Japanese standards,American standards as well as national standards.
Should any of these items be of interest to you,please let us know.We'll be happy to give you details.
