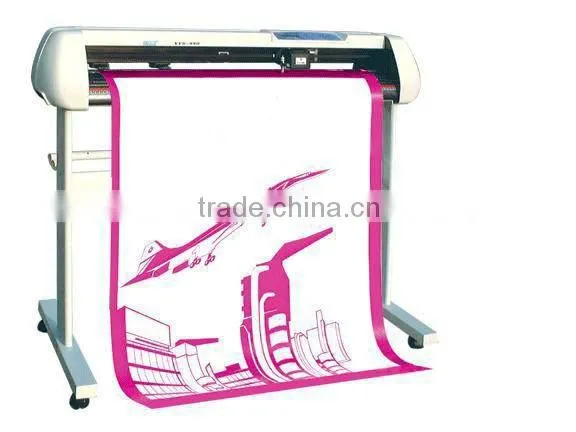

Fast Speed Vinyl Paper Cutting Plotter Made in China TJ1360

Name: Fast Speed Vinyl Paper Cutting Plotter Made in China TJ1360
Brand: tianjiao
SKU: 124351885

US$ 500 - 900 MOQ: 1 Set

Key Specifications

Condition:

New

Type:

Paper Cutting Machine

Computerized:

Yes

Jinan Tian Jiao Machinery Manufacture Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao China

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Type Paper Cutting Machine

Computerized Yes

Place of Origin Shandong, China

Brand Name tianjiao

Model Number TJ1360

Certification CE/FDA

Warranty 1 year warranty

After-sales Service Provided No overseas service provided

Specifications

paper vinyl cutting plotter TJ1360
1.CE certificate
2. small noise, long lifespan
3. emergency stop function
4. high speed

paper vinyl cutting plotter TJ1360
1.CE certificate
2. small noise, long lifespan
3. emergency stop function
4. high speed

Features:

3. High speed, unfailing paper advance.

4. Reverse paper delivery.

5. Large screen Chinese characters LCD.

6. The latest fractionize electro circuit of the USA

7. High quality aluminum alloy roller.

8. Emergency stop function, RAM detection function, repeated output function.

Technique Specification

Performance Model	TJ1360
Width of scribing	1260mm
Max width of the paper	1360mm
Max speed	500mm/s
Pressure of engraving tool	400g
Buffer memory(bit)	4M
State indication	Chinese and English
Change the speed and pressure in the running	can
Interface	Serial-port
Power	AC100/250V
Language of plot	HPGL
Repeated engraving	Yes
Working delicacy	0.0254mm/step
Positioning accuracy	0.1mm
Frame of machine	Yes
Frame of paper	Single rolls
Drive motor	Stepper
File format	DMPL
