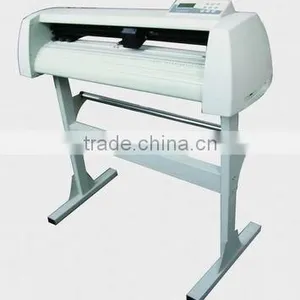

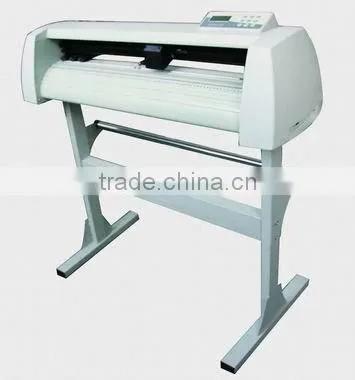

Made in China Sticker Paper Cutting Machine TJ1780

Name: Made in China Sticker Paper Cutting Machine TJ1780
Brand: TIANJIAO
SKU: 124352149

US$ 200 - 500 MOQ: 1 Set

Key Specifications

Type:

Paper Cutting Machine

Computerized:

Yes

Place of Origin:

Shandong, China

Jinan Tian Jiao Machinery Manufacture Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao China

Delivery Detail:

Delivery time depends on order quantity.

Type Paper Cutting Machine

Computerized Yes

Place of Origin Shandong, China

Brand Name TIANJIAO

Model Number TJ1780

Certification CE/FDA

Warranty 1 year warranty

After-sales Service Provided No overseas service provided

Specifications

paper cutting machine TJ1780
1.CE certificate
2.high speed, unfailing paper advance
3.high quality aluminium alloy roller

paper cutting machine TJ1780

1.CE certificate
2.high speed, unfailing paper advance
3.high quality aluminium alloy roller

Features

1. serial paralled interface,large memory, fast offline.

2. softland, small noise, long life of lifespan.

3. high speed, unfailing paper advance.

4. reverse paper delivery.

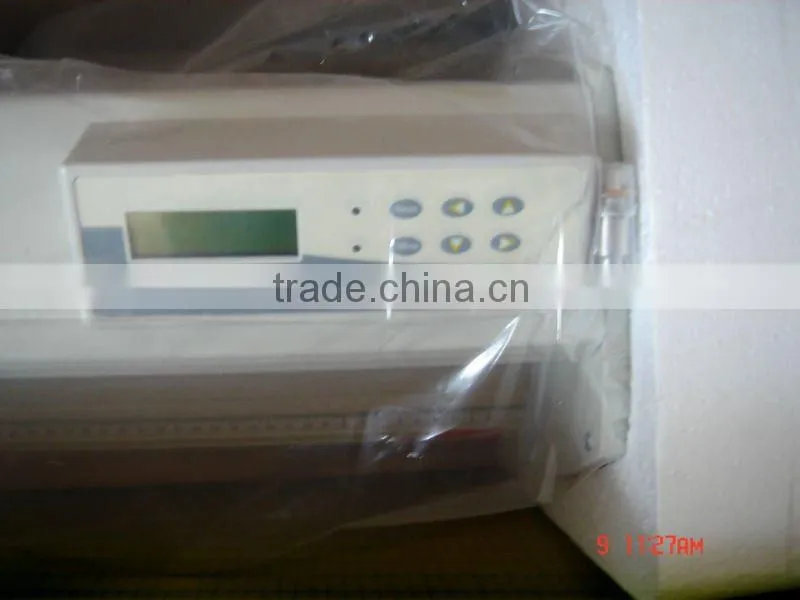

5. large screen Chinese characters LCD.

6. the lastest fractionize electrocircuit of the USA

7. high quality aluminium alloy roller.

8. emergency stop function,RAM detection function, repeated output function.

Technique Specification

Performance Model	TJ720	TJ800	TJ1120	TJ1360	TJ1660	TJ1780
Width of scribing	630mm	700mm	1000mm	1260mm	1550mm	1660mm
Max width of the paper	720mm	800mm	1120mm	1360mm	1660mm	1780mm
Max speed	500mm/s	500mm/s	500mm/s	500mm/s	500mm/s	500mm/s
Pressure of engraving tool	400g	400g	400g	400g	400g	400g
Buffer memory(bit)	4M
State indication	Chinese and English
Change the speed and pressure in the running	can
Interface	Serial-port
Power	AC100/250V
Language of plot	HPGL
Repeated engraving	Yes
Working delicacy	0.0254mm/step
Positoning accuracy	0.1mm
Frame of machine	Yes
Frame of paper	Single rolls
